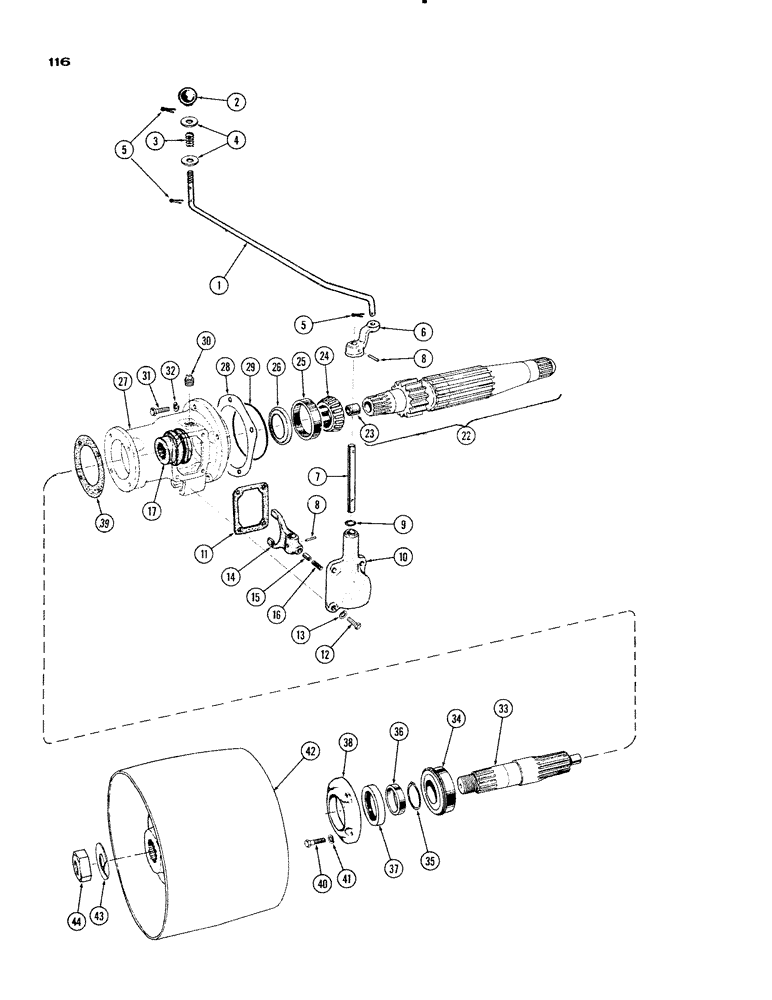

Запчасти Case IH 930-SERIES (116) - BELT PULLEY AND CONTROLS (06) - POWER TRAIN

1

A23674

ROD - pulley clutch control

1шт.

2

A23885

KNOB

- control rod

1шт.

3

A23969

SPRING

- control rod

1шт.

4

195-33

WASHER,1/2"

- spring seat (17/32 x 1-1/16 x 3/32")

2шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

6

A23673

LEVER - control rod

1шт.

7

A10103

SHAFT - fork, control

1шт.

8

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

9

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - shaft (7/16 x 5/8 x 3/32")

1шт.

10

A10100

HOUSING - fork

1шт.

11

A10101

GASKET - fork housing

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Housing Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

A10102

FORK - sleeve control

1шт.

15

A7422

PLUNGER - fork detent

1шт.

16

A7032

SPRING

- detent tension

1шт.

17

A10099

SLEEVE - pulley throw out

1шт.

22

A21315

SHAFT

ASSY - 1st reduction, Includes: Ref. 23

1шт.

23

A27585

BUSHING

- pilot (13/16 x 1 x 1")

1шт.

24

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - bearing, 1st red. shaft

1шт.

25

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, 1st reduction shaft

1шт.

26

A10098

BAFFLE - oil, belt pulley hsg.

1шт.

27

A10090

HOUSING - belt pulley

1шт.

28

A26816

SHIM - housing (.003")

1шт.

28

A10003

SHIM - housing (.005")

1шт.

28

A10004

SHIM - housing (.015")

1шт.

29

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hsg. (4-1/2 x 4-3/4 x 1/8")

1шт.

30

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - hsg. (1/2" P.T., sq. hd.)

1шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

A10093

SHAFT - belt pulley drive

1шт.

34

A10094

BEARING - drive shaft

1шт.

35

A7147

SNAP RING,#177, Ext

Ring, Snap, , bearing #177, Ext

1шт.

36

A10095

SLEEVE - drive shaft

1шт.

37

A10096

SEAL

- oil, drive shaft (2-1/8 x 3 x 1/2")

1шт.

38

A10091

CAP - belt pulley housing

1шт.

39

A10092

GASKET - end cap

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

A21548

PULLEY - belt

1шт.

43

A10097

WASHER - tab, nut lock

1шт.

44

25-1522

NUT - belt pulley ret. (1-3/8" N.C. hex.) Jam, 1 3/8"-12, G5

1шт.
