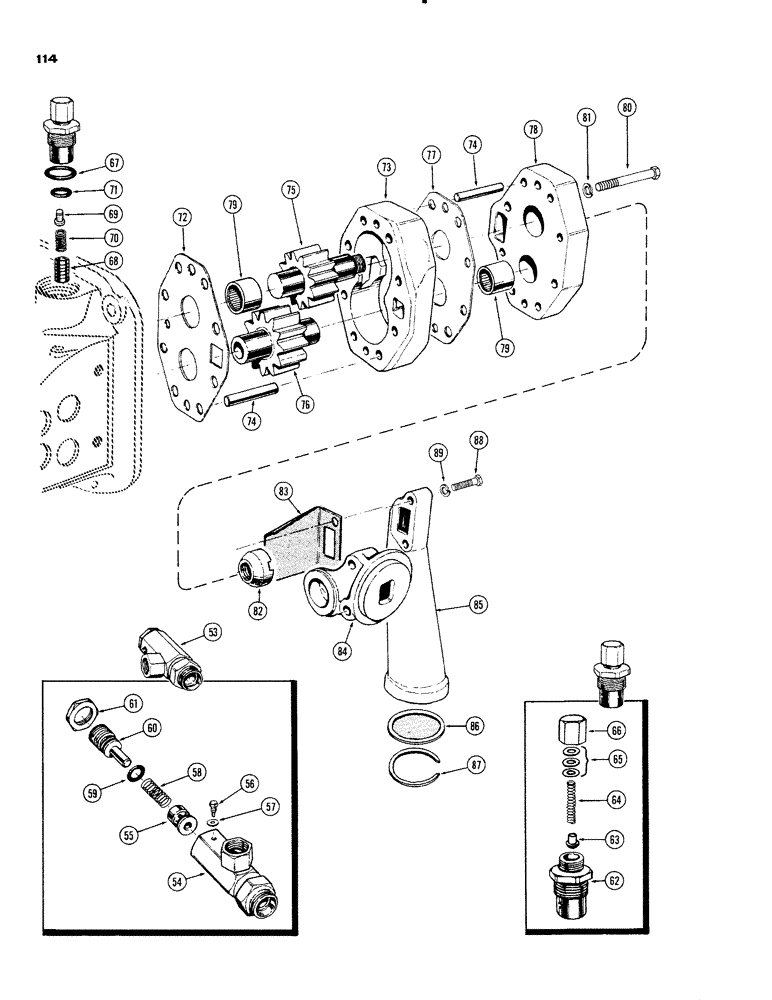

Запчасти Case IH 930-SERIES (114) - A23384 HYDRAULIC PUMP, CONTINUED (06) - POWER TRAIN

A23384

VALVE

PUMP ASSY - hyd., Includes: Ref. 53 - 89 and Ref. 1 - 52 on Fig. 113

1шт.

53

A30885

VALVE

REGULATOR ASSY. - cylinder speed, Includes: Ref. 54 - 61

1шт.

54

A31089

BODY

- swivel

1шт.

55

A31092

PISTON

- cylinder speed

1шт.

56

A31095

SCREW,Hex, #8 - 32 x 15/32"

- piston lock

1шт.

57

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

58

A27452

SPRING

- pressure (10 ga., 1/2" O.D.)

1шт.

59

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - (9/16 x 3/4 x 3/32")

1шт.

60

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW - speed adjusting

1шт.

61

A31094

JAM NUT

- lock, adj. screw (7/8" N.F. hex.)

1шт.

62

A34666

BODY

- relief valve (Replaces A23365)

1шт.

63

A23368

VALVE POPPET

POPPET - relief valve

1шт.

64

A23367

SPRING

- pressure 934 ga., .306" O.D.)

1шт.

65

A23602

X

SHIM - relief valve (.048" brass) (Upon Depletion Order A23371)

1шт.

65

A23371

SHIM

- relief valve (.048" steel)

1шт.

65

A23372

SHIM,.010" Thk

Steel, Relief valve .010" Thk

1шт.

66

A23370

NUT

- relief valve cap

1шт.

67

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - relief valve (1-1/8 x 1-3/8 x 1/8")

1шт.

68

A23366

PISTON

- relief valve pilot

1шт.

69

A24363

STRAINER ASSY.

STRAINER - pilot valve

1шт.

70

A23082

SPRING

- pressure (24 Ga., 1/2" O.D.)

1шт.

71

A23369

O-RING

"O" RING - pilot valve

1шт.

72

A23380

LARGE PLATE

PLATE - wear, rear

1шт.

73

A10335

BODY

- hyd. pump

1шт.

74

A23396

DOWEL,3/8" x 2 1/4"

PIN - body locating (3/8 x 2-1/4")

2шт.

75

A23392

GEAR

- pump drive (lead gear)

1шт.

76

A23389

GEAR

- pump idler (follow gear)

1шт.

77

A23381

LARGE PLATE

PLATE - wear, front

1шт.

78

A23394

COVER - hyd. pump body

1шт.

79

A23378

NEEDLE BEARING,Needle, 25.4mm ID x 31.62mm OD x 25.4mm W

BEARING - needle

4шт.

80

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- pump (3/8 x 3" N.C. hex.)

4шт.

81

92-6

LOCK WASHER,3/8"

4шт.

82

A30889

COUPLING

- pump drive shaft

1шт.

83

A27515

PLATE - oil deflector

1шт.

84

A23397

ELBOW - pump filter

1шт.

85

A26191

ELBOW - pump inlet

1шт.

86

A30890

SCREEN

ASSY. - pump inlet

1шт.

87

A30091

RING, SNAP

RING - snap, screen retaining

1шт.

88

15-668

BOLT (MACHINE)

BOLT - elbow (3/8 x 4-1/4" N.C. hex.)

4шт.

89

92-6

LOCK WASHER,3/8"

4шт.
