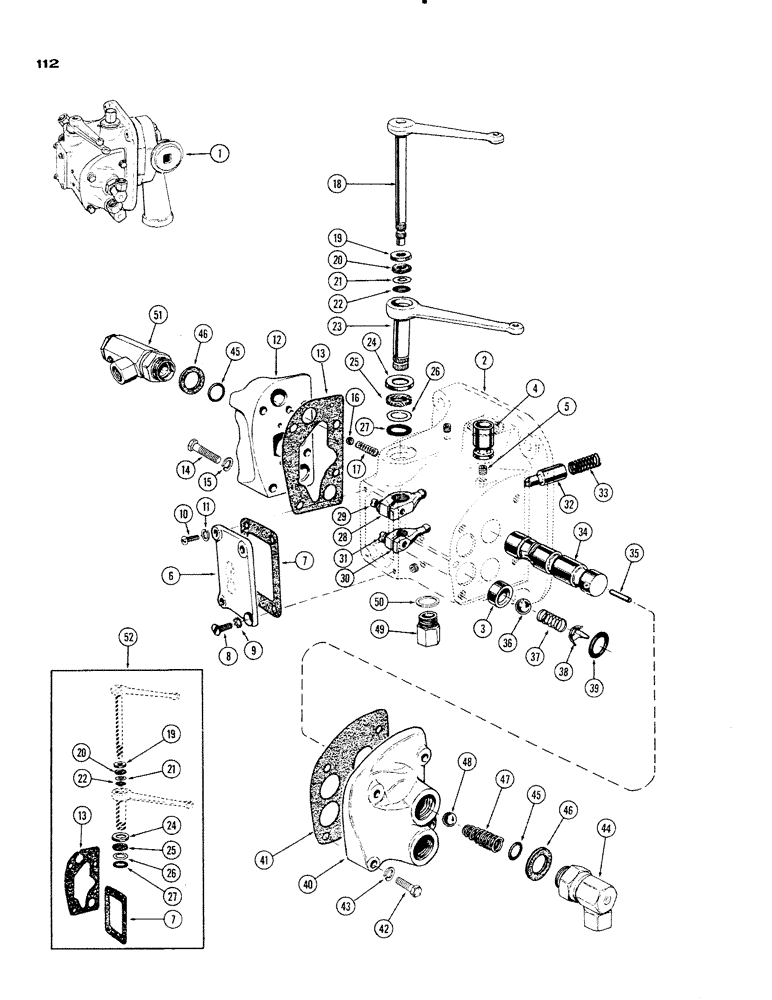

Запчасти Case IH 930-SERIES (112) - A23384 HYDRAULIC PUMP (06) - POWER TRAIN

1

A23384

VALVE

PUMP ASSY - hydraulic, Includes: Ref. 2 - 52 and 53 - 89 on Fig. 114

1шт.

2

A23353

BODY

ASSY - hydraulic valve, Includes: Ref. 3 - 5

1шт.

3

A30869

SEAT

- outlet ball check

4шт.

4

A23354

SLEEVE

- pilot relief valve

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- (1/8" P.T., sckt. hd.)

5шт.

6

A7353

CAP

COVER - valve body

1шт.

7

A30854

GASKET

- cover (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

8

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- cover (1/4 x 3/4" N.C., flat hd.)

1шт.

9

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

10

75-412

SCREW,Rd, 1/4" x 3/4"

- cover (1/4 x 3/4" N.C. rd. hd.)

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

A23395

HEAD - pump, left hand side

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

13

A30855

GASKET

- head (See Ref. 52)

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- head (3/8 x 2-3/4" N.C. hex.)

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

2шт.

17

A23364

SPRING

- relief valve (16 ga., 1/4" O.D.)

2шт.

18

A23387

LEVER

- spool shifter, upper

1шт.

19

A30875

RETAINER

- dust seal (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

20

A30853

WASHER

SEAL - dust (1/2 x 15/16 x 1/4" felt) (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

21

A27409

WASHER

SEAT - dust seal (33/64 x 63/64 x 20 ga.) (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

22

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (1/2 x 11/16 x 3/32") (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

23

A23357

SHAFT

LEVER - spool shifter, lower

1шт.

24

A30880

RETAINER

- dust seal (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

25

A30879

WASHER

SEAL - dust (3/4 x 1-3/16 x 1/4" felt) (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

26

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

SEAT - dust seal (49/64 x 1-15/64 x 20 ga.) (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

27

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - (3/4 x 15/16 x 3/32") (See Ref. 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

28

A30878

ARM

- spool shifter, upper

1шт.

29

72-416

SCREW

- upper arm (1/4 x 1" N.F. fill. hd.)

1шт.

30

A30887

ARM

- spool shifter, lower

1шт.

31

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- lower arm (1/4 x 3/4" N.F. fill. hd.)

1шт.

32

A33358

PLUNGER

- spool, upper (2-1/64" lg.)

1шт.

32

A33357

PLUNGER

- spool, lower (2-15/64" lg.)

1шт.

33

A30883

SPRING

- spool plunger (15 ga., .572" O.D.)

2шт.

34

A30874

SPOOL

- valve

2шт.

35

A30876

SPOOL

- auxiliary

4шт.

36

211-15

BALL,5/8" Dia

- outlet valve (.) 5/8" Dia

4шт.

37

A27452

SPRING

- valve outlet (10 ga., 1/2" O.D.)

4шт.

38

A27364

GUIDE

- outlet valve spring

4шт.

39

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - outlet valve (7/8 x 1-1/8 x 1/8")

4шт.

40

A30886

X

HEAD - pump, right hand side

1шт.

41

A30888

GASKET

- head

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

42

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Head Hex, 3/8"-16 x 1 3/4", G5

3шт.

43

92-6

LOCK WASHER,3/8"

4шт.

44

A30872

90 ELBOW

- swivel

3шт.

45

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - adapter (3/4 x 15/16 x 3/32")

4шт.

46

A27366

GASKET

- adapter (1-1/32 x 1-1/4 x 1/32" copper)

4шт.

47

A30877

SPRING

- return ball check

4шт.

48

211-13

BALL,1/2" Dia

- return check 1/2" Dia

4шт.

49

A8732

CAP

- float opening

1шт.

50

A7478

GASKET

- cap (3/4 x 1-1/32 x 1/32" copper)

1шт.

51

A30885

VALVE

REGULATOR ASSY. (See Figure 115)

1шт.

52

A25264

SEAL

KIT - lever shaft, Includes: Ref. 7, 13, 19, 20, 21, 22 and 24 - 27

1шт.
