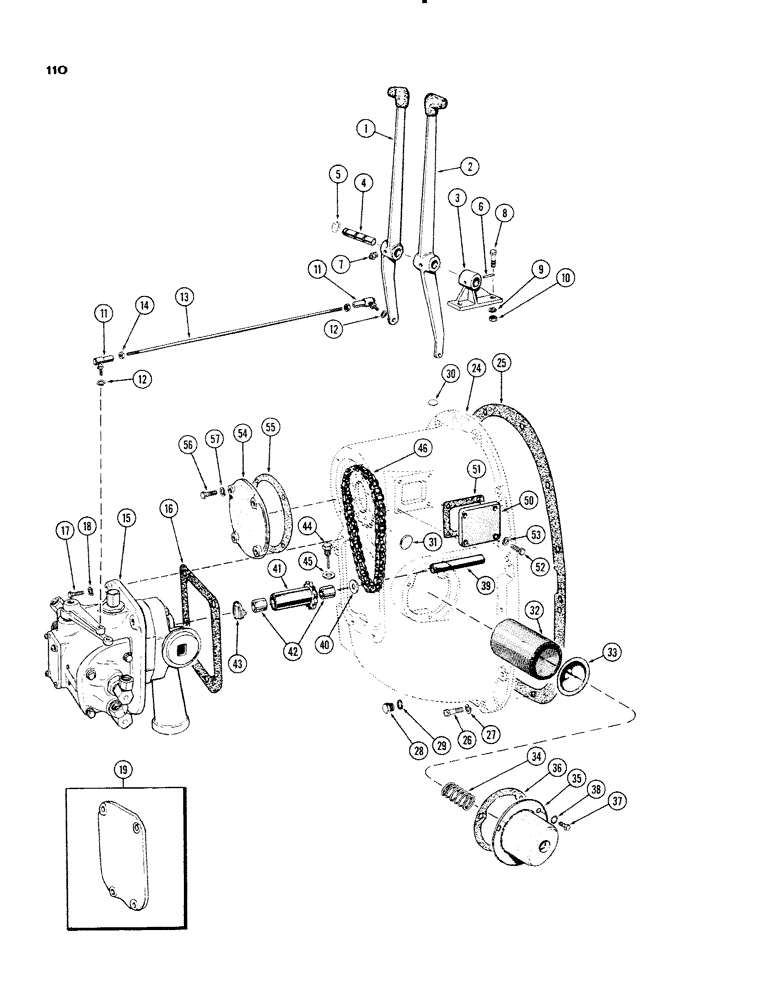

Запчасти Case IH 930-SERIES (110) - HYDRAULIC PUMP HSG. AND CONTROLS (06) - POWER TRAIN

1

A24058

LEVER - pump control, inner

1шт.

2

A24059

LEVER - pump control, outer

1шт.

3

A24057

BRACKET - pump control shaft

1шт.

4

A24056

SHAFT - control levers pivot

1шт.

5

A20202

RING

- snap, inner lever retaining

1шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Pivot shaft 3/16" x 1 1/4", Slotted

1шт.

7

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" str. drive)

2шт.

8

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- bracket (1/2 x 1-1/4" N.F. hex.)

2шт.

9

A34650

LOCK WASHER

- (1/2" ext. skpf.)

2шт.

10

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.)

2шт.

11

A27382

BALL

JOINT - control rod

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

A24060

ROD - pump control (Diesel) (34-1/2" lg.)

2шт.

13

A24061

ROD - pump control (L.P.) (32" lg.)

2шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

(5/16" N.F. half hex.)

4шт.

15

A23384

VALVE

ASSY (See Figure 113)

1шт.

16

A27368

GASKET

- hydraulic valve

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

A26231

COVER - pump opening (used w/out hyd. pump)

1шт.

24

A23978

HOUSING - hyd. pump and P.T.O. clutch

1шт.

25

A24163

GASKET

- hyd. hsg. to trans. case

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

26

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hsg. (1/2 x 3" N.C. hex.)

1шт.

27

92-8

LOCK WASHER,1/2"

11шт.

28

A14280

PLUG

- hsg. oil drain

1шт.

29

A27927

OIL PAN GASKET SET

- plug (3/4 x 1 x 14 ga. copper)

1шт.

30

41-16

PLUG,Exp, 1"

- hsg. (1" expansion)

1шт.

31

A23985

PLUG

- hsg. (7/8" cup)

1шт.

32

A27377

FILTER CARTRIDGE

FILTER - hyd. pump element

1шт.

33

A27378

RETAINER

- filter seat

1шт.

34

A27379

SPRING

- filter tension

1шт.

35

A27459

COVER - hyd. pump filter

1шт.

36

A27380

GASKET

- filter cover

1шт.

37

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

38

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

39

A27586

PIN

SHAFT - pump drive

1шт.

40

A24130

SPACER

- drive sprocket (13/16 x 1-3/8 x 1/16")

1шт.

41

A24132

SPROCKET - driven (1000 R.P.M.) (22 teeth)

1шт.

41

A24126

SPROCKET ASSY.

SPROCKET - driven (540 RPM) (11 teeth), Includes: Ref. 42

1шт.

42

A27585

BUSHING

- sprocket (13/16 x 1 x 1')

2шт.

43

A27376

COUPLING

- pump drive

1шт.

44

A23981

GAUGE

DIPSTICK - oil level

1шт.

45

A27927

OIL PAN GASKET SET

- dipstick (3/4 x 1 x 14 ga. copper)

1шт.

46

A22315

CHAIN ASSY (1000 R.P.M.) (45 links) 5/8 pitch

1шт.

46

A27372

CHAIN (AG)

CHAIN ASSM (540 R.P.M.) (40 links, 5/8 pitch)

1шт.

50

A23979

COVER - P.T.O. cover

1шт.

52

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

53

92-6

LOCK WASHER,3/8"

4шт.

54

A26224

COVER - P.T.O. clutch opening

1шт.

55

A27588

GASKET

- P.T.O. cover

1шт.

56

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- cover (1/2 x 1-3/4" N.C. hex.)

4шт.

57

92-8

LOCK WASHER,1/2"

4шт.
