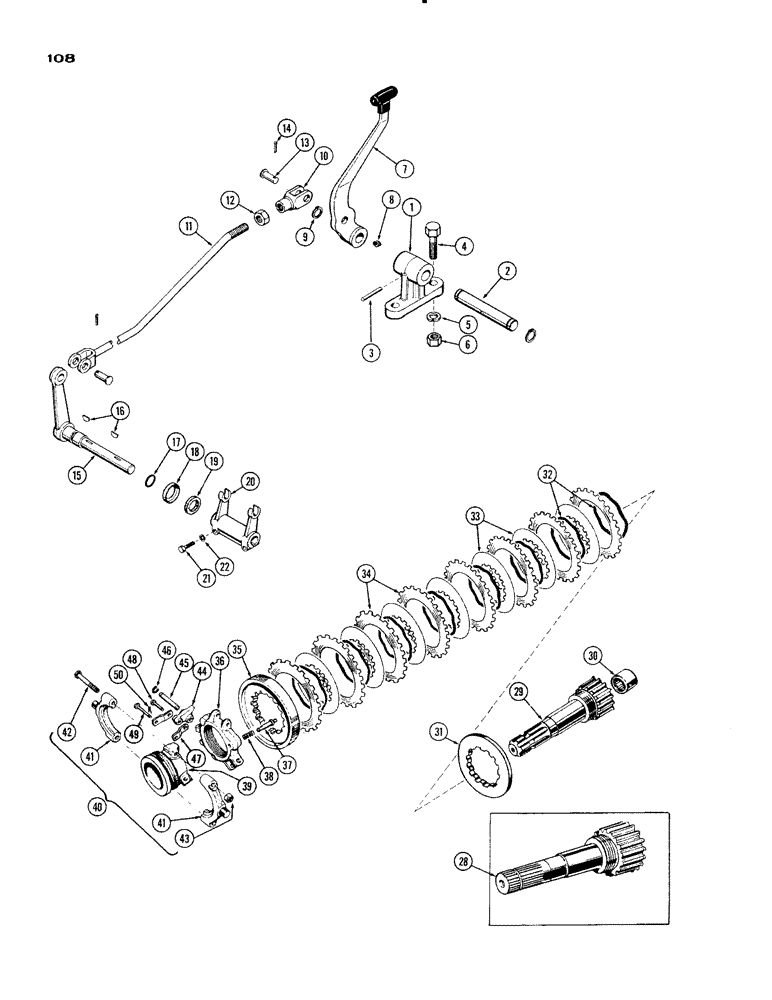

Запчасти Case IH 930-SERIES (108) - P.T.O. CLUTCH AND CONTROLS (06) - POWER TRAIN

1

A23815

SUPPORT - P.T.O. lever shaft

1шт.

2

A24199

SHAFT - P.T.O. lever

1шт.

3

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, , Shaft to support 1/4" x 1 3/4", Slotted

1шт.

4

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Support Hex, 5/8"-18 x 1 3/4", G5

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.)

2шт.

7

A24068

LEVER ASSY - hand, P.T.O. clutch, Includes: Ref. 8

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" str. drive)

1шт.

9

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, , lever #87, .668" Dia, E-Type

1шт.

10

A24070

CLEVIS - P.T.O. control rod

1шт.

11

A24071

ROD - P.T.O. control

1шт.

12

25-1110

NUT,5/8"-18, G5

- clevis stop (5/8" N.F. hex.)

1шт.

13

A28041

PIN

- clevis (13/16 x 1-39/64")

2шт.

14

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

15

A24065

SHAFT - P.T.O. clutch throwout

1шт.

16

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Shaft #9, 3/16" x 3/4"

2шт.

17

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - shaft (3/4 x 15/16 x 3/32")

1шт.

18

A27599

RETAINER

- dust seal

1шт.

19

A27598

FELT

SEAL - dust (29/32 x 1-7/16 x 1/4" felt)

1шт.

20

A26229

FORK

YOKE - P.T.O. clutch throwout

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- yoke (5/16 x 1-1/4" N.C. hex.)

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

28

A22307

SHAFT - stub (1000 RPM) (21 spline)

1шт.

29

A27589

SHAFT

- stub (540 RPM) (6 spline)

1шт.

30

F51079

NEEDLE BEARING

BEARING - needle, P.T.O. shaft pilot (Replaces F62086)

1шт.

31

A7101

PLATE

- backing, P.T.O. clutch

1шт.

32

A27591

VALVE SPRING

SPRING - drive plate separators

10шт.

33

A7102

CLUTCH DRIVING PLATE

PLATE - driven (steel, internal teeth)

9шт.

34

A11127

PLATE

- drive (bronze, external teeth)

10шт.

35

A26225

LARGE PLATE

PLATE - pressure, P.T.O. clutch

1шт.

36

A27592

FORK

YOKE - clutch adjusting

1шт.

37

A34248

LOCK PIN,7.85mm OD x 39.62mm L

PIN - clutch adjustment lock (Replaces A27593)

1шт.

38

A26944

VALVE SPRING

SPRING - lock adjustment pin

1шт.

39

A26226

SLEEVE CYLINDER

SLEEVE - sliding

1шт.

40

A28596

COLLAR CLAMP

COLLAR ASSY. - throwout (Replaces A28296), Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

COLLAR - throwout (Order A28296)

2шт.

42

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Collar Hex, 5/16"-24 x 1 1/4", G5

2шт.

43

231-2445

LOCK NUT,5/16"-24, GB

NUT - (5/16" N.F. self-locking)

2шт.

44

A36552

FINGER

- P.T.O. clutch

3шт.

45

A28641

PIN

ASSY. - finger pivot, Includes: Ref. 46

3шт.

46

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, , pin #X31, .243" Dia, E-Type

2шт.

47

A27596

LINK

- P.T.O. clutch lever

6шт.

48

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, link to finger (1/4 x 1-15/64")

3шт.

49

A8824

PIN

- clevis, link to collar (1/4 x 31/32")

3шт.

50

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.
