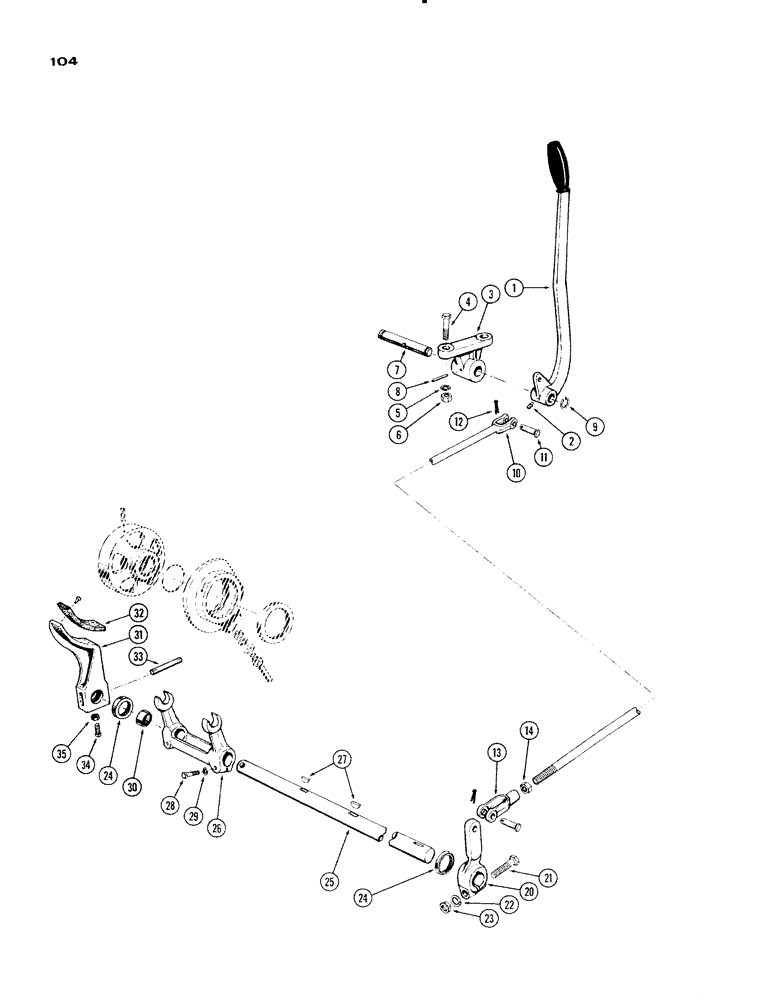

Запчасти Case IH 930-SERIES (104) - HAND CLUTCH CONTROLS (06) - POWER TRAIN

1

A23814

LEVER - clutch throwout

1шт.

2

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" str. drive)

1шт.

3

A23815

SUPPORT - throwout lever

1шт.

4

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Support Hex, 5/8"-18 x 1 3/4", G5

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.)

2шт.

7

A23816

SHAFT - lever pivot

1шт.

8

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, , Shaft 1/4" x 1 3/4", Slotted

1шт.

9

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, , lever #87, .668" Dia, E-Type

1шт.

10

A23817

ROD - clutch throwout

1шт.

11

A28041

PIN

- clevis

2шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

13

A23819

CLEVIS - throwout rod

1шт.

14

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - clevis lock (5/8" N.F. hex.)

1шт.

20

A24117

LEVER - clutch cross shaft

1шт.

21

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- lever (1/2 x 2-1/2" N.F. hex.)

1шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.)

1шт.

24

A24122

OIL SEAL

- oil, cross shaft

2шт.

25

A24118

SHAFT - cross, clutch throwout

1шт.

26

A24119

YOKE

- clutch throwout

1шт.

27

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Shaft #15, 1/4" x 1", HT

3шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- yoke (3/8 x 1-1/2" N.C. hex.)

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - needle, cross shaft

2шт.

31

A24120

SHOE ASSY - brake, Includes: Ref. 32

1шт.

32

A21104

LINING

KIT - w/rivets

1шт.

33

135-799

PIN - shoe retaining (1/2 x 2" Groove)

1шт.

34

181-649

SCREW - set, shoe adjusting (3/8 x 1-1/2" N.C., sq. hd., flat pt.)

2шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, set screw (3/8" N.C. half hex.)

2шт.
