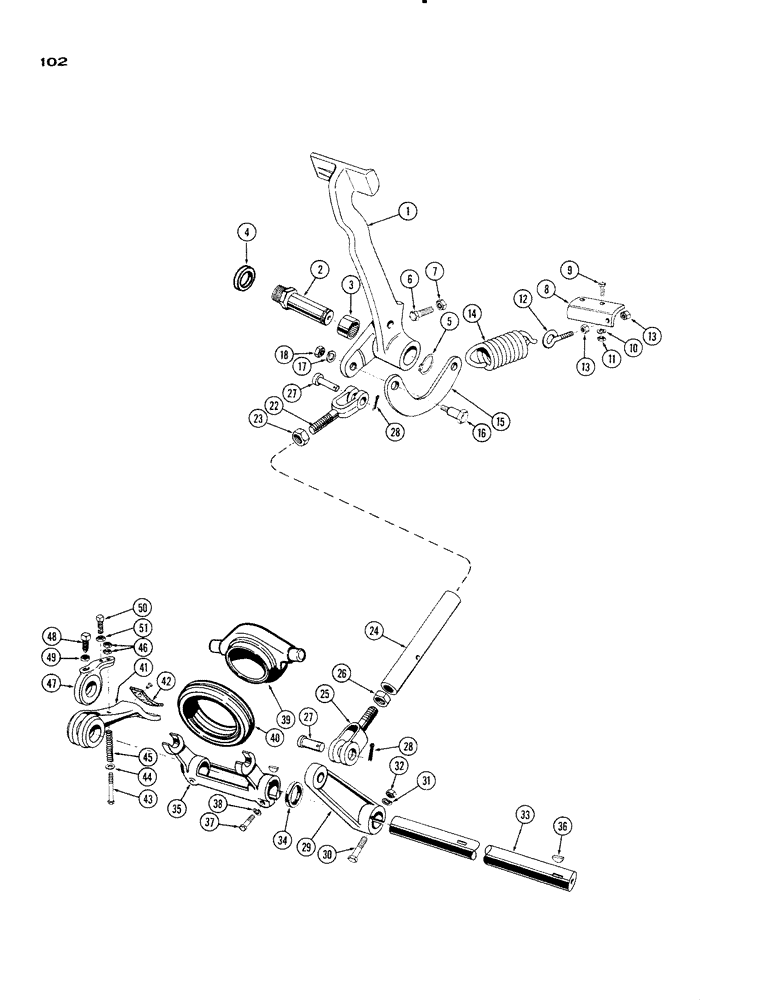

Запчасти Case IH 930-SERIES (102) - FOOT CLUTCH CONTROLS (06) - POWER TRAIN

1

A24186

PEDAL - clutch throwout

1шт.

2

A24187

STUD - food pedal pivot

1шт.

3

F62197

BEARING

- needle, foot pedal

2шт.

4

195-53

WASHER,1" x 2" x .134"

- stud (1-1/16 x 2 x 1/8")

1шт.

5

B18208

SNAP RING,#100, Ext

pedal #100, Ext

1шт.

6

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- pedal stop (3/8 x 1-1/4" N.F. hex.)

1шт.

7

25-156

JAM NUT,Jam, 3/8"-24, G5

(3/8" N.F. half hex.)

1шт.

8

A24193

BRACKET - return spring

1шт.

9

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- bracket (1/2 x 1-1/4" N.F. hex.)

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.)

2шт.

12

A24192

EYE BOLT - spring anchor

1шт.

13

25-115

NUT,5/16"-24, G5

- eye bolt (5/16" NF hex)

2шт.

14

A24191

SPRING - foot pedal return

1шт.

15

A24190

LINK - return spring

1шт.

16

A27277

STEP BOLT

BOLT - link pivot

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

(3/8" N.F. half hex.)

1шт.

22

A24495

CLEVIS

- rod end (5/8" N.F.L.H. thread)

1шт.

23

129-367

NUT,Jam, 5/8"-18, G5, LH

(3/8" N.F. half hex., L.H. thread)

1шт.

24

A24494

ROD - clutch throwout

1шт.

25

A23819

CLEVIS - rod end (5/8" N.F.R.H. thread)

1шт.

26

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT (5/8" N.F. half hex., R.H. thread)

1шт.

27

A28041

PIN

- clevis

2шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

29

A24194

LEVER - clutch throwout

1шт.

30

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- lever (1/2 x 2-1/2" N.F. hex.)

1шт.

31

92-8

LOCK WASHER,1/2"

1шт.

32

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.)

1шт.

33

A24195

SHAFT - cross, clutch throwout

1шт.

34

A24122

OIL SEAL

- oil, cross shaft (Replaces A28211)

2шт.

REFER TO ILLUSTRATION FIGURE,TO THE RIGHT OF REF. 34 THERE IS A BEARING PART NUMBER IS T15025 (TWO REQUIRED)

1шт.

35

A24119

YOKE

- clutch throwout

1шт.

36

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Cross shaft #15, 1/4" x 1", HT

3шт.

37

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- yoke (3/8 x 1-1/2" N.C. hex.)

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

A24340

SLEEVE

- release bearing

1шт.

40

A27992

BALL BEARING

BEARING - clutch release

1шт.

41

A24196

SHOE ASSY - brake, Includes: Ref. 42

1шт.

42

A21104

LINING

KIT - w/rivets

1шт.

43

16-564

BOLT - shoe (5/16 x 4' N.F. hex.)

1шт.

44

195-21

WASHER,5/16"

Spring seat (11/32 x 11/16 x 5/64") 5/16"

1шт.

45

A26715

SPRING - shoe tension

1шт.

46

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

47

A24198

COLLAR - brake shoe adjusting

1шт.

This is a valid part number - we have a drawing on it - it is not a service part through service parts.

1шт.

48

85-624

SCREW - set, adj. collar ret. (3/8 x 1-1/2" N.C., sq. hd., cup pt.)

1шт.

49

25-146

JAM NUT,Jam, 3/8"-16, G5

(3/8" N.C. half hex.)

1шт.

50

A26539

SET SCREW

SCREW - set, brake shoe adjusting

1шт.

51

25-148

JAM NUT,Jam, 1/2"-13, G5

(1/2" NC half hex)

1шт.
