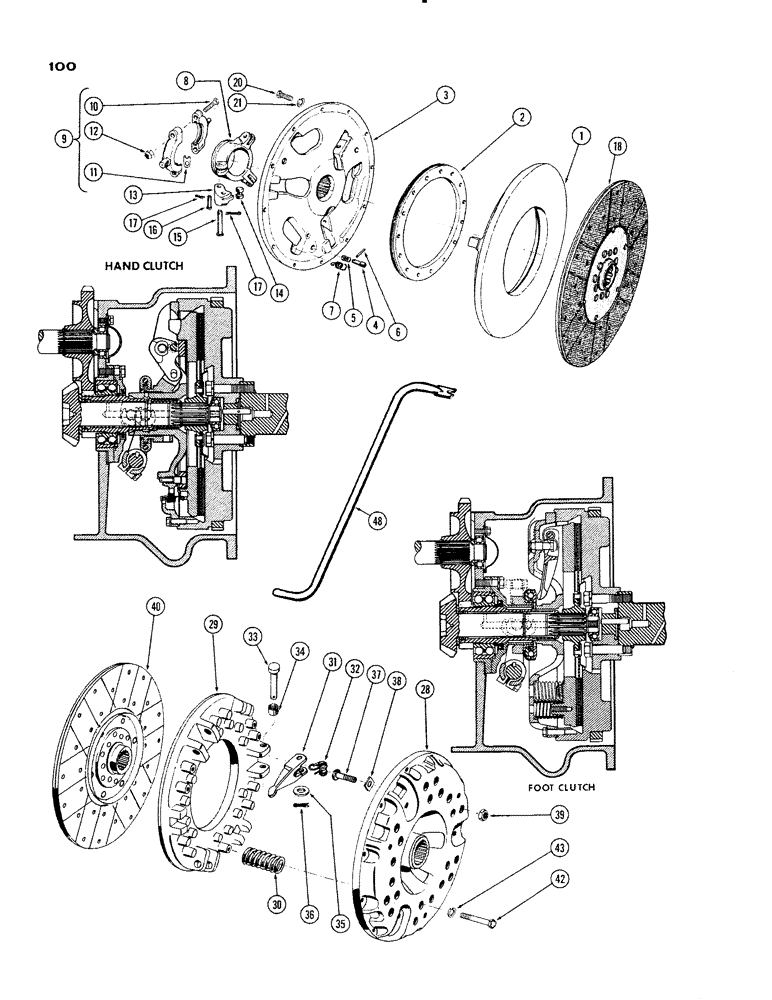

Запчасти Case IH 930-SERIES (100) - CLUTCHES, A20951 HAND CLUTCH (06) - POWER TRAIN

A20951

SPARE PART ASSY - complete, Incl. Ref. 1 - 17

1шт.

1

A20948

SPARE PART Pressure

1шт.

2

A27764

OIL SEAL

SPARE PART RING - adjusting

1шт.

3

A9920

SPARE PART Cover

1шт.

4

A27813

SPARE PART Lock, clutch adjusting

1шт.

5

A26944

VALVE SPRING

Lock adj. pin

1шт.

6

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

7

A27255

SPRING

Clutch release

3шт.

8

A9888

SLEEVE

Sliding

1шт.

9

A9887

COLLAR

ASSY - sliding sleeve, Incl. Ref. 10 and 11

1шт.

10

14-468

BOLT - collar (3/8 x 3" N.F.hex.)

2шт.

11

A8364

SPARE PART SHIM - collar

2шт.

12

131-5

LOCK NUT,3/8"-16, GB

Collar

2шт.

13

A27762

SPARE PART Clutch

3шт.

14

A27763

ROLLER

Clutch lever

3шт.

15

A10123

SPARE PART Lever pivot

3шт.

16

A10122

SPARE PART Lever guide

3шт.

17

132-46

COTTER PIN,1/8" x 3/4"

6шт.

18

A22895

LARGE PLATE

PLATE, LARGE ASSY - clutch driving, includes facing

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Clutch

12шт.

21

92-6

LOCK WASHER,3/8"

12шт.

A21832

CLUTCH

ASSY - complete, foot, Incl. Ref. 28 - 39

1шт.

28

A21833

SPARE PART Cover, A21832 foot clutch

1шт.

29

A26278

CLUTCH

PLATE - pressure, A21832 foot clutch

1шт.

30

A27289

SPRING

Clutch pressure, A21832, foot

24шт.

32

A27988

LEVER

Clutch release, A21832, foot

3шт.

32

A27990

SPRING

Torsion, release lever, A21832 foot clutch

3шт.

33

A27288

AXLE PIN

Release lever pivot, A21832 foot clutch

3шт.

34

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

Needle, release lever, A21832 foot clutch

6шт.

36

132-46

COTTER PIN,1/8" x 3/4"

A21832 foot clutch

3шт.

37

A27989

ADJUSTMENT SCREW,9/16" - 18 x 2 1/8"

Clutch adjusting, A21832, foot

3шт.

38

A27991

BLOCK

Adjusting bolt, A21832 foot clutch

3шт.

39

25-159

JAM NUT,Jam, 9/16"-18, G5

Adj. bolt (9/16" N.F. half hex.), A21832 foot clutch

3шт.

40

A22895

LARGE PLATE

PLATE, LARGE ASSY - clutch driving includes facing (Replaces A24329), A21832, foot

1шт.

42

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Clutch, A21832, foot

12шт.

43

92-6

LOCK WASHER,3/8"

A21832 foot clutch

12шт.

48

A27703

SPARE PART TOOL - clutch adjusting, A21832, foot

1шт.

A27127

BALL BEARING,1.1811" ID x 2.4423" OD x 0.787"

Pilot, subs to 658004R91, A21832 foot clutch

1шт.

Shown in the cross section of the foot clutch

1шт.
