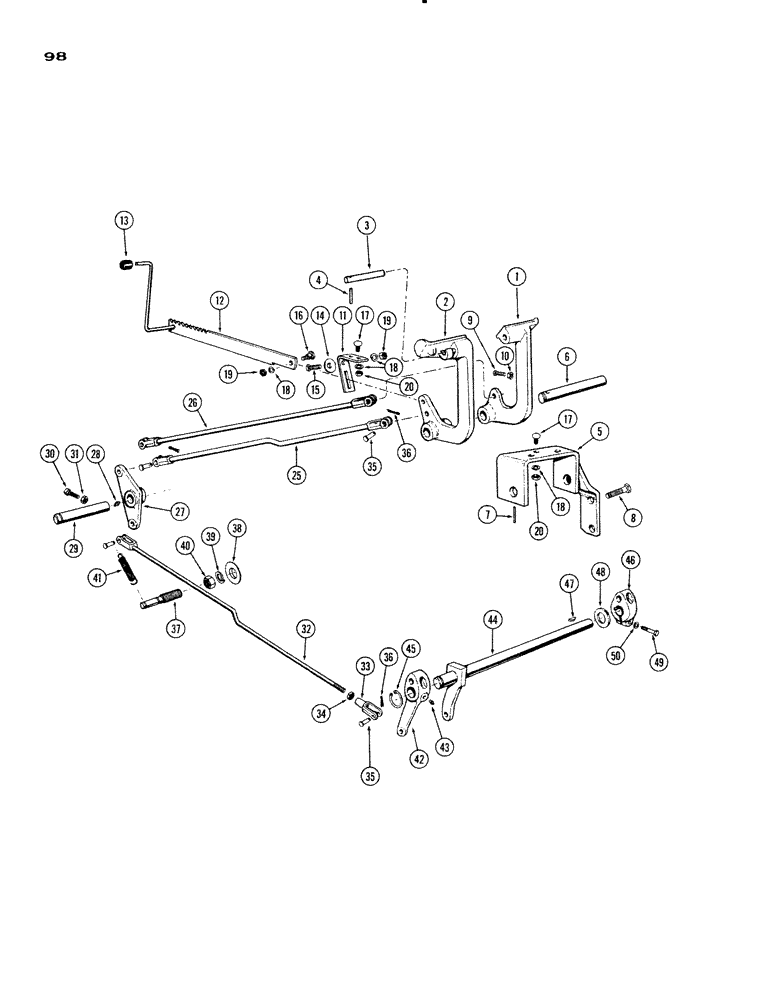

Запчасти Case IH 930-SERIES (098) - BRAKE CONTROLS (06) - POWER TRAIN

1

A23822

PEDAL - brake, left hand

1шт.

2

A23823

PEDAL - brake, right hand

1шт.

3

A27104

PIN - lock, brake pedals

1шт.

4

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Brake lock stop 1/8" x 3/8", Slotted

1шт.

5

A23832

BRACKET - brake pedal pivot pin

1шт.

6

A23825

PIN - pivot, brake pedals

1шт.

7

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, , Pivot pin 3/16" x 1 3/4", Slotted

1шт.

8

113-403

BOLT

- bracket (1/2 x 1" N.C. hex., self-locking)

2шт.

9

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- pedal stop (3/8 x 1" N.F. hex.)

2шт.

10

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, stop bolt (3/8" N.F. half hex.)

4шт.

11

A23836

BRACKET - parking brake

1шт.

12

A23829

RATCHET - parking brake

1шт.

13

A23953

TIP

- ratchet lever

1шт.

14

A29920

PAWL

- ratchet lock

1шт.

15

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- pawl (3/8 x 1" N.F. hex.)

1шт.

16

A23824

STUD

BOLT - ratchet pivot

1шт.

17

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Bracket Short NK, 3/8"-16 x 1", G2

5шт.

18

92-6

LOCK WASHER,3/8"

7шт.

19

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

2шт.

20

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

5шт.

25

A23826

ROD - brake control, upper, R.H.

1шт.

26

A23827

ROD - brake control, upper, L.H.

1шт.

27

A23828

LEVER - pivot, rear

2шт.

28

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease (1/4" str. drive, 67-1/2 deg.)

2шт.

29

A27471

PIN - pivot lever

1шт.

30

85-620

SCREW - set, pivot pin retaining (3/8 x 1-1/4" N.C., sq. hd. cup pt.)

1шт.

31

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

2шт.

32

A27475

ROD - brake control, lower

2шт.

33

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - lower control rod

2шт.

34

25-118

NUT,1/2"-20, G5

- lower rod (1/2" N.F. hex.)

2шт.

35

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (1/2 x 1-23/64")

8шт.

36

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

37

A27474

STUD - spring anchor

1шт.

38

A27449

WASHER

- stud (25/32 x 1-9/16 x 1/4")

1шт.

39

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

40

25-1112

NUT,3/4"-16, G5

(3/4" N.F. hex.)

1шт.

41

A24051

SPRING

- brake pedal return

2шт.

43

A26211

LEVER - brake control, right hand

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

44

A28526

SHAFT - brake cross

1шт.

45

F62020

SNAP RING,#125, Ext

Ring, Snap, , R.H. lever #125, Ext

1шт.

46

A26212

LEVER - brake control, left hand

1шт.

47

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

L.H. lever #C, 5/16" x 1 1/8", HT

1шт.

48

D43745

WASHER

WASHER - thrust, L.H. lever (1-9/32 x 2-1/4 x 1/4")

1шт.

49

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- lever (1/2 x 1-3/4" N.C. hex.)

1шт.

50

92-8

LOCK WASHER,1/2"

1шт.
