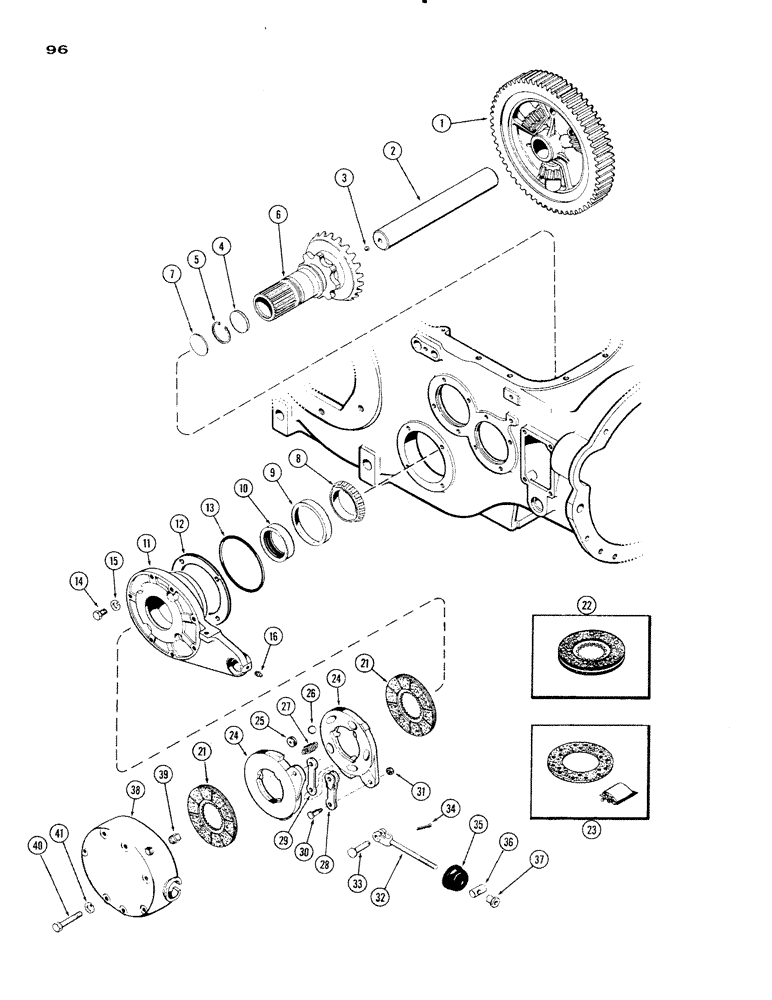

Запчасти Case IH 930-SERIES (096) - DIFFERENTIAL AND BRAKES (06) - POWER TRAIN

1

A9453

WHEEL ASSM. - diff., center

1шт.

2

A28525

SHAFT ASSY. - diff., Includes: Ref. 3

1шт.

3

211-13

BALL,1/2" Dia

1/2" DiL - thrust, diff. shaft

2шт.

4

A27462

PLATE

- bearing, thrust ball (2-3/8 x 3/16")

2шт.

5

A27463

SNAP RING,2.375", Int, #237

Brg plate 2.375", Int, #237

2шт.

6

A24627

GEAR ASSY - diff. side, Includes: Ref. 6

2шт.

7

A24626

CUP

PLUG - side gear

1шт.

8

A27196

BEARING CONE,83.34mm ID x 25.4mm W

CONE - bearing, side gear

2шт.

9

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing, side gear

2шт.

10

A27464

OIL SEAL

- oil, carrier (3-1/4 x 4-1/8 x 15/16" dual)

2шт.

11

A26200

CARRIER - diff. brg., right hand

1шт.

11

A26201

CARRIER - diff. brg., left hand

1шт.

12

A11221

SHIM - brg. carrier (.003")

1шт.

12

A11222

SHIM - brg. carrier (.010")

1шт.

13

A27484

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

"O" RING - brg. carrier (5-3/4 x 6 x 1/8")

2шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Carrier Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

15

92-8

LOCK WASHER,1/2"

8шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/4" P.T., str.)

2шт.

21

A40794

DISC

- middle, w/bonded linings (First Used In Prod. Trac. Ser. No. 8280138)

4шт.

22

A30180

X

DISC ASSY. - middle, w/riveted lining (Order A40794) to Trac., Includes: Ref. 23, Serial Range: -8280138

4шт.

23

A30182

LINING

KIT - w/rivets

1шт.

24

A31126

DISC

- brake actuating

4шт.

25

A31125

INSERT

- ball seat

12шт.

26

211-15

BALL,5/8" Dia

- actuating (.) 5/8" Dia

6шт.

27

A30897

SPRING

- disc tension

6шт.

28

A31120

LINK

- yoke, actuating disc

2шт.

29

A31119

LINK

- plain, actuating disc

2шт.

30

A31121

STEP BOLT

BOLT - actuating disc

4шт.

31

25-156

JAM NUT,Jam, 3/8"-24, G5

(3/8" N.F. half hex.)

4шт.

32

A27466

ROD

- brake

2шт.

33

A26652

PIN - clevis, brake rod (1/2 x 1-23/64")

2шт.

34

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

35

A27465

CAP

- dust, brake cover hole

2шт.

36

A27467

TRUNNION

- brake rod guide

2шт.

37

A27468

NUT

- brake rod adjustment

2шт.

38

A26202

COVER - brake

2шт.

39

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - cover (3/8" P.T., sq. hd.)

2шт.

40

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cover Hex, 1/2"-13 x 3 3/4", G5

14шт.

41

92-8

LOCK WASHER,1/2"

14шт.
