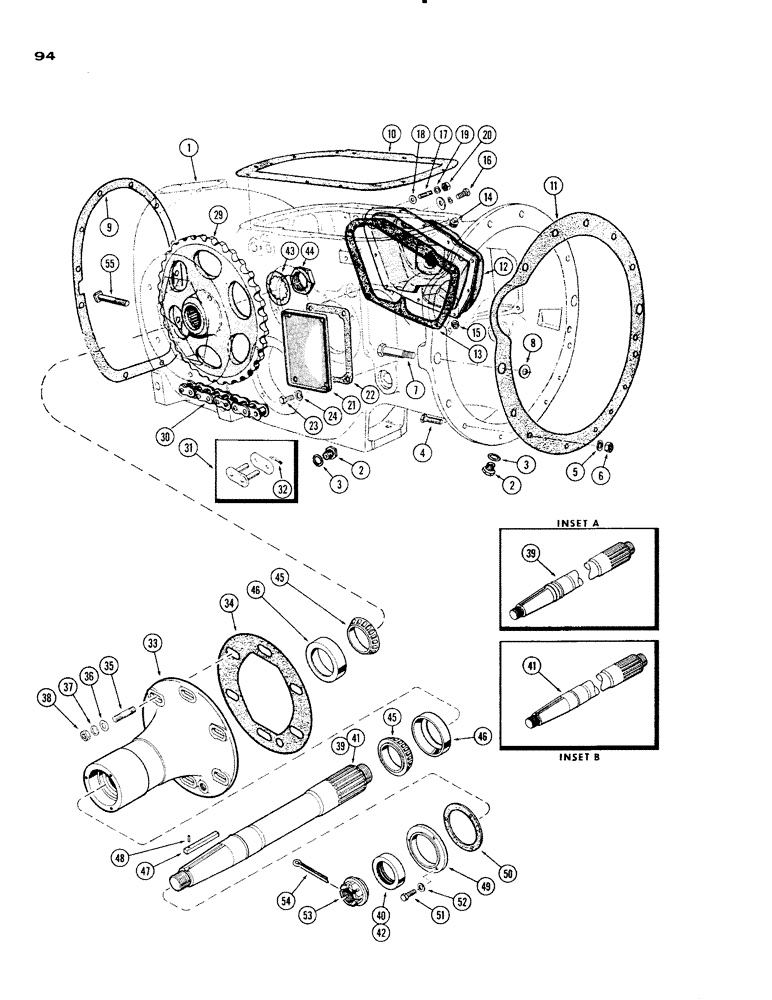

Запчасти Case IH 930-SERIES (094) - TRANSMISSION CASE AND REAR AXLES (06) - POWER TRAIN

1

A24015

CASE - transmission

1шт.

2

A14280

PLUG

- drain, trans. hsg.

2шт.

3

A27927

OIL PAN GASKET SET

- drain plug (3/4 x 1 x 14 ga. copper)

2шт.

4

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Trans. case Hex, 5/8"-18 x 1 3/4", G5

3шт.

4

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

Trans. case Hex, 5/8"-18 x 2 1/4", G5

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

6

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.)

5шт.

7

A23677

BOLT - trans. case (5/8 x 2-3/4" N.F. shldr.)

1шт.

7

A23678

BOLT - trans. case (5/8 x 3-1/4" N.F. shldr.)

1шт.

8

195-46

WASHER,3/4" x 1 3/4" x .148"

(13/16 x 1-3/4 x 5/32")

2шт.

9

A24163

GASKET

- trans. case, rear

1шт.

10

A10031

GASKET

- trans. case, top

1шт.

11

A24165

GASKET

- trans. case, front

1шт.

12

A10027

HOUSING - 5th speed gear

1шт.

13

A24162

GASKET

- 5th speed gear hsg.

1шт.

14

221-13

PLUG,Sq Hd, 3/8"-18

- housing (3/8" P.T., sq. hd.)

1шт.

15

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - housing (1/2" P.T., sq. hd.)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

17

A10029

STUD - housing (3/8" N.C./N.F. x 1-3/4")

2шт.

18

A22317

WASHER

(25/64 x 9/16 x 18 GA. copper)

10шт.

19

92-6

LOCK WASHER,3/8"

10шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

(3/8" N.F. hex.)

2шт.

21

A26618

COVER - hand hole, (R.H. side)

1шт.

22

A24012

GASKET

- hand hole cover

1шт.

23

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- cover (1/2 x 3/4" N.F. hex.)

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

29

A26321

SPROCKET - drive, rear axle

1шт.

30

A27717

CHAIN ASSY. - (2" pitch, 38 pitches), Includes: Ref. 31 and 32

2шт.

31

A31182

LINK ASSY. - connecting, Includes: Ref. 32

1шт.

32

131-303

LOCK NUT

PIN - cotter (3/16 x 1")

1шт.

33

A26205

HOUSING - rear axle

2шт.

34

A24164

GASKET

- housing

2шт.

35

A27450

STUD - housing (3/4" N.C./N.F. x 3-3/8")

8шт.

36

A27449

WASHER

- stud (25/32 x 1-9/16 x 1/4")

8шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

38

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.)

8шт.

39

A57232

SHAFT

ASSY - rear axle, w/sleeve (shot-peened) (See inset A)

2шт.

40

A57230

OIL SEAL

- oil (used w/A57232 axle) (3-3/8 x 4-1/4 x 1/2")

2шт.

41

A11331

X

SHAFT - rear axle, w/out sleeve (See inset B) (Order 1-A57232 axle and 1-A57230 oil seal)

2шт.

42

A11332

OIL SEAL

WASHER - axle shaft

2шт.

44

A23386

NUT

- axle shaft, inner

2шт.

45

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, rear axle

4шт.

46

A27023

CUP

- bearing, rear axle

4шт.

47

A11333

KEY

- rear axle

2шт.

48

A29426

AXLE PIN

PIN - key

2шт.

49

A26141

RETAINER - oil seal

2шт.

50

A26769

GASKET

- oil seal retainer

2шт.

51

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Retainer Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

52

92-5

LOCK WASHER,5/16"

6шт.

53

A23385

NUT

- axle shaft, outer

2шт.

54

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

55

A26723

BOLT - axle adj. (7/8 x 6-1/4" N.C. mach.)

2шт.
