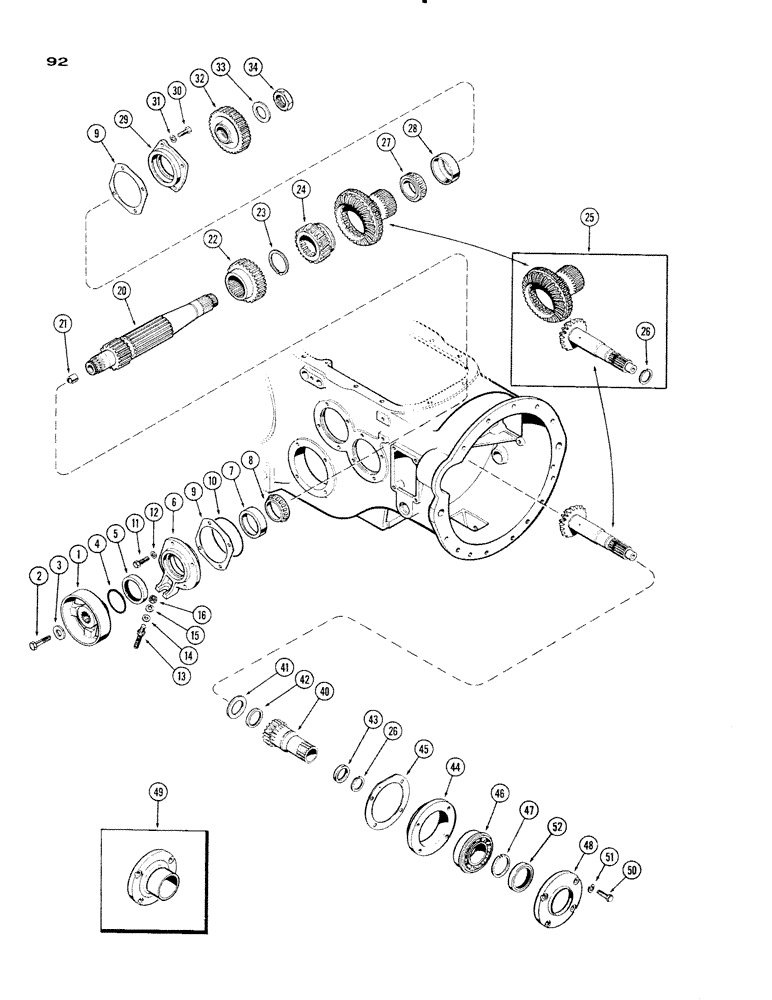

Запчасти Case IH 930-SERIES (092) - TRANSMISSION, FIRST REDUCTION GEAR SHAFT (06) - POWER TRAIN

1

A24460

DRUM - 1st reduction shaft brake

1шт.

2

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Drum

1шт.

3

A24459

WASHER - drum (17/32 x 2-1/4 x 5/16")

1шт.

4

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING - drum (2 x 2-1/4 x 1/8")

1шт.

5

A26759

OIL SEAL

- oil, carrier (2-7/8 x 3-3/4 x 1/2")

1шт.

6

A20326

CARRIER ASSY - red. gear brg., Includes: Ref. 7

1шт.

7

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing

1шт.

8

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - bearing

1шт.

9

A26618

SHIM - bearing carrier (.003")

1шт.

9

A10003

SHIM - bearing carrier (.005")

1шт.

9

A10004

SHIM - bearing carrier (.010")

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - carrier (4-1/2 x 4-3/4 x 1/8")

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Carrier Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

A20322

ANCHOR - bearing carrier

1шт.

14

95-8

WASHER,1/2"

- anchor (9/16 x 1-3/8 x 7/64") 1/2"

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-118

NUT,1/2"-20, G5

(1/2" N.F. hex.)

2шт.

20

A21315

SHAFT

ASSY - 1st reduction gear, Includes: Ref. 21

1шт.

21

A27585

BUSHING

- shaft (13/16 x 1 x 1")

1шт.

22

A21320

PINION - 4th speed (25 teeth)

1шт.

23

A10000

SNAP RING,#306, Ext

Ring, Snap, , pinion #306, Ext

1шт.

24

A34176

GEAR

- 3rd. speed (22 teeth) (w/two internal splines) (Replaces A24480)

1шт.

25

A22440

GEAR SET - matched, Includes: Ref. 26

1шт.

26

A27759

RING, SNAP

RING - snap, clutch shaft (.0765")

1шт.

26

A27758

SNAP RING

RING - snap, clutch shaft (.0805")

1шт.

26

A27757

RING, SNAP

RING - snap, clutch shaft (.0835")

1шт.

27

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - bearing

1шт.

28

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing

1шт.

29

A9953

CARRIER - bearing (L.H. side)

1шт.

30

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Carrier Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

A21323

PINION - 5th speed (28 teeth)

1шт.

33

A10005

WASHER

- 5th speed gear ret. (1-3/4 x 2-3/4 x 16 ga.)

1шт.

34

A10006

NUT - 5th speed gear

1шт.

40

A20937

PINION - P.T.O. drive (540 R.P.M.), traction clutch shaft

1шт.

40

A22308

PINION - P.T.O. drive (1000 RPM), traction clutch shaft

1шт.

41

A11942

WASHER

- thrust, P.T.O. pinion (1-3/4 x 3 x 3/16"), traction clutch shaft

1шт.

42

A27754

OIL SEAL

- oil, clutch shaft (1-3/4 x 2-1/8 x 3/16"), traction

1шт.

43

A27755

COLLAR

- thrust, clutch shaft, traction

1шт.

44

A20943

CARRIER - clutch shaft bearing, traction

1шт.

45

A20947

SHIM - carrier (.003"), traction clutch shaft

1шт.

45

A20946

SHIM - carrier (.005"), traction clutch shaft

1шт.

45

A20945

SHIM - carrier (.012"), traction clutch shaft

1шт.

46

A33491

BEARING ASSY

BEARING - clutch shaft, traction

1шт.

47

A20946

RING - snap, brg. ret. (.112"), traction clutch shaft

1шт.

47

A20941

RING, SNAP

RING - snap, brg. ret. (.1135"), traction clutch shaft

1шт.

47

A20942

RING, SNAP

RING - snap, brg. ret. (.115"), traction clutch shaft

1шт.

48

A20944

CARRIER - oil seal (hand clutch), traction, shaft

1шт.

49

A21838

CARRIER - oil seal (Foot clutch), traction, shaft

1шт.

50

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- carrier (1/2 x 1-1/2" N.C. hex.), traction clutch shaft

4шт.

51

92-8

LOCK WASHER,1/2"

traction clutch shaft 1/2"

4шт.

52

A20939

OIL SEAL

SEAL - oil, clutch shaft (2-3/4 x 3-5/8 x 3/8"), traction

1шт.

A27127

BALL BEARING,1.1811" ID x 2.4423" OD x 0.787"

pilot, traction clutch shaft

1шт.
