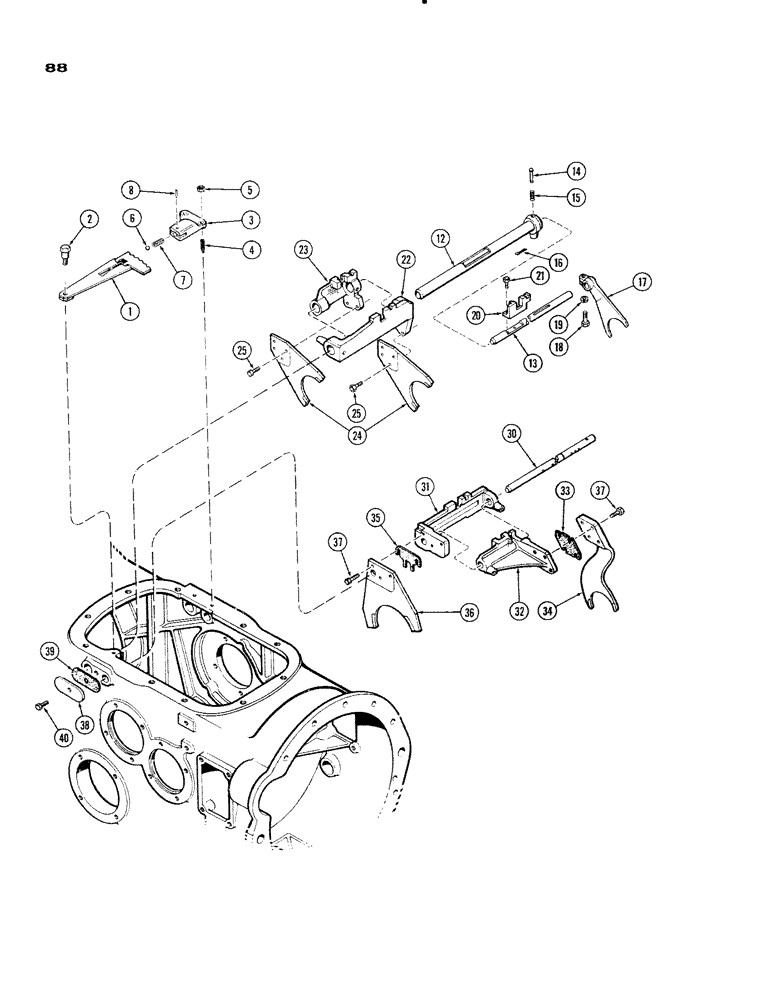

Запчасти Case IH 930-SERIES (088) - SHIFTER SHAFTS AND FORKS (06) - POWER TRAIN

1

A9945

PLATE - shift selector

1шт.

2

A9946

PIVOT - selector plate

1шт.

3

A9940

HOUSING - interlock ball

1шт.

4

A21544

SCREW - interlock housing

2шт.

5

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

2шт.

6

211-13

BALL,1/2" Dia

- interlock 1/2" Dia

1шт.

7

A33749

SPRING

- tension, interlock ball

1шт.

8

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Spring stop 1/8" x 3/8", Slotted

1шт.

12

A24913

SHAFT - shifter, 2nd, 6th and reverse gears

1шт.

13

A21543

SHAFT - shifter, 5th gear

1шт.

14

A26447

PLUNGER - 5th gear shaft detent

1шт.

15

A11219

SPRING - detent plunger

1шт.

16

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Plunger 3/32" x 1/2"

1шт.

17

A9935

FORK - shifter, 5th gear

1шт.

18

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- fork (7/16 x 1-1/4" N.F. hex.)

1шт.

19

92-7

LOCK WASHER,7/16"

1шт.

20

A9925

SHIFTER - 5th gear

1шт.

21

A9938

BOLT - 5th gear shifter ret.

2шт.

22

A9923

SHIFTING UNIT

SHIFTER - 2nd and Reverse gear

1шт.

23

A21539

SHIFTER - 6th gear

1шт.

24

A23581

FORK - shifter, 2nd, 6th and reverse gears

2шт.

25

A9937

BOLT - shifter forks ret.

4шт.

30

A23631

SHAFT - shifter, 1st, 3rd and 4th gears

1шт.

31

A9922

SHIFTER - 1st & 4th gears

1шт.

32

A23632

SHIFTER - 3rd gear

1шт.

33

A21541

SHIM - 3rd, gear shifter (.014")

1шт.

34

A23633

FORK - shifter, 3rd gear

1шт.

35

A9939

SHIM - 4th gear shifter (.014")

1шт.

36

A23580

FORK - shifter, 1st and 4th gears

1шт.

37

A9936

SCREW - forks ret.

7шт.

38

A26501

PLATE - stop, shifter shafts

1шт.

39

A26503

GASKET

- stop plate

1шт.

40

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Stop plate Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.
