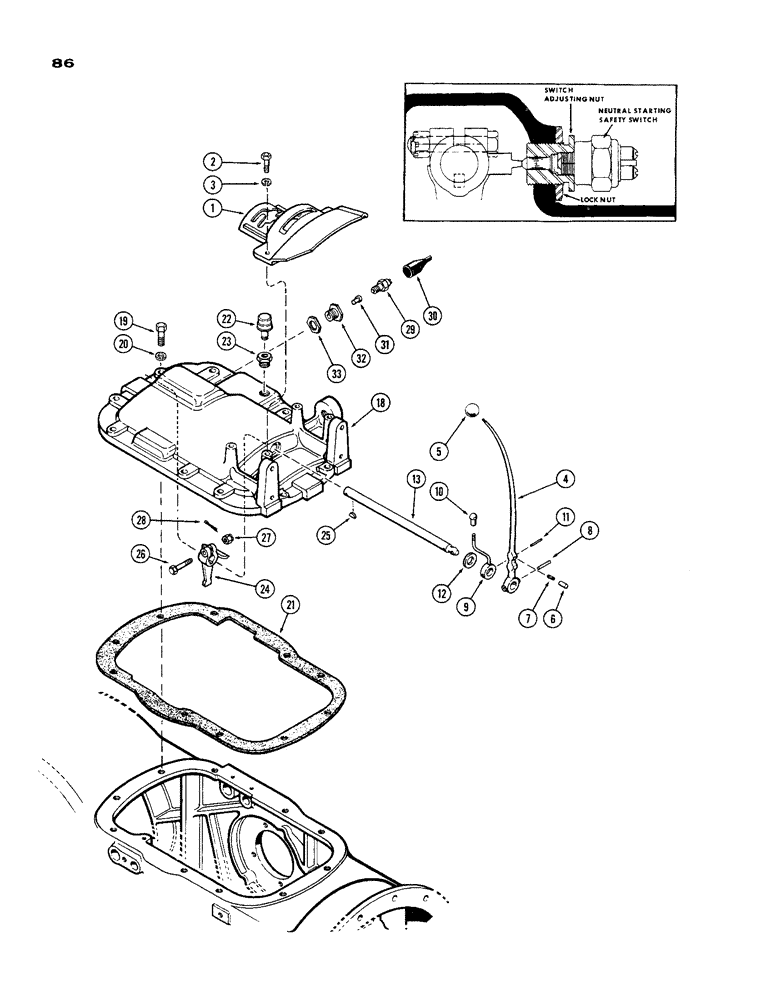

Запчасти Case IH 930-SERIES (086) - GEAR SHIFT AND COVERS (06) - POWER TRAIN

1

A24554

BRACKET - gear shift hand lever

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

4

A24465

LEVER - hand, gear shift

1шт.

5

A23885

KNOB

- gear shift lever

1шт.

6

A10903

PLUNGER

- gear shift detent

1шт.

7

A23886

SPRING

- detent plunger

1шт.

8

138-2001

PIN,3/8" x 1 3/4", Coiled

Lever 3/8" x 1 3/4", Coiled

1шт.

9

A23880

INDICATOR

- gear shift

1шт.

10

A23883

KNOB

- indicator

1шт.

11

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Indicator 3/16" x 1 3/8", Slotted

1шт.

12

A26862

OIL SEAL

SEAL - oil, gear shift (7/8 x 1-1/2 x 25/64")

1шт.

13

A23878

SHAFT - gear shift

1шт.

18

A23873

COVER - transmission case

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- cover (1/2 x 1-3/4" N.C. hex.)

1шт.

20

92-8

LOCK WASHER,1/2"

7шт.

21

A10031

GASKET

- transmission cover

1шт.

22

A27173

BREATHER

- transmission

1шт.

23

A23877

ADAPTER - transmission breather

1шт.

24

A23879

ARM - gear shifter and neutral switch contact bar

1шт.

25

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Arm #A, 1/4" x 7/8", HT

1шт.

26

A29913

BOLT - gear shift arm

1шт.

27

25-236

SLOTTED NUT,3/8"-24, G5, Thk

NUT (3/8" N.F. hex., sltd.)

1шт.

28

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

29

A20990

SWITCH

- safety, neutral start

1шт.

30

A20991

BOOT

- dust seal, safety switch

1шт.

31

A21394

CONTACT - safety switch

1шт.

32

A21393

ADAPTER - safety switch

1шт.

33

A20989

LOCK NUT

NUT - lock, adapter

1шт.
