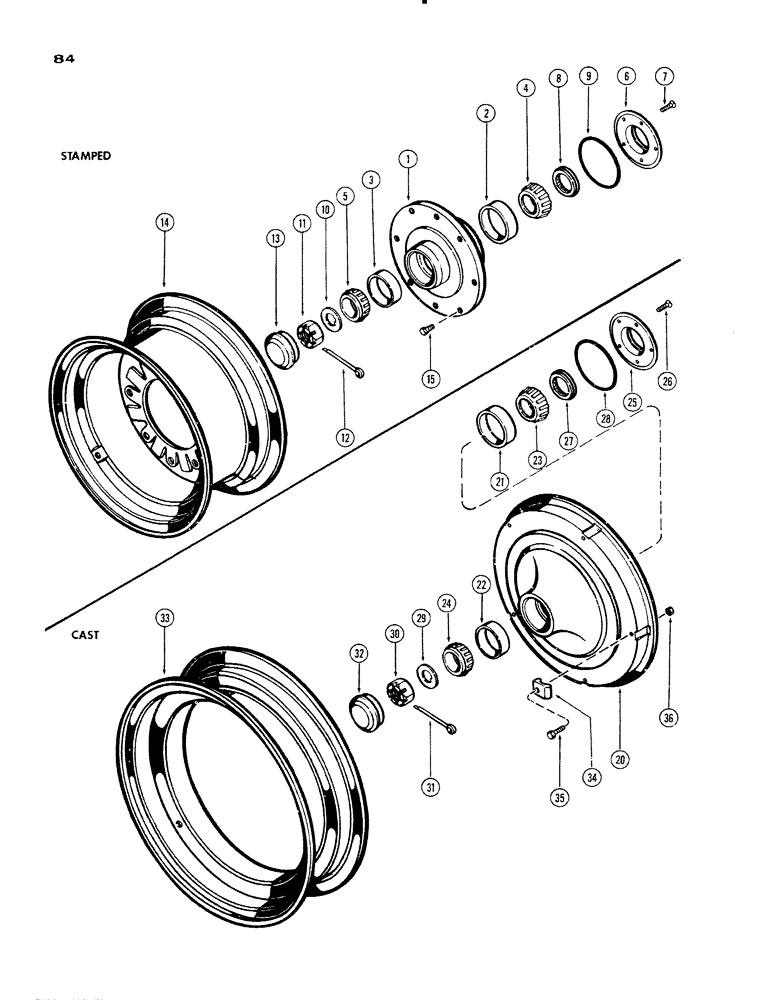

Запчасти Case IH 930-SERIES (084) - FRONT WHEELS, STAMPED WHEELS (06) - POWER TRAIN

1

A33434

HUB ASSY - front wheels, Includes: Ref. 2 and 3

2шт.

2

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner

1шт.

3

A27631

CUP

- bearing, outer

1шт.

4

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner

2шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer

2шт.

6

A27140

RETAINER

- oil seal

2шт.

7

74-410

SCREW,Slotted Flat Hd, 1/4"-28 x 5/8"

- retainer (1/4 x 5/8" N.F., flat hd.)

10шт.

8

A27139

SEAL

- oil, frt. brgs (2-15/32 x 3-15/64 x 1/2")

2шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8")

2шт.

10

A26789

BEARING WASHER

WASHER - outer brg. ret.

2шт.

11

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F., sltd.)

2шт.

12

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

A29425

CAP

- hub

2шт.

14

A33462

WHEEL

RIM - frt. wheel (Takes 10.00 x 16 tire)

2шт.

ANOTHER RIM USED (NOT A SUB) A34912

1шт.

15

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

20

A33351

WHEEL

ASSY - hub, cast, Includes: Ref. 21 and 22

2шт.

21

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, cast wheels

1шт.

22

A27631

CUP

- bearing, outer, cast wheels

1шт.

23

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, cast wheels

2шт.

24

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, cast wheels

2шт.

25

A27140

RETAINER

- oil seal, cast wheels

2шт.

26

74-410

SCREW,Slotted Flat Hd, 1/4"-28 x 5/8"

- retainer (1/4 x 5/8" N.F. flat. hd.), cast wheels

10шт.

27

A27139

SEAL

- oil, front brgs. (2-15/32 x 3-15/64 x 1/2"), cast wheels

2шт.

28

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), cast wheels

2шт.

29

A26789

BEARING WASHER

WASHER - outer brg. ret., cast wheels

2шт.

30

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.), cast wheels

2шт.

31

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Cast wheels 3/16" x 1 3/4"

2шт.

32

A29425

CAP

- hub, cast wheels

2шт.

33

A27257

RIM

(Takes 5.50 x 18 tire), cast wheels

2шт.

34

A27228

CLAMP

- rim to wheel, cast

10шт.

35

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp (1/2 x 3-1/2" N.F. hex.), cast wheels

10шт.

36

25-178

NUT,1/2"-20, G5, Hvy

(1/2" N.F. hex.), cast wheels

10шт.
