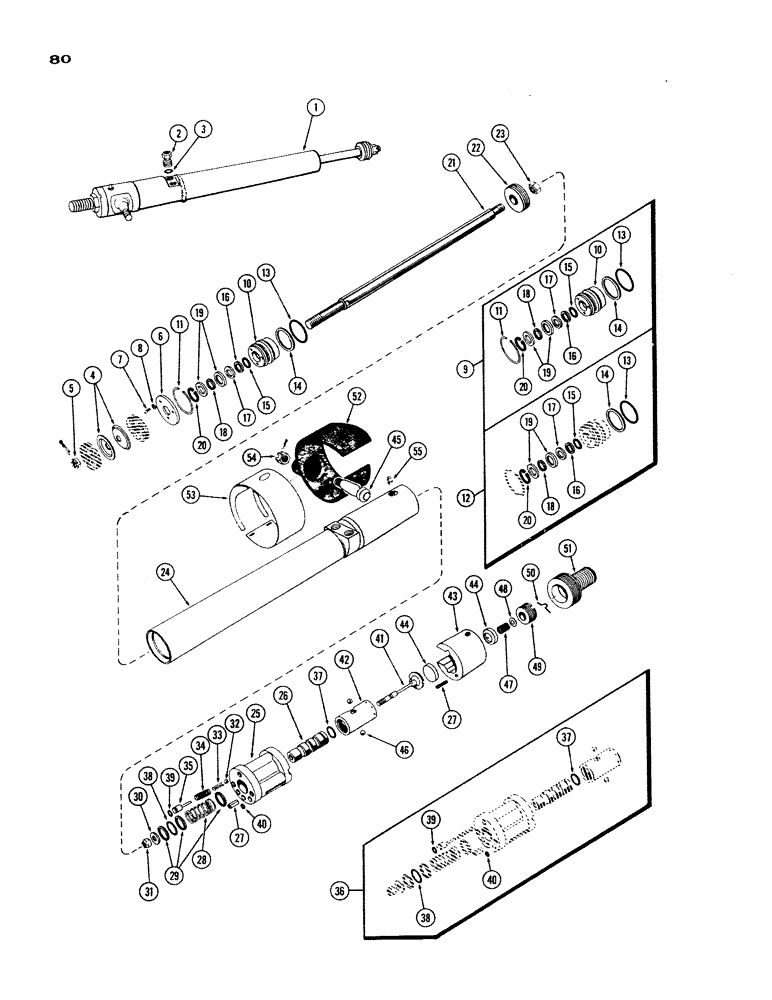

Запчасти Case IH 930-SERIES (080) - A34791 POWER STEERING CYLINDER, FIRST USED TRACTOR SERIAL NUMBER 8289220 (05) - STEERING

1

A34791

CYLINDER ASSY. - (Ross #VC28504 A8-1200), Includes: Ref. 2 - 42

1шт.

2

A16641

ADAPTER

ASSY. - power str. lines, Includes: Ref. 3

2шт.

3

A16640

X

"O" RING - adapter (15/32 x 5/8 x 5/64")

1шт.

4

A21938

RETAINER

- cushion

2шт.

5

25-138

SLOTTED NUT,1/2"-20, G5

NUT - retainer (1/2" N.F. hex., std.)

1шт.

6

A35887

PLATE ASSY.

PLATE - cylinder end cover

1шт.

7

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- plate ret. (#10 x 1/2" N.F. pan hd.)

3шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

9

A24973

GLAND

REPAIR KIT, Includes: Ref. 10 - 20

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND (Order A24973)

1шт.

11

A35885

RING

- snap, gland retaining

1шт.

12

A36396

SEAL KIT

SEAL KIT - rod end, Includes: Ref. 13 - 20

1шт.

13

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - gland, outer (1-3/4 x 2 x 1/8")

1шт.

14

A35884

WASHER

RING - outer "o" ring back-up

1шт.

15

A11060

O-RING

"O" RING - gland, inner

1шт.

16

A35879

RING

- inner "o" ring back-up

1шт.

17

F9886

WASHER

- "O" ring ret. (11/16 x 55/64 x 1/32")

1шт.

18

A11061

SEAL

- oil, gland (11/16 x 1 x 1/4")

1шт.

19

F9887

WASHER

- oil seal (11/16 x 1 x 16 Ga.)

2шт.

20

A35882

X

RING - snap, oil seal ret.

1шт.

21

A24751

PISTON

ROD - piston

1шт.

22

A56226

PISTON ASSY.

1шт.

23

230-4616

LOCK NUT,3/8"-24, GA

NUT - piston ret. (3/8" N.F., self-locking)

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE & HEAD ASSY. - (Order A34791), Includes: Ref. 25 - 33

1шт.

25

NSS

NOT SOLD SEPARAT

BODY (Order A40969)

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL (Order A40969)

1шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Body locating 1/4" x 1/2", Slotted

2шт.

28

A40968

SPRING

- valve spool (10 coils, 2-3/16" free length)

1шт.

29

A24829

WASHER

- spool centering (25/32 x 31/32 x 3/64")

3шт.

30

A24825

WASHER

- spring ret. (5/16 x 27/32 x 13 Ga.)

1шт.

31

131-3

LOCK NUT,5/16"-24, GB

NUT - rod ret. (5/16" N.F., self-locking)

1шт.

32

211-7

BALL,1/4" Dia

1шт.

33

F5712

SPRING

- plug, inner (1-1/4" free length)

1шт.

a

40969

BODY & SPOOL ASSY. - (not illust.), Includes: Ref. 34 - 42

1шт.

34

A24827

VALVE SPRING

SPRING - plug, outer (1' free length)

1шт.

35

A24814

PLUG

- valve body

1шт.

36

A25561

SEAL

KIT - valve end, Includes: Ref. 37 - 40

1шт.

37

A24817

O-RING,0.744" ID x 7" OD

"O" RING - spool, rear (47/64 x 55/64 x 5/64")

1шт.

38

A24813

O-RING,.760" ID x .107" Thk

"O" RING - spool, front

1шт.

39

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - plug (1/4 x 3/8 x 1/16")

1шт.

40

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Body (Replaces A11026)

4шт.

41

A24819

HOSE

ROD - flexure

1шт.

42

A24818

SHELL

- stud socket

1шт.

43

A24824

HOUSING

- stud shell

1шт.

44

A24820

SEAT

- stud

2шт.

45

A24812

STUD

ASSY., Includes: Ref. 46

1шт.

46

211-12

BALL,7/16 Dia

- stud pivot (7/16" dia.)

2шт.

47

A24821

SPRING

- stud seat tension

1шт.

48

195-18

WASHER,1/4"

- spring seat (9/32 x 5/8 x 1/16")

1шт.

49

A24823

PLUG

- spring adj.

1шт.

50

A24822

PIN

- lock, adjusting plug

1шт.

51

A24826

CAP - cylinder end

1шт.

52

A24811

SEAL

SHIELD - dust

1шт.

53

A24810

RETAINER

- dust shield

1шт.

54

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - stud (5/8" N.C. hex., sltd.)

1шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
