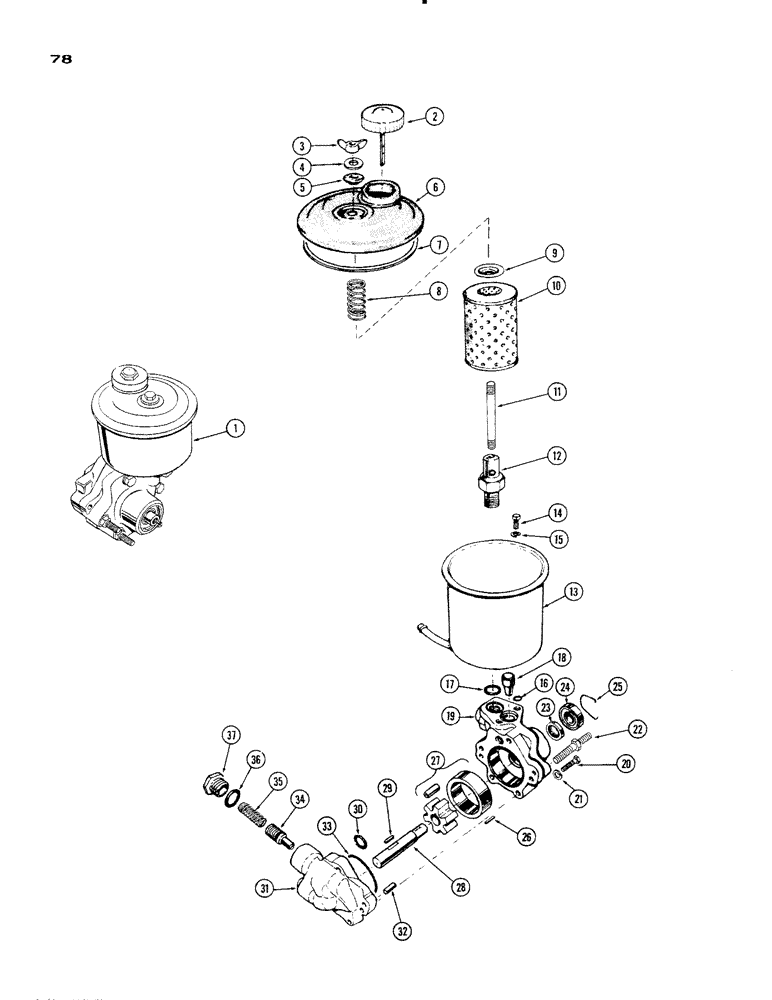

Запчасти Case IH 930-SERIES (078) - A33059 POWER STEERING PUMP (05) - STEERING

1

A33059

PUMP ASSM - power strg., Includes: Ref. 2 - 37

1шт.

2

A24137

GAUGE ASSY.

CAP - filler (includes gauge)

1шт.

3

A24139

NUT

- cover ret. (5/16" N.C. wing)

1шт.

4

A30831

WASHER

- cover nut (3/8 x 7/8 x 3/32")

1шт.

5

A30830

GASKET

- cover stud

1шт.

6

A24136

COVER ASSM - reservoir, Includes: Ref. 7

1шт.

7

A24138

GASKET

-, Serial Range: cover-reservoir

1шт.

8

A40000

SPRING

- element tension

1шт.

9

A22714

SEAT

- element spring

1шт.

10

A18061

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

11

A24140

STUD

- cover ret.

1шт.

12

A20523

STUD

- reservoir ret.

1шт.

13

A40003

TANK

RESERVOIR - oil

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

A11026

GASKET

- body (11/32 x 29/64 x 1/16" rubber)

2шт.

17

A11027

GASKET

GASEKT - body (53/64 x 61/64 x 7/64" rubber)

2шт.

18

A20526

VENTURI

- body

1шт.

19

A20517

BODY ASSM - pump, w/bshgs.

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Body Hex, 3/8"-16 x 2", G5

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A20527

STUD - body

3шт.

23

A30838

OIL SEAL

- oil, pump shaft

1шт.

24

A30835

BEARING

- pump shaft

1шт.

25

A20524

RING, SNAP

RING - snap, brg. ret.

1шт.

26

A20528

PIN

- impeller cam

1шт.

27

A20519

X

IMPELLER KIT - oil

1шт.

28

A20510

SHAFT

- pump

1шт.

29

A30839

AXLE PIN

KEY - impeller

1шт.

30

A20514

O-RING

"O" RING - by-pass port

1шт.

31

A20521

COVER

- pump w/bushings

1шт.

32

A30836

DOWEL

PIN - cover locating

2шт.

33

A20513

O-RING

"O" RING -, Serial Range: cover-body

1шт.

34

A20516

VALVE

- pressure relief

1шт.

35

A20511

SPRING

- pressure relief valve

1шт.

36

A30837

O-RING

"O" RING - relief valve cap

1шт.

37

A20512

CAP - pressure relief valve

1шт.
