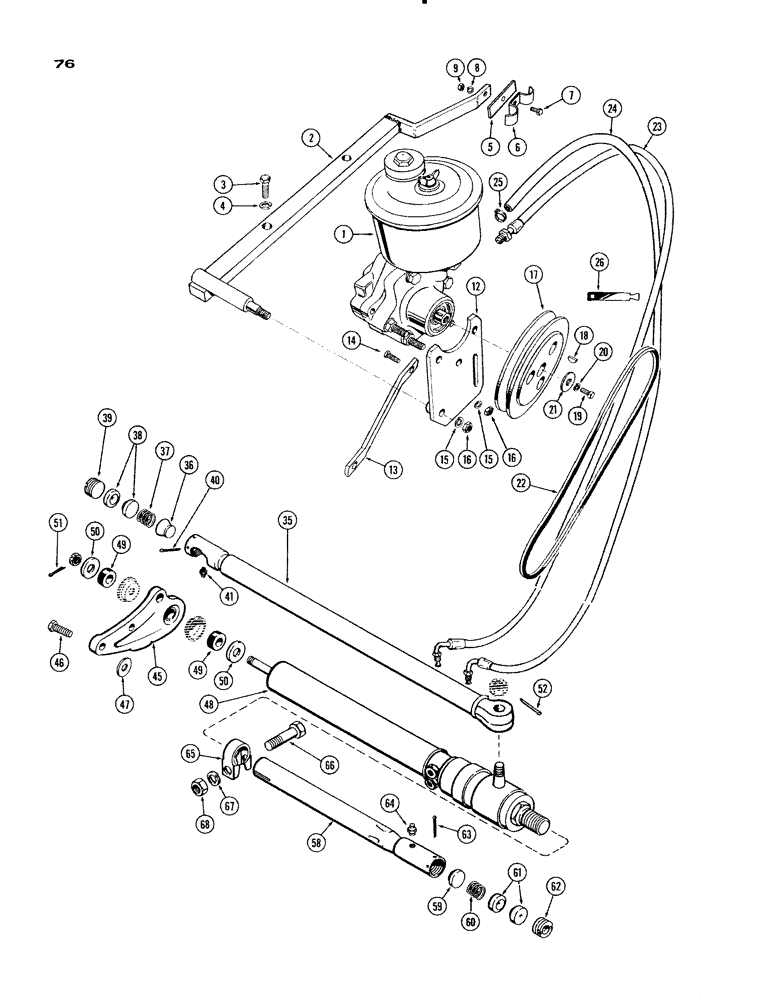

Запчасти Case IH 930-SERIES (076) - POWER STEERING PUMP (05) - STEERING

1

A33059

PUMP ASSY - power strg. (See Figure 79)

1шт.

2

A57790

SUPPORT

- pump (Replaces A24037)

1шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Support

2шт.

4

92-7

LOCK WASHER,7/16"

2шт.

5

A22141

BRACKET - hose clamp

1шт.

6

A22142

CLAMP - hose

1шт.

7

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clamp (1/4 x 3/4" N.F. hex.)

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-114

NUT,1/4"-28, G5

(1/4" N.F. hex.)

1шт.

12

A21736

PLATE - pump mounting

1шт.

13

A21740

STRAP - pump mounting

1шт.

14

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- adj. strap (3/8 x 1" N.F. hex.)

1шт.

15

92-6

LOCK WASHER,3/8"

5шт.

16

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

5шт.

17

A8186

PULLEY

- pump drive

1шт.

18

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

A34092

WASHER

(11/32 x 1 x 3/16")

1шт.

22

A22766

BELT,30.00" L

Pulley Drive 30.00" L

1шт.

23

A24386

HOSE

- pressure

1шт.

24

A24385

HOSE

- return

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

26

A22926

CLAMP

- hose (strap type)

2шт.

35

A24739

DRAG LINK ASSY - rear, Includes: Ref. 36 - 41

1шт.

36

A26767

SEAT

- bearing spring pilot, drag links

1шт.

37

A26630

VALVE SPRING

SPRING - bearing tension, drag links

1шт.

38

A26629

BEARING

- ball seat, drag links

2шт.

39

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - bearing ret., drag links

1шт.

41

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease (1/4" P.T. str.), Drag links

1шт.

45

A22948

BRACKET - cylinder mtg., drag links

1шт.

46

A22176

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

- mtg. brkt., drag links

1шт.

46

A22177

SCREW,Hex, 1/2" - 13 x 2 3/4", Gr 5

BOLT - mtg. brkt., drag links

1шт.

47

A23264

WASHER - mtg. bolt (25/64 x 31/32 x 5/32"), drag links

1шт.

48

A34791

CYLINDER ASSY. - power strg. (See Figures 81 and 81A), drag links

1шт.

49

A35654

GROMMET

CUSHION - strg. cyl. (1/2 x 1-1/4 x 1/2" rubber), drag links

2шт.

50

A24978

RETAINER

- str. cyl. cushion (1/2 x 1-3/8 x 5/32"), drag links

2шт.

51

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), , Drag links 1/8" x 7/8"

1шт.

52

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Drag links 1/8" x 1 1/2"

1шт.

58

A21445

LINK ASSY.

DRAG LINK ASSY - front, Includes: Ref. 59 - 64

1шт.

59

A26767

SEAT

- bearing spring pilot, drag links

1шт.

60

A26630

VALVE SPRING

SPRING - bearing tension, drag links

1шт.

61

A26629

BEARING

- ball seat, drag links

2шт.

62

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - bearing ret., drag links

1шт.

64

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), drag links

1шт.

65

A23133

CLAMP

- str. cyl. to drag link

1шт.

66

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- clamp (5/8 x 2-3/4" N.F. hex.), drag links

1шт.

67

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drag links 5/8"

1шт.

68

25-1110

NUT,5/8"-18, G5

(5/8" N.F. hex.), drag links

1шт.

40

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Drag links 1/8" x 2"

1шт.

63

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Drag links 1/8" x 2"

1шт.
