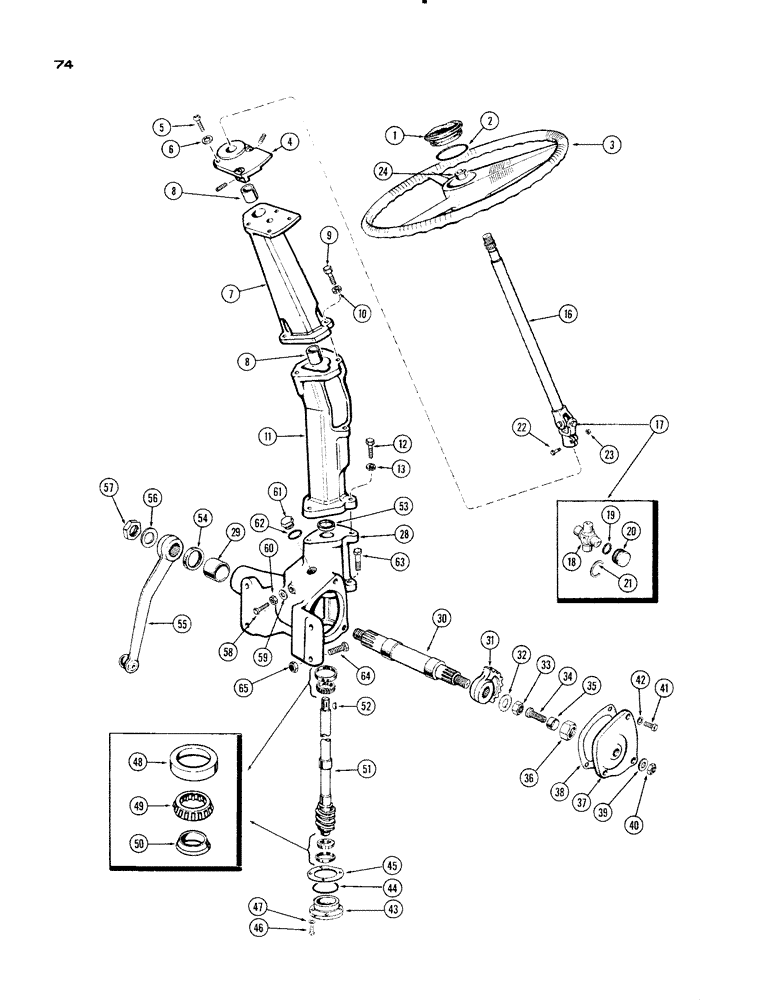

Запчасти Case IH 930-SERIES (074) - STEERING GEAR (05) - STEERING

1

A20475

CAP

MEDALLION - steering wheel

1шт.

2

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/8 x 2-3/4 x 1/8")

1шт.

3

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

4

A33147

CAP - steering column

1шт.

5

173-254

SCREW,Phil Rnd Hd, 5/16" - 18 x 1 3/4"

- cap (5/16 x 1-3/4" rd. hd., phillips)

3шт.

6

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

3шт.

7

A33266

COLUMN ASSY. - steering

1шт.

8

A27108

BUSHING

1шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Steering column Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

10

92-8

LOCK WASHER,1/2"

3шт.

11

A33444

SUPPORT - steering column

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

13

92-8

LOCK WASHER,1/2"

3шт.

16

A23915

SHAFT

ASSY - steering, Includes: Ref. 17 - 21

1шт.

17

A30435

KIT

JOINT ASSM - universal (Replaces A20684), Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

CROSS - center (Order A20684)

1шт.

19

F62222

WASHER - brg. seat (Cork)

4шт.

20

NSS

NOT SOLD SEPARAT

BEARING (Order A20684)

4шт.

21

A31149

RING, SNAP

RING - snap, brg. ret.

4шт.

22

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Yoke Hex, 3/8"-16 x 1 3/4", G5

1шт.

23

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

1шт.

24

25-1512

JAM NUT,Jam, 3/4"-10, G5

- strg. shaft (3/4" N.F. half hex.)

1шт.

28

A23893

HOUSING ASSY - steering gear, Includes: Ref. 29

1шт.

29

A22125

BUSHING

- hsg. (1-7/8 x 2 x1-1/16")

1шт.

30

A23895

SHAFT - cross

1шт.

31

A23896

GEAR

- steering sector

1шт.

32

195-59

WASHER,1 5/16" x 2 3/4" x .165"

(1-5/16 x 2-3/4 x 5/32")

1шт.

33

131-307

NUT (1-1/4" N.F. self-locking)

1шт.

34

A23899

SCREW,Hex, 1/2" - 13 x 1 29/32"

- adjusting, str. arm

1шт.

35

A23897

SPACER

- adj. screw (1 x 1-1/8 x 1/4")

1шт.

36

A23898

COLLAR - cross shaft adj.

1шт.

37

A23901

COVER - strg. gear hsg.

1шт.

38

A23900

GASKET

- hsg. cover

1шт.

39

A11557

GASKET

WASHER - adj. screw (33/64 x 7/8 x 3/64" cpr.)

1шт.

40

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT (1/2" N.C. hex., self- locking)

1шт.

41

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Cover Hex, 7/16"-14 x 1 1/4", G5, Full Thd

3шт.

42

92-7

LOCK WASHER,7/16"

3шт.

43

A23908

CARRIER

- worm shaft brg.

1шт.

44

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk - Carrier (2-3/16 x 2-3/8 x 3/32")

1шт.

45

A23905

SHIM,.003" Thk

Carrier .003" Thk

1шт.

45

A23906

SHIM,.005" Thk

Carrier .005" Thk

1шт.

45

A23907

SHIM,.010" Thk

Carrier .010" Thk

1шт.

46

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Carrier Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

47

92-5

LOCK WASHER,5/16"

4шт.

48

A27172

BEARING, CUP,49.21mm OD x 15.88mm W

CUP - bearing, worm shaft

2шт.

49

A27170

BEARING, ROLLER, CYL,25.4mm ID x 11.15mm W

ROLLERS - bearing, worm shaft

2шт.

50

A27171

CONE

- bearing, worm shaft

2шт.

51

A23902

GEAR

SHAFT - steering worm

1шт.

52

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY (#11 Woodruff)

1шт.

53

A23903

OIL SEAL

- oil, str. gear hsg. (1 x 1-1/2 x 1/4")

1шт.

54

A22124

OIL SEAL

SEAL - oil, strg. gear hsg. (1-15/32 x 2 x 5/16")

1шт.

55

A10038

ARM - steering

1шт.

56

195-53

WASHER,1" x 2" x .134"

(1-1/16 x 2 x 5/32")

1шт.

57

25-1516

NUT,Jam, 1"-14, G5

(1" N.F. half hex.)

1шт.

58

A20687

X

SCREW - adjusting, worm shaft

2шт.

59

A11557

GASKET

WASHER - adj. screw (33/64 x 7/8 x 3/64" cpr.)

2шт.

60

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - adj. screw (1/2" N.C. hex, self-locking)

2шт.

61

A27927

OIL PAN GASKET SET

- oil filler

1шт.

62

A27927

OIL PAN GASKET SET

- oil filler plug

1шт.

63

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

64

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Housing, R.H. side Hex, 1/2"-13 x 2", G5

1шт.

64

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hsg., L.H. side (1/2 x 2-1/4" N.C. hex.)

1шт.

65

25-108

NUT,1/2"-13, G5

(1/2" N.C. hex.)

2шт.
