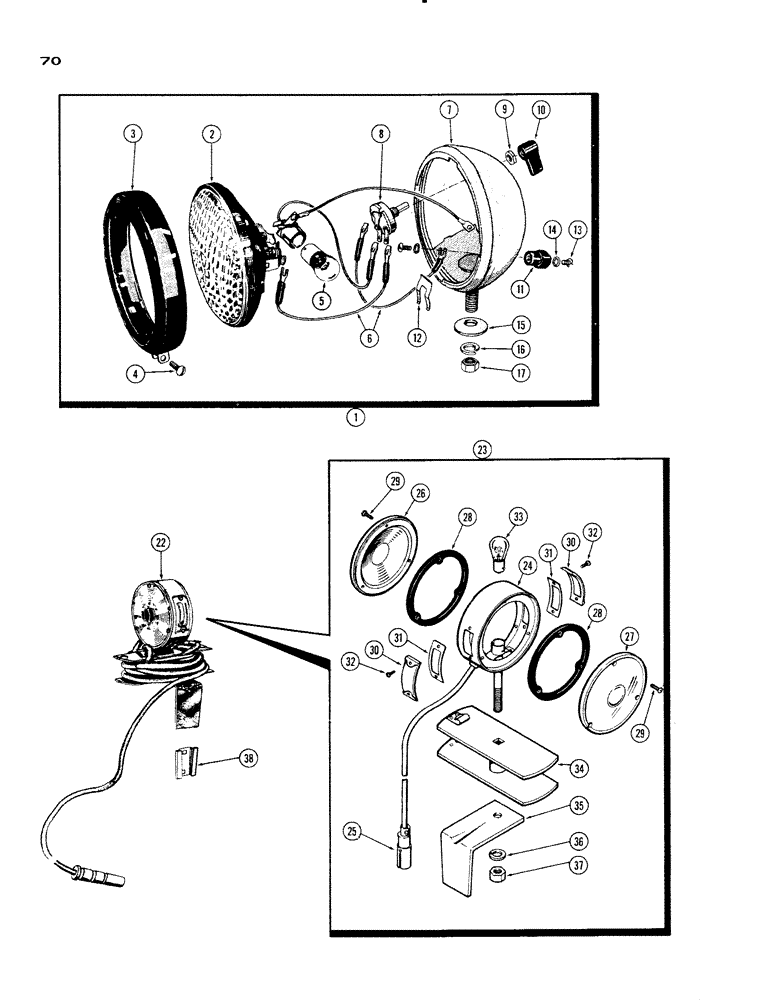

Запчасти Case IH 930-SERIES (070) - LIGHTING EQUIPMENT, A20965 TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

A20965

LAMP BASE

LAMP ASSM - tail and stop, Includes: Ref. 2 - 17

1шт.

2

A40855

LAMP BASE

LAMP ASSY. - sealed beam unit (Replaces B50335) (Replaces A40885)

1шт.

3

B50255

MOLDING

- lamp retaining

1шт.

4

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding retaining

1шт.

5

B50223

BULB

- warning light (15 c.p.)

1шт.

6

B50273

WIRE - lamp switch

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A20965)

1шт.

8

B50275

SWITCH

- lamp control

1шт.

9

B50224

SPECIAL NUT

- switch retaining

1шт.

10

B50310

SWITCH

KNOB - switch control

1шт.

11

B50293

TERMINAL CONNECTOR

TERMINAL ASSY - lamp wire, Includes: Ref. 12 - 14

1шт.

12

10927

SPRING

- terminal retaining

1шт.

13

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- lamp wire terminal

2шт.

14

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

15

10923

WASHER

- lamp bearing

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-118

NUT,1/2"-20, G5

(1/2" N.C. hex.)

1шт.

22

A11066M

WARNING LAMP ATTACHMENT, A11066, Includes: Ref. 23 - 38

1шт.

23

A8178

LAMP ASSY (Order A11066M), A11066 warning, Includes: Ref. 24 - 37

1шт.

24

NSS

NOT SOLD SEPARAT

BODY ASSY - w/cord (Order A11066M), A11066 warning lamp, Includes: Ref. 25

1шт.

25

B50259

PLUG

- auxiliary socket, A11066 warning lamp

1шт.

26

B50337

LENS

- lamp (Amber), A11066 warning

1шт.

27

B53962

LENS

- lamp (red), A11066 warning

1шт.

28

B50317

GASKET - lens, A11066 warning lamp

2шт.

29

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens ret. (#6 x 1/2" rd. hd.), A11066 warning lamp

6шт.

30

B50328

LENS - lamp, side, A11066 warning

2шт.

31

B50329

GASKET - side lens, A11066 warning lamp

2шт.

32

182-43

SCREW - side lens ret. (#6 x 5/16" pan hd.), A11066 warning lamp

4шт.

33

33686

BULB

- lamp (21 C.P.), A11066 warning

1шт.

34

B50330

SPOOL - cable storage, A11066 warning lamp

1шт.

35

B50331

BRACKET - lamp attaching, A11066 warning

1шт.

36

92-7

LOCK WASHER,7/16"

A11066 warning lamp 7/16"

1шт.

37

25-117

NUT,7/16"-20, G5

- lamp ret. (7/16" N.F. hex.), A11066 warning

1шт.

38

A8179

SOCKET

- lamp mounting, A11066 warning

1шт.
