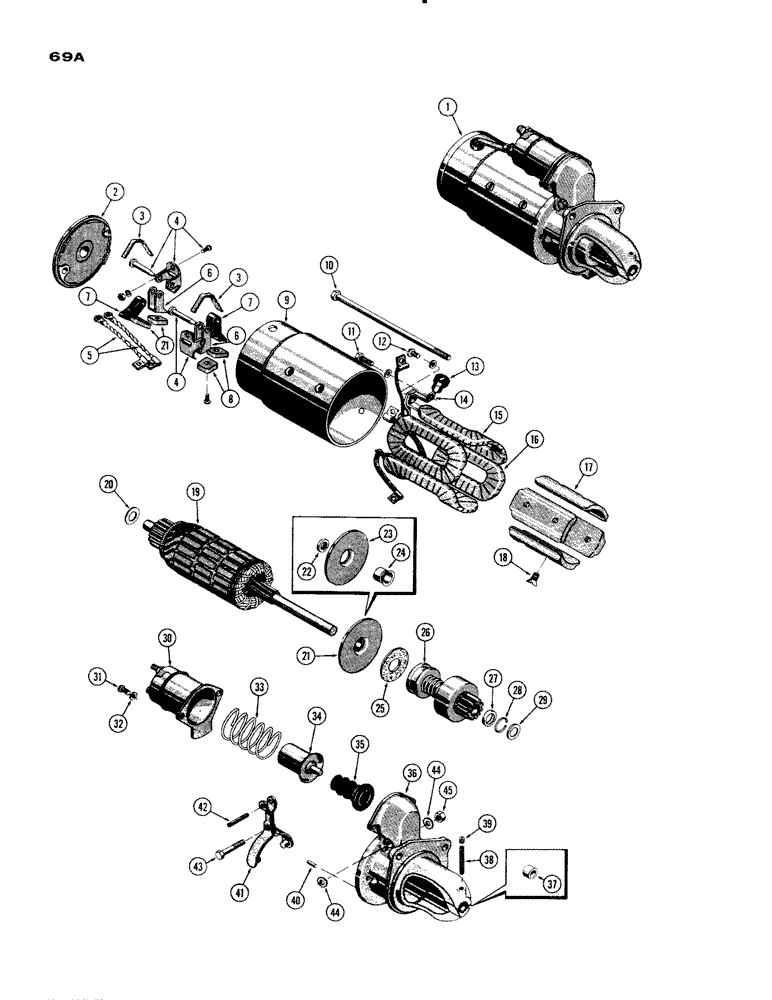

Запчасти Case IH 930-SERIES (069A) - A20873 STARTER, (377) SPARK IGNITION ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 8314293 (04) - ELECTRICAL SYSTEMS

1

A20873

STARTER ASSY (Delco-Remy #1107877), Includes: Ref. 2 - 45

1шт.

2

A25302

FUNNEL

FRAME ASSY - commutator end

1шт.

3

A25359

SPRING

- brush tension

2шт.

4

A25379

KIT

HOLDER KIT - brush, Includes: Ref. 5

2шт.

5

A25363

ELECTRICAL WIRE

LEAD - ground, brush

2шт.

6

A40217

HOLDER

- ground brush

2шт.

7

R15027

HOLDER

- insulated brush

2шт.

8

A20893

BRUSH

- starter

4шт.

9

NSS

NOT SOLD SEPARAT

BODY - starter (Order A20873), Includes: Ref. 10

1шт.

10

A25375

X

BOLT - thru, starter

2шт.

11

NSS

NOT SOLD SEPARAT

BOLT -, Serial Range: connector-switch

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET - field frame

1шт.

14

A25369

CONNECTOR - starter switch

1шт.

15

A25317

COIL

ASSY - field

1шт.

16

A25404

SHUNT - coil

2шт.

17

A25390

SHOE - pole, Includes: Ref. 17

4шт.

18

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

19

A25314

ARMATURE

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - brake, comm. end

1шт.

21

A25549

PLATE

ASSY. - center brg. (Replaces A25331), Includes: Ref. 22 - 24

1шт.

22

A25409

SEAL

SEAL - oil, ctr. brg.

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - brg. plate

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - ctr. brg.

1шт.

26

B53941

X

DRIVE ASSY - bendix

1шт.

27

R15049

COLLAR

- pinion stop

1шт.

28

R15048

RING

- retainer, pinion stop

1шт.

29

A25385

WASHER

COLLAR - thrust, pinion stop

1шт.

30

G44891

SOLENOID

SWITCH ASSY - solenoid

1шт.

31

NSS

NOT SOLD SEPARAT

BOLT - switch, ret.

2шт.

32

NSS

NOT SOLD SEPARAT

WASHER - lock, switch ret. nut

2шт.

33

A40221

SPRING

- plunger (Replaces A25396)

1шт.

34

A40218

PLUNGER

- solenoid (Replaces A25395)

1шт.

35

A25410

BOOT

- solenoid switch

1шт.

36

A25349

HOUSING ASSY. - drive end, Includes: Ref. 37 - 40

1шт.

37

A25389

BUSHING

- drive hsg.

1шт.

38

NSS

NOT SOLD SEPARAT

WICK - oil., drive hsg.

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG - oil, wick hole

1шт.

40

NSS

NOT SOLD SEPARAT

PIN - dowel, drive hsg. locating

1шт.

41

A25397

LEVER

- shifter

1шт.

42

A25399

X

PIN -, Serial Range: lever-plunger

1шт.

43

A25401

BOLT - lever pivot

1шт.

44

NSS

NOT SOLD SEPARAT

WASHER - ext./skpf., pivot bolt

2шт.

45

NSS

NOT SOLD SEPARAT

NUT - pivot bolt

1шт.
