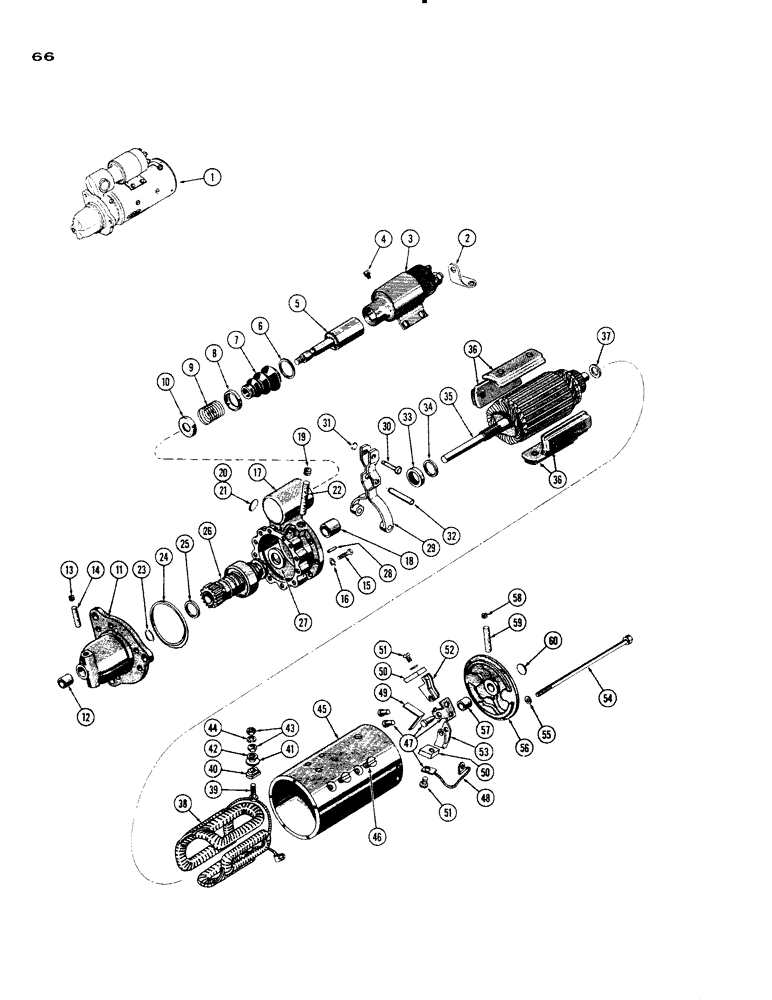

Запчасти Case IH 930-SERIES (066) - A23688 STARTER, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A23688

SPARE PART STARTER ASSY (Delco-Remy #1113646), Includes: Ref. 2 - 60

1шт.

2

A25370

CONNECTOR, ELEC

CONNECTOR CONNECTOR - starter switch

1шт.

3

A40461

IGNITION SWITCH

SWITCH - solenoid, starter (Replaces A23564)

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - attach., switch

4шт.

5

A25394

PLUNGER

PLUNGER - solenoid switch

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - retainer, spring

1шт.

7

R21576

BOOT

RETAINER - plunger spring

1шт.

9

R21569

X

SPRING - plunger

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plunger spring

1шт.

11

A25341

SPARE PART HOUSING ASSY - drive, starter, Includes: Ref. 12 - 14

1шт.

ANOTHER STARTER ASSY WAS USED(A34885) REF#11A PART A25347 IS THE HOUSING ASSY USED.

1шт.

12

A40868

BUSHING

BUSHING - housing (Replaces R15046)

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - pipe, oil wick

1шт.

14

NSS

NOT SOLD SEPARAT

WICK - oil, housing

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - attach, drive housing

4шт.

16

NSS

NOT SOLD SEPARAT

WASHER - seal, housing bolt

1шт.

17

A25405

HOUSING

HOUSING ASSY - lever, Includes: Ref. 18 - 22

1шт.

18

A40944

BUSHING

BUSHING - lever housing

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - pipe, oil wick

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - expansion, hsg. (1-3/16" dia.)

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - expansion, hsg. (1/2" dia.)

1шт.

22

NSS

NOT SOLD SEPARAT

WICK - oil, hsg.

1шт.

23

R15048

RING

RING - pinion stop

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET - drive hsg. to lever hsg.

1шт.

25

R15049

COLLAR

COLLAR - pinion stop

1шт.

26

A25338

DRIVE

DRIVE ASSY - starter

1шт.

26

87421542

REMAN-STARTER DRIVE

Drive Assy, Starter

1шт.

26

87421543

CORE-STARTER

Return Part Number

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - brake, lever and drive hsg.

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - dowel, lever, Serial Range: hsg.-body

1шт.

29

A25398

LEVER

LEVER - shifter, drive

1шт.

30

A25400

PIN

PIN - shift, Serial Range: lever-plunger

1шт.

31

A25406

OIL SEAL

RING - lever pin

1шт.

32

A25402

STUD

STUD - shift lever

1шт.

33

A25407

OIL SEAL

SEAL - oil, lever hsg.

1шт.

NOT USED IN A34885 STARTER ASSY.

1шт.

34

NSS

NOT SOLD SEPARAT

SPACER -, Serial Range: armature-hsg.

1шт.

35

A40800

ARMATURE

ARMATURE - starter (Replaces A25312)

1шт.

36

R15115

SHOE

SHOE - pole, starter

4шт.

37

NSS

NOT SOLD SEPARAT

SPACER - arm to comm. end

1шт.

38

R21557

COIL ASSY.

COIL - field

1шт.

39

R15017

STUD

STUD - terminal

1шт.

40

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - insulated, term. stud

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - plain, term. stud

1шт.

43

NSS

NOT SOLD SEPARAT

NUT - terminal stud

2шт.

44

NSS

NOT SOLD SEPARAT

LOCKWASHER - term. stud

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - starter (Order A23688)

1шт.

46

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

47

R15029

BRUSH

HOLDER KIT - brush, Includes: Ref. 48

1шт.

48

R15030

ELECTRICAL WIRE

WIRE LEAD - ground brush

2шт.

49

R15025

SPRING

SPRING - brush

2шт.

50

A20897

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

51

NSS

NOT SOLD SEPARAT

SCREW - brush attaching

4шт.

52

R21590

HOLDER

HOLDER - insulated, brush

2шт.

53

A40217

HOLDER

HOLDER - grounded, brush (Replaces R15026)

2шт.

54

A25373

BOLT

BOLT - thru, starter

2шт.

55

NSS

NOT SOLD SEPARAT

LOCKWASHER - thru bolt

2шт.

56

R15019

FUNNEL

FRAME FRAME ASSY - commutator end, Includes: Ref. 57 - 60

1шт.

57

R15020

BUSHING

BUSHING - comm. end

1шт.

58

NSS

NOT SOLD SEPARAT

PLUG - pipe, oil wick

1шт.

59

NSS

NOT SOLD SEPARAT

WICK - oil, comm. end

1шт.

60

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.
