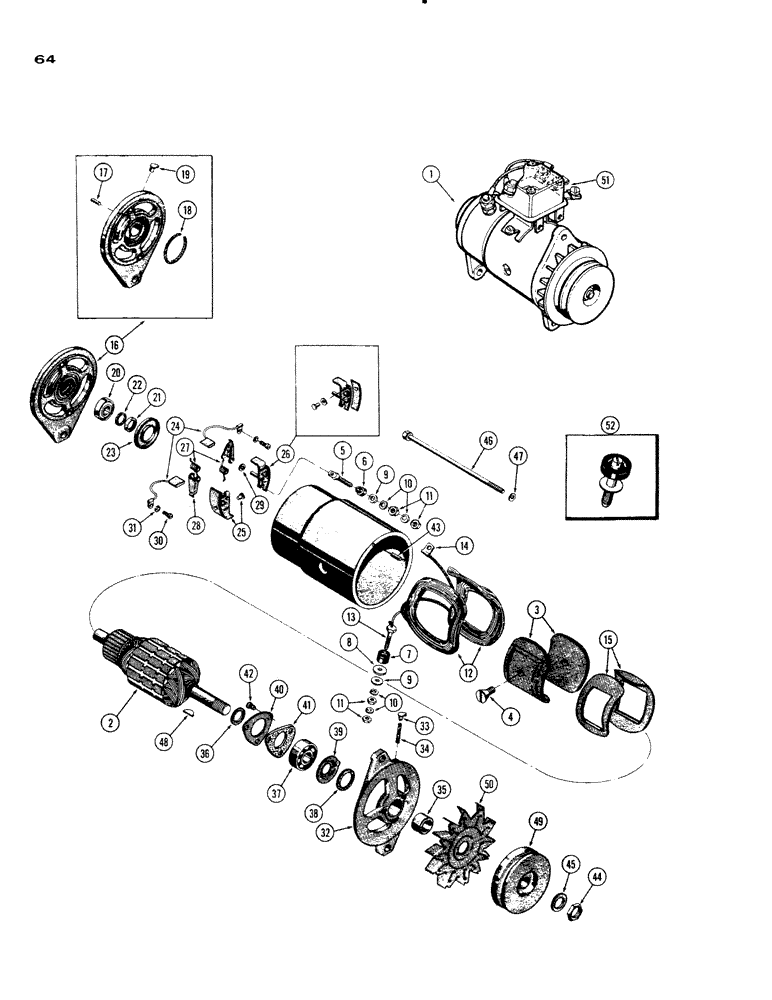

Запчасти Case IH 930-SERIES (064) - A33983 GENERATOR (04) - ELECTRICAL SYSTEMS

1

A33983

GENERATOR

ASSY. - eng. (Delco-Remy #1100444), Includes: Ref. 2 - 50

1шт.

2

A40377

ARMATURE

ASSY - generator

1шт.

3

A40700

SHOE - generator pole (Replaces R16145)

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - shoe pole

2шт.

5

R16146

X

STUD - terminal "A"

1шт.

6

R16147

BUSHING

- term. "A" insulator

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - term. "F" insulator (Order Ref. 52)

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulation, term. stud (Order Ref. 52)

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - plain, term stud

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock, term. stud

4шт.

11

NSS

NOT SOLD SEPARAT

NUT - term. stud

4шт.

12

R16149

COIL ASSY.

COIL ASSY - field, Includes: Ref. 13 and 15

1шт.

13

R16150

X

STUD - term, "F"., field coil (See Ref. 52)

1шт.

15

R16152

INSULATOR

- field coil

2шт.

16

A25413

HOUSING

ASSY - commutator end, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - dowel, comm. end

1шт.

18

NSS

NOT SOLD SEPARAT

WICK - oil, comm. end

1шт.

19

NSS

NOT SOLD SEPARAT

OILER - comm. end

1шт.

20

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, comm. end

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - ball, comm. end

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - felt retainer

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - felt, comm. end

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH - main

2шт.

25

A40703

NOZZLE HOLDER

HOLDER - ground brush

1шт.

26

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

- brush

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - spacer, brush arm

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

31

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead screw

2шт.

32

A25442

HOUSING

ASSY - drive end, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

OILER - housing

1шт.

34

NSS

NOT SOLD SEPARAT

WICK - oil, housing

1шт.

35

R16166

BUSHING

COLLAR - spacer, drive hsg., inner

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - spacer, drive hsg., inner

1шт.

37

G10623

BALL BEARING

BEARING - ball, drive hsg.

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - felt, drive hsg.

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

- retainer, brg., drive hsg.

1шт.

41

R16170

GASKET

- brg., retainer, hsg.

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - retainer plate

3шт.

43

NSS

NOT SOLD SEPARAT

PIN - dowel, drive hsg.

1шт.

44

A25546

NUT

- armature shaft, drive end

1шт.

45

R16171

SPRING WASHER

- lock, shaft nut

1шт.

46

R16172

BOLT

- gen. body and end hsg.

2шт.

47

NSS

NOT SOLD SEPARAT

WASHER - lock, generator bolt

2шт.

48

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive end #5, 1/8" x 5/8", HT

1шт.

49

A22366

PULLEY

- generator drive

1шт.

50

A25449

FAN

- vent, drive end

1шт.

51

A20792

REGULATOR

ASSY - voltage, gen.

1шт.

52

A40702

STUD

and BUSHING KIT

1шт.
