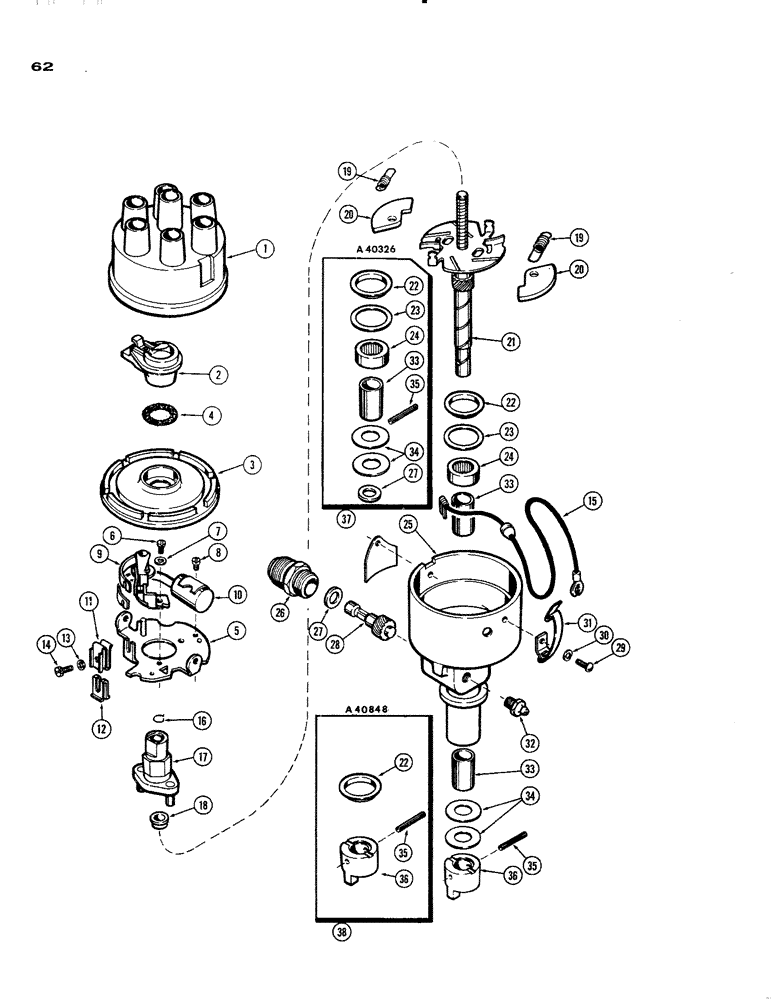

Запчасти Case IH 930-SERIES (062) - A24505 DISTRIBUTOR, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A24505

DISTRIBUTOR

ASSY ( Not illust.), Includes: Ref. 1 - 38

1шт.

1

A24565

CAP

ASSY

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY - seal, Includes: Ref. 4

1шт.

4

A24764

WASHER

- seal plate (Felt)

1шт.

5

A40330

PLATE

ASSY - breaker, Includes: Ref. 6 - 15

1шт.

6

A24776

SCREW,Locking, #8 - 32 x 3/16"

- breaker contact

1шт.

7

195-509

WASHER,3/16"

- (#8 small flat)

1шт.

8

169-56

SCREW (#6 x 3/16" N.C. fill. hd.)

1шт.

A40930

KIT

POINT and CONDENSER KIT, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

POINT SET - contact

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER

1шт.

11

A24774

CLIP

- retaining

1шт.

12

A24773

INSULATOR

INSULATION - clip screw

1шт.

13

195-506

WASHER,#6

- ( small flat) #6

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- breaker clip

1шт.

15

A24772

HARNESS

WIRE - primary

1шт.

16

A24756

RING - snap, cam retaining (See A40326)

1шт.

17

A24831

CAM - distributor

1шт.

18

A24757

SPACER - cam (See A40326)

1шт.

19

A24835

SET

SPRING SET - governor weight (Set of 2)

1шт.

20

A24754

WEIGHT - governor

1шт.

21

A24833

DRIVE SHAFT

SHAFT - drive, distributor

1шт.

22

A24759

WASHER - thrust, drive shaft outer (See A40326)

1шт.

23

A24758

WASHER - thrust, driv. shaft, inner (See A40326)

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - needle, (Order A40326)

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - distributor (Order A24505)

1шт.

26

A24781

HOUSING - shaft, tach. drive

1шт.

27

A24755

WASHER - thrust, tach. drv. shaft (See A40326)

1шт.

28

A24761

SHAFT

- drive, distr. tach.

1шт.

A40329

SPRING

CLAMP KIT - spring, dist. cap (Not illust.), Includes: Ref. 29 - 31

1шт.

29

A24779

SCREW - mtg., cap clamp & breaker plate

2шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

31

NSS

NOT SOLD SEPARAT

CLAMP - spring, dist. cap (Order A40329)

2шт.

32

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4" P.T. str.)

1шт.

33

NSS

NOT SOLD SEPARAT

BUSHING - distributor (Bronze) (Order A40326)

2шт.

34

A24834

WASHER - thrust, drive shaft (lower) (See A40326)

2шт.

35

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, 1/8" x 13/16", Slotted

1шт.

36

NSS

NOT SOLD SEPARAT

COUPLING - drive shaft (Order A40848)

1шт.

37

A40326

PACKAGE, REPAIR

BEARING KIT

1шт.

38

A40848

BOX

COUPLING KIT

1шт.
