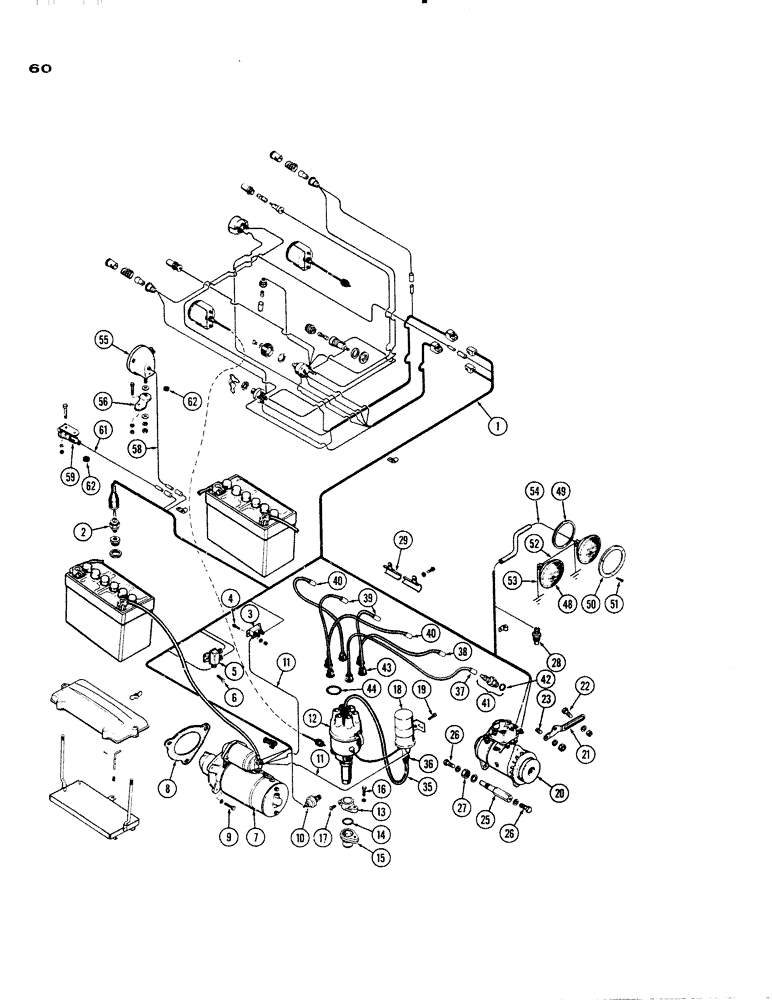

Запчасти Case IH 930-SERIES (060) - ELECTRICAL EQUIPMENT AND WIRES, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A24090

HARNESS

- wire, main, w/plugs

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

A24504

RESISTOR

- circuit ballast (12 volt)

1шт.

4

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Resistor Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

5

A22877

BREAKER,40A

- circuit

1шт.

6

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- breaker (#8 x 1/2" N.C., rd. hd.)

2шт.

7

A20873

STARTER ASSY. - (See Figure 69B) (Delco #1107877)

1шт.

7

A57092

X

STARTER ASSY. (See Figure 69) (Delco #1108340)

1шт.

8

A27933

GASKET

- starter

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

9

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Starter

1шт.

10

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

11

A22879

WIRE - coil and resistor (18" lg.)

2шт.

12

A24505

DISTRIBUTOR

ASSY (See Figure 63) (Prestolite #IBT6403)

1шт.

13

A7622

CLAMP - distributor

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mtg.

1шт.

15

A7621

INSERT - distributor

1шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Clamp Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

17

75-520

SCREW - clamp (5/16 x 1-1/4" N.C., rd. hd.)

1шт.

18

G44817

COIL

- ignition (12 volt)

1шт.

19

75-510

HANDBOOK

SCREW - coil (5/16 x 5/8" N.C. rd. hd.)

2шт.

20

A33983

GENERATOR

ASSY (See Figure 65) (Delco #1109444)

1шт.

21

A21538

STRAP

- generator adjusting

1шт.

22

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - strap (5/16 x 3/4" N.C., sckt. hd.)

1шт.

23

A7391

STUD

- adj. strap (3/8" N.C. x 1-1/8")

1шт.

25

A34887

CARRIER

- generator (tapped for 2" bolt) (1st used eng. ser. no. 2147398)

1шт.

25

A22685

X

CARRIER - generator (tapped for 1" bolt) to eng., Serial Range: -2147398

1шт.

26

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

(3/8 x 2" N.C. hex.) (used w/A34887 carrier)

2шт.

26

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(3/8 x 1" N.C. hex.) (used w/A22685 carrier)

2шт.

27

25-1112

NUT,3/4"-16, G5

- carrier (3/4" N.F. hex.)

1шт.

28

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

29

A28674

CONDUIT - wire harness

1шт.

35

A29180

CABLE

WIRE - hi-tension, coil to distributor (12" lg.)

1шт.

36

G46803

BOOT

NIPPLE - hi-tension coil wire

1шт.

37

A26768

CABLE

WIRE - spark plug (No. 1 cyl.) (26-1/2" lg.)

1шт.

38

A26800

CABLE

WIRE - spark plug (No. 2 cyl.) (21-1/2" lg.)

1шт.

39

A20144

ELECTRICAL WIRE

WIRE - spark plug (No. 4 and 5 cyl.) (11" lg.)

2шт.

40

A20143

ELECTRICAL WIRE

WIRE - spark plug (No. 3 and 6 cyl.) (15" lg.)

2шт.

41

A20905

SPARK PLUG

ASSY (18 mm), Includes: Ref. 42

6шт.

42

G46839

GASKET

- spark plug

1шт.

43

A29338

COVER

NIPPLE - distributor, hi-tension wires

7шт.

44

A23258

RING - tie, hi-tension wire (3/4 x 1-9/64 x 3/16")

1шт.

44

A20265

RING - tie, hi-tension wires (7/16 x 15/16 x 1/4")

1шт.

48

A24572

LAMP

HEAD LAMP ASSY (Sealed beam unit), Includes: Ref. 49

2шт.

49

A11276

GASKET

- head lamp

1шт.

50

A11275

RING

- head lamp retaining

2шт.

51

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - ring ( N.C., self-tapping) #6 x 1/2"

6шт.

52

A11764

WIRE - head lamp jumper (16" lg.)

1шт.

53

A33439

WIRE - head lamp ground (12" lg.)

2шт.

54

A11943

WIRE - head lamp to harness (21" lg.)

1шт.

55

A20965

LAMP BASE

TAIL LAMP ASSY (See Figure 71)

1шт.

56

A34046

BRACKET

- tail lamp mtg.

1шт.

57

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

1шт.

58

A24089

WIRE - tail lamp to harness (73' lg.)

1шт.

59

A8170

SOCKET

- auxiliary outlet

1шт.

61

A24088

WIRE - socket to harness (58" lg.)

1шт.

62

A27338

GROMMET

- fender wires

2шт.
