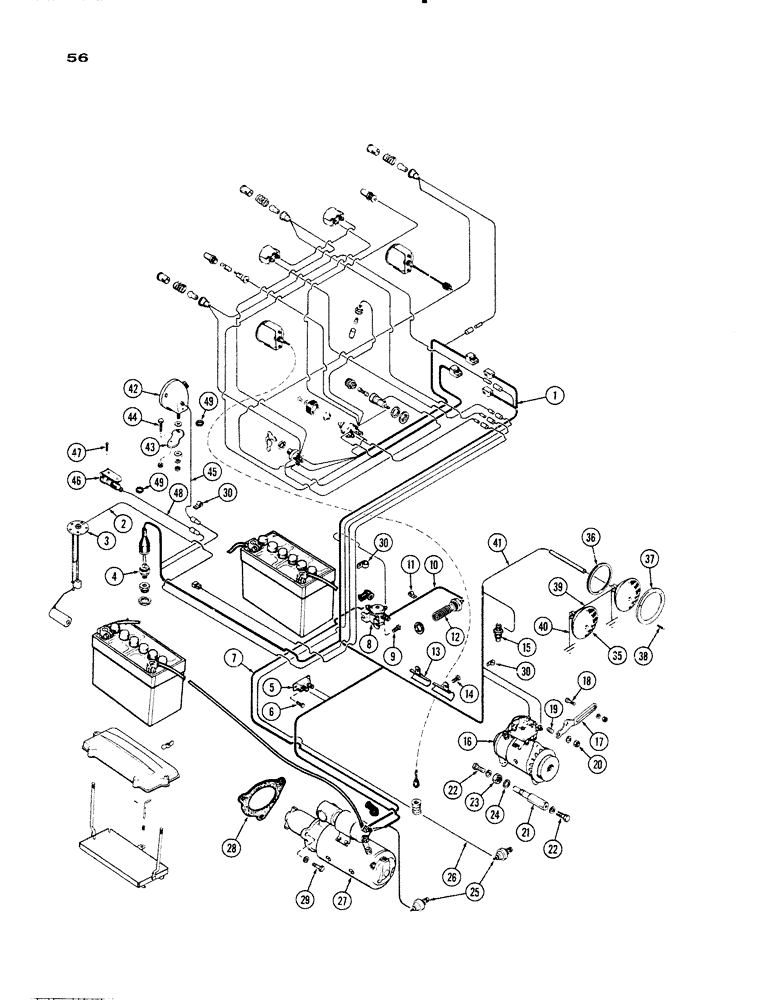

Запчасти Case IH 930-SERIES (056) - ELECTRICAL EQUIPMENT AND WIRES, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A24090

HARNESS

- wire, main, w/plugs

1шт.

2

A24095

WIRE - sending unit

1шт.

3

A24004

SENDER UNIT

UNIT ASSY - fuel sending

1шт.

4

A20990

SWITCH

- safety, neutral start

1шт.

5

A22877

BREAKER,40A

- circuit

1шт.

6

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- breaker (#8 x 1/2" N.C., rd. hd.)

2шт.

7

A24093

CABLE PULLING GRIP

CABLE -, Serial Range: solenoid-solenoid

1шт.

8

A21481

SOLENOID

- heater

1шт.

9

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Solenoid Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

10

A21485

CABLE

- solenoid to heater (23" lg.)

1шт.

11

A20541

CLIP

- cable retaining

1шт.

12

A37775

HEATER

ASSY. - manifold (Replaces A24396)

1шт.

13

A28674

CONDUIT - wire

1шт.

14

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Conduit Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

15

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

16

A33983

GENERATOR

ASSY (See Page 65) (Delco #1109444)

1шт.

17

A21538

STRAP

- generator adjusting

1шт.

18

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - adj. strap (5/16 x 3/4" N.C., sckt. hd.)

1шт.

19

A7391

STUD

- adj. strap (3/8" N.C./N.F. x 1-1/8")

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

1шт.

21

A34887

CARRIER

- generator (tapped for 2" bolt) (1st used eng. ser. no. 2147398)

1шт.

21

A22685

X

CARRIER - generator (tapped for 1" bolt) to eng., Serial Range: -2147398

1шт.

22

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- (3/8 x 2" N.C. hex.) (used w/A34887)

2шт.

22

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- (3/8 x 1" N.C. hex.) (used w/A22685 carrier)

2шт.

23

25-1112

NUT,3/4"-16, G5

(3/4" N.F. hex.)

1шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25

A13794

TRANSMITTER

SWITCH - oil fuel and engine

2шт.

26

A24094

WIRE - fuel switch

1шт.

27

A23688

STARTER ASSM (See Figure 67) (Delco #1113646)

1шт.

28

A27933

GASKET

- starter

1шт.

29

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

29

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Starter

1шт.

30

A22880

CLIP

- wires

1шт.

35

A24572

LAMP

HEAD LAMP ASSY (Sealed beam unit), Includes: Ref. 36

2шт.

36

A11276

GASKET

- head lamp

1шт.

37

A11275

RING

- head lamp retaining

2шт.

38

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - ring ( N.C., self-tapping) #6 x 1/2"

6шт.

39

A11764

WIRE - head lamp jumper (16" lg.)

1шт.

40

A33439

WIRE - head lamp ground (21" lg.)

2шт.

41

A11943

WIRE - head lamp to harness (19" lg.)

1шт.

42

A20965

LAMP BASE

TAIL LAMP ASSY (See Figure 71)

1шт.

43

A34046

BRACKET

1шт.

44

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

1шт.

45

A24089

WIRE - tail lamp to harness (73" lg.)

1шт.

46

A8170

SOCKET

- auxiliary outlet

1шт.

47

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Socket Hex, 5/16"-18 x 1 1/2", G5

2шт.

48

A24088

WIRE - socket to harness (58" long)

1шт.

49

A27338

GROMMET

- fender wires

2шт.
