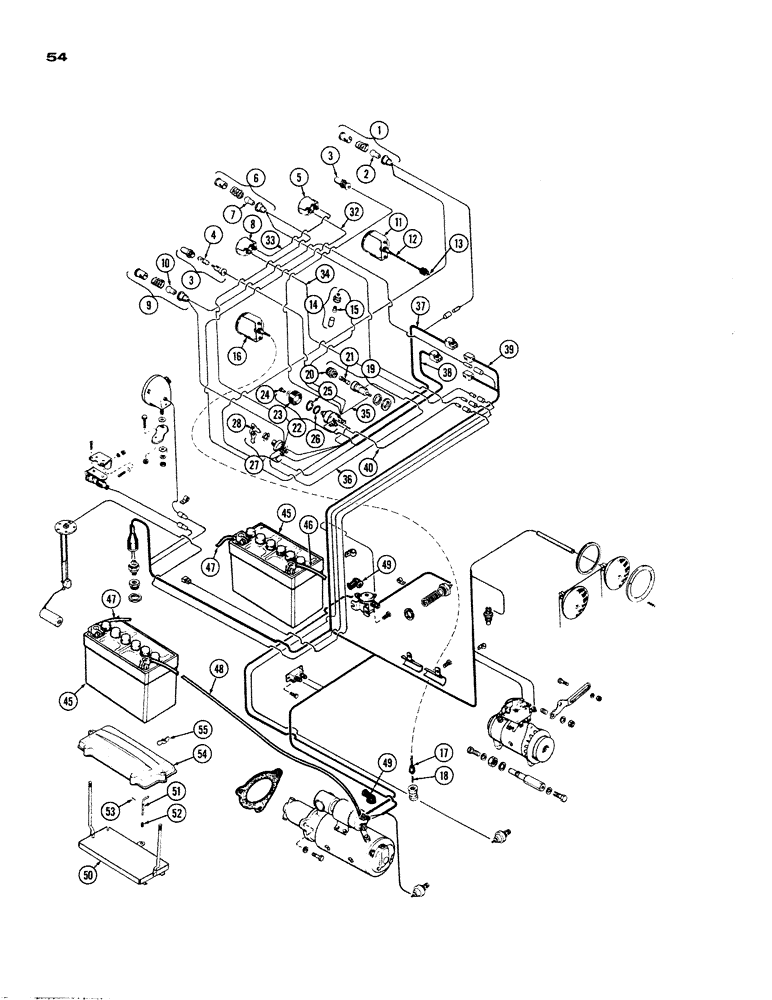

Запчасти Case IH 930-SERIES (054) - INSTRUMENTS AND WIRES, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A24085

LAMP

ASSY - generator warning, Includes: Ref. 2

1шт.

2

A24354

BULB

- warning lamp

1шт.

3

A24087

LAMP BASE

LAMP ASSY - instrument panel, Includes: Ref. 4

1шт.

4

A22349

BULB

- panel lamp

1шт.

5

A24080

GAUGE

- engine temperature

1шт.

6

A24083

LAMP

ASSY - fuel pressure warning, Includes: Ref. 7

1шт.

7

A24354

BULB

- warning lamp

1шт.

8

A24079

GAUGE ASSY.

GAUGE - fuel

1шт.

9

A24084

LAMP

ASSY - oil pressure warning, Includes; Ref. 10

1шт.

10

A24354

BULB

- warning lamp

1шт.

11

A32146

TACHOMETER

SPEEDOMETER

1шт.

12

A24100

CABLE

ASSY - speedometer shaft sheathing, Includes: Ref. 13

1шт.

13

A24523

KIT

SHAFT - flexible, speedometer drive

1шт.

14

A24086

LAMP

ASSY - gear shift indicator, Includes: Ref. 15

1шт.

15

A22349

BULB

- indicator lamp

1шт.

16

A33483

TACHOMETER

ASSY. (Std. Equip.)

1шт.

16

A57180

X

TACHOMETER ASSY. (Heavy Duty)

1шт.

17

A24101

CABLE

ASSY - tachometer shaft sheathing, Includes: Ref. 18

1шт.

18

A24523

KIT

SHAFT - flexible, tachometer drive

1шт.

19

A22874

HOLDER

ASSY - fuse, Includes: Ref. 20

1шт.

20

A10958

CAP

- fuse holder

1шт.

21

223-20

FUSE,20 Amp, Type SFE

(20 amp)

1шт.

22

A20620

SWITCH

ASSY - lights, Includes: Ref. 23 - 26

1шт.

23

A20465

KNOB

- light switch

1шт.

24

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

25

A20467

NUT

- switch retaining

1шт.

26

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER (5/8" int. skpf.)

1шт.

27

A24510

SWITCH

ASSY - ignition, w/keys, (Diesel) Includes: Ref. 28

1шт.

28

A24509

KEY

- switch (Set of 2)

1шт.

32

A24078

ELECTRICAL WIRE

WIRE - temp., gauge to ignition switch

1шт.

33

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to temp. gauge

1шт.

34

A24077

WIRE - fuel gauge

1шт.

35

A22875

ELECTRICAL WIRE

WIRE - fuse holder to light switch (4" lg.)

1шт.

36

A22876

ELECTRICAL WIRE

WIRE - fuse holder to ignition switch (8-1/2" lg.)

1шт.

37

A24076

PLUG

HARNESS - wire, w/red. plug

1шт.

38

A21613

HARNESS

- wire, w/black plug

1шт.

39

A24090

HARNESS

- wire, main, w/plugs

1шт.

40

A32152

WIRE - light switch

1шт.

45

A22817

BATTERY (6 volt), and cables

2шт.

46

A24017

CABLE

ASSY - battery ground (21" lg.), and

1шт.

47

A24019

CABLE

ASSY - battery to battery (58" lg.), and

1шт.

48

A24018

CABLE

ASSY - battery to solenoid (95" lg.), and

1шт.

49

A21753

CAP

COVER - solenoid cable terminal, and battery

2шт.

50

A24418

TRAY - battery, and cable

2шт.

51

A23740

STOP - battery tray, and cable

2шт.

52

A22712

SPRING

- tray stop, battery and cable

2шт.

53

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, , spring retaining, battery and cable 3/32" x 3/4", Slotted

4шт.

54

A23104

COVER - battery, and cable

2шт.

55

129-410

WING NUT,3/8"-16

NUT - cover retaining (3/8" N.C. wing), battery and cable

4шт.
