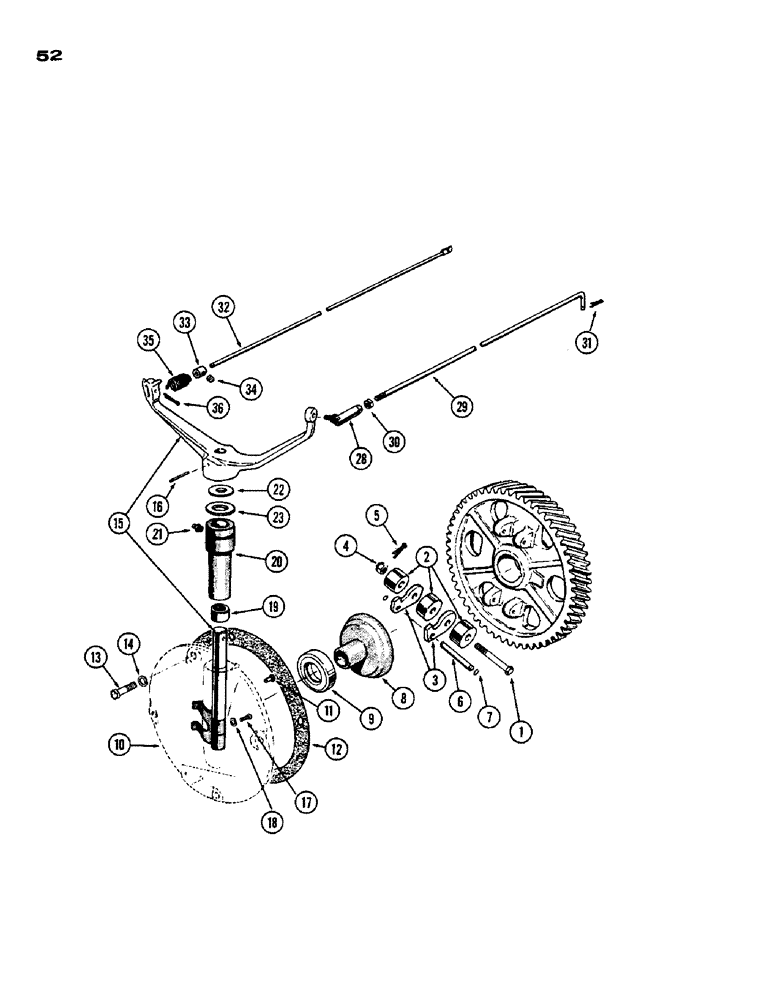

Запчасти Case IH 930-SERIES (052) - GOVERNOR AND LINKAGE, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A11693

BOLT - finger and weight pivot (5/16 x 2-1/4" N.F. hex., spec.)

1шт.

2

A7277

WEIGHT

- governor

6шт.

3

A33471

KIT

FINGER KIT - governor (Set of 4)

1шт.

4

25-235

SLOTTED NUT

NUT (5/16" N.F. sltd.)

1шт.

5

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

6

A7282

PIN,6.31mm OD x 47.63mm L

- bell, Serial Range: sleeve-fingers

2шт.

7

A7111

SNAP RING,#25, Ext

Ring, Snap, , bell sleeve pins #25, Ext

4шт.

8

A7284

SLEEVE - governor bell

1шт.

9

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, bell

1шт.

10

A20833

CAP ASSY - governor, Includes: Ref. 11

1шт.

11

A27869

BUTTON - thrust

1шт.

12

A27867

GASKET

- cap

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

A20838

SHAFT

LEVER ASSY - governor, Includes: Ref. 16 - 18

1шт.

16

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, , Shaft retaining 3/16" x 1 5/8", Slotted

1шт.

17

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- finger retaining (#10-32 x 5/8" rd.hd.)

2шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

19

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle

1шт.

20

A20835

SLEEVE - bearings

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

22

A7292

SEAL

- oil (29/32 x 1-23/64 x 1/16" rubber)

1шт.

23

A7293

WASHER

- thrust (37/64 x 1-1/8 x 1/16" cpr.)

1шт.

28

A10326

BALL JOINT

JOINT - ball, Serial Range: rod-lever

1шт.

29

A21306

ROD -, Serial Range: governor-carburetor

1шт.

30

129-127

NUT,5/8"-18, G5

Ball joint stop (#10-32 hex.) 5/8"-18, G5

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

A23850

ROD - throttle control, front

1шт.

33

A20846

COLLAR

- stop, throttle rod

1шт.

34

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar (1/4 x 1/4" N.C., sckt. hd.)

1шт.

35

A20868

SPRING

- governor

1шт.

36

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
