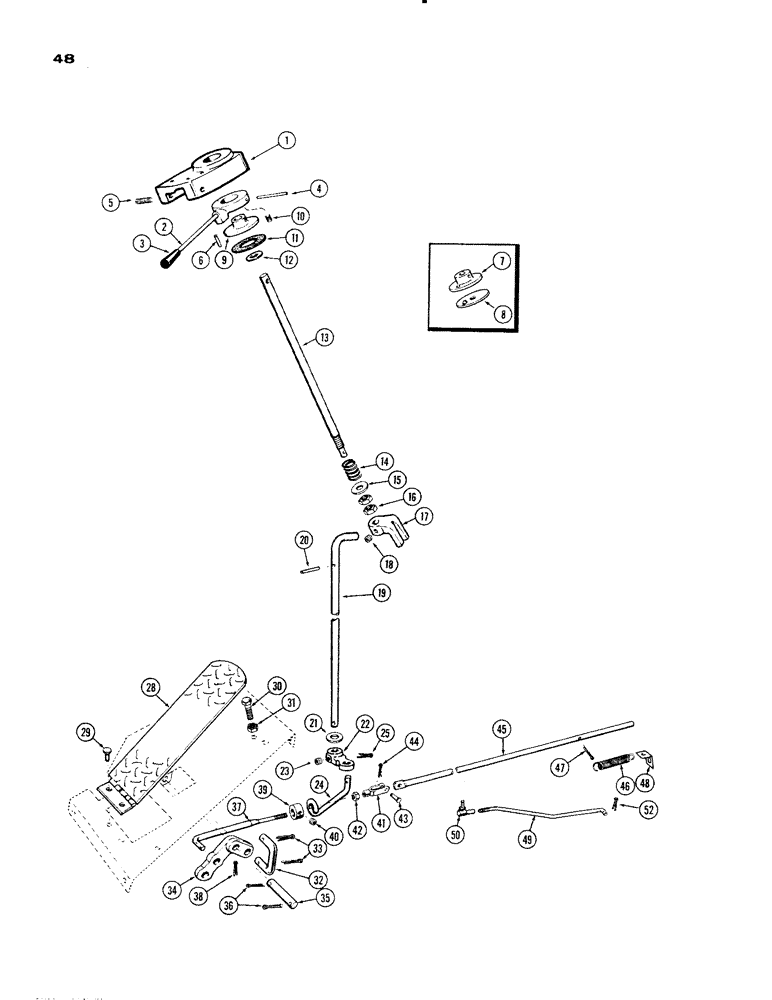

Запчасти Case IH 930-SERIES (048) - THROTTLE AND CONTROLS, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A33147

CAP - steering column

1шт.

2

A34045

LEVER

ASSY - hand throttle, Includes: Ref. 3

1шт.

3

NLS

NO LONGER SERVICED

- throttle lever (adhesive bond)

1шт.

4

138-2021

PIN,3/16" x 2 1/2", Coiled

lever 3/16" x 2 1/2", Coiled

1шт.

5

176-394

SCREW,Sl Hdls, 1/4" - 20 x 3/4", Oval Pt

- throttle stop (1/4 x 3/4" sltd. hd., oval pt.)

2шт.

6

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

7

A50728

PLATE - friction disc (used w/A57029 disc) (1st used trac. ser. no. 8308968)

1шт.

8

A57029

DISC

- throttle plate (used w/A57028 plate) (1st used trac. ser. no. 8308968)

1шт.

9

A32893

X

PLATE - friction disc (Order 1-A57028 and 1-A57029) to trac., Serial Range: -8308968

1шт.

10

A8012

SPRING

- tension, hand lever

1шт.

11

A11969

GASKET

DISC - friction (1-9/32 x 2-1/2 x 1/8" cork)

1шт.

12

A32838

WASHER

- friction disc (17/32 x 1-1/4 x 14 ga.)

1шт.

13

A33149

SHAFT - throttle, upper

1шт.

14

A34113

SPRING

- tension, upper shaft

1шт.

15

195-33

WASHER,1/2"

- spring seat (17/32 x 1-1/6 x 13 ga.)

1шт.

16

25-158

JAM NUT,Jam, 1/2"-20, G5

- spring ret. (1/2" N.F. half hex.)

1шт.

17

A23917

FORK

- hand lever

1шт.

18

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

SCREW - fork ret. (1/4 x 7/16" N.C. sckt. hd. cup pt.)

1шт.

19

A23919

SHAFT - throttle, lower

1шт.

20

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Shaft 3/16" x 1 1/4", Slotted

1шт.

21

195-33

WASHER,1/2"

- lower shaft (17/32 x 1-1/16 x 13 ga.)

1шт.

22

A23922

LEVER

- lower shaft

1шт.

23

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - lever ret. (1/4 x 1/4" N.C. sckt. hd. cup pt.)

1шт.

24

A23930

ROD - lower hand throttle linkage

1шт.

25

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

28

A20544

PEDAL - foot throttle control

1шт.

29

48-410

RIVET - pedal (1/4 x 5/8" oval hd.)

2шт.

30

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5, Pedal stop

1шт.

31

25-104

NUT,1/4"-20, G5

- lock, stop bolt (1/4" N.C. hex.)

1шт.

32

A23925

LINK - foot pedal

1шт.

33

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

34

A23926

LEVER - foot throttle

1шт.

35

A23927

PIN - foot lever pivot

1шт.

36

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

37

A23928

ROD - foot throttle linkage

1шт.

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

39

A23929

COLLAR

- yoke retaining

1шт.

40

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW - collar ret. (1/4 x 5/16" N.F. sckt. hd. cup pt.)

1шт.

41

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - throttle rod

1шт.

42

25-144

JAM NUT,Jam, 1/4"-20, G5

- yoke (1/4" N.C. half hex.)

1шт.

43

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis

1шт.

44

136-105

PIN - cotter (5/32 x 1")

1шт.

45

A23936

ROD - throttle, front

1шт.

46

A22619

SPRING

- rod return

1шт.

47

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

48

A22620

CLIP

- return spring

1шт.

49

A22245

ROD

LINK - injection pump

1шт.

50

A10326

BALL JOINT

JOINT - ball, inj. pump link

1шт.

51

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
