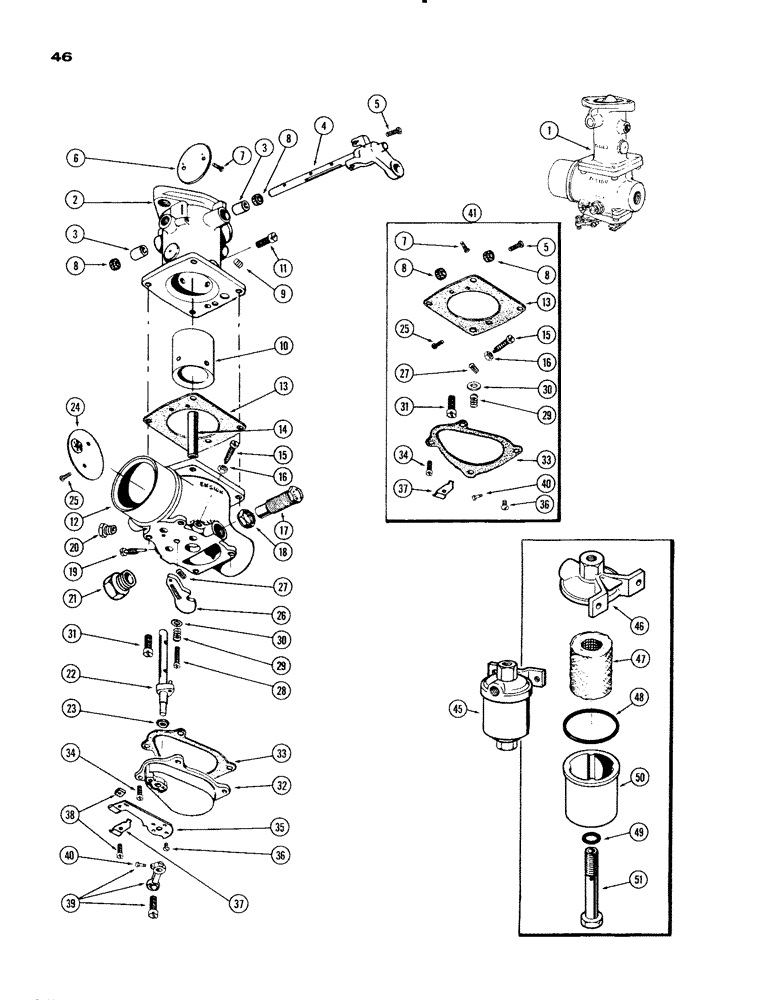

Запчасти Case IH 930-SERIES (046) - A23851 CARBURETOR, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A23851

X

CARBURETOR ASSY, Includes: Ref. 2 - 40

1шт.

2

A40733

TUBE ASSY. - throttle body, Includes: Ref. 3

1шт.

3

B50202

BUSHING - throttle shaft

2шт.

4

A40558

SHAFT ASSY. - throttle, Includes: Ref. 5

1шт.

5

B50014

SCREW - throttle stop

1шт.

Part of repair kit P/N A40031

1шт.

6

B50080

DISC - throttle

1шт.

7

B50143

SCREW - throttle disc

2шт.

Part of repair kit P/N A40031

1шт.

8

B50145

SEAL - dust, throttle shaft

2шт.

Part of repair kit P/N A40031

1шт.

9

B50058

PLUG - body

1шт.

10

B50093

VENTURI

1шт.

11

B50040

SCREW - venturi retaining

1шт.

12

A40530

HORN - air inlet

1шт.

13

B50019

GASKET

- air horn

1шт.

Part of repair kit P/N A40031

1шт.

14

B50095

NOZZLE - main

1шт.

A40531

VALVE ASSY. - starting adjusting, Includes: Ref. 15 and 16

1шт.

Part of repair kit P/N A40031

1шт.

15

B50101

VALVE - staring adjusting screw

1шт.

16

B50102

NUT - lock, starting valve

1шт.

B50118

PIPE

SCREW ASSY. - fuel adjusting, Includes: Ref. 17 and 18

1шт.

17

B50015

SCREW - fuel adjusting

1шт.

18

B50090

NUT - lock, fuel adj. screw

1шт.

19

B50140

NEEDLE - starting valve

1шт.

20

B50164

SCREW - bleed

1шт.

21

B50141

MANIFOLD

PLUG - air horn

1шт.

22

B50128

SHAFT ASSY. - choke

1шт.

23

B50098

SEAL - dust, choke shaft

1шт.

24

B50078

DISC - choke

1шт.

25

B50142

SCREW - choke disc

2шт.

Part of repair kit P/N A40031

1шт.

26

B50115

LEVER - valve

1шт.

27

B50105

SPRING - latching lever

1шт.

Part of repair kit P/N A40031

1шт.

28

B50154

PIVOT - valve lever

1шт.

29

B50021

SPRING - pressure valve lever

1шт.

Part of repair kit P/N A40031

1шт.

30

B50097

WASHER - spring seat

1шт.

Part of repair kit P/N A40031

1шт.

31

B50041

SCREW

- air horn

4шт.

Part of repair kit P/N A40031

1шт.

32

B50016

COVER - air horn

1шт.

33

B50017

GASKET - cover plate

1шт.

Part of repair kit P/N A40031

1шт.

34

B50034

SCREW - cover plate

4шт.

35

B50139

SUPPORT - choke cable

1шт.

36

A40342

PROTECTOR

SCREW - choke support

2шт.

Part of repair kit P/N A40031

1шт.

37

B50204

CLAMP - choke cable

1шт.

Part of repair kit P/N A40031

1шт.

38

B50119

SCREW ASSY. - clamp

1шт.

39

B50151

LEVER ASSY. - choke, Includes: Ref. 40

1шт.

40

B50014

SCREW ASSY. - choke lever

1шт.

Part of repair kit P/N A40031

1шт.

41

A40031

REPAIR KIT - Includes: Ref. 5, 7, 8, 13, 14, 25, 27, 29, 30, 31, 33, 36, 37 and 40

1шт.

45

A24535

FILTER

ASSY, Includes: Ref. 46 - 49

1шт.

46

A24536

COVER - filter, A24535

1шт.

47

A24616

KIT

ELEMENT ASSY, A24535 filter, Includes: Ref. 49

1шт.

48

A24539

GASKET

- cover, A24535 filter

1шт.

49

A24538

GASKET

- bolt, A24535 filter

1шт.

50

A24537

HOUSING - filter body, A24535

1шт.

51

A24541

BOLT - body to cover, A24535 filter

1шт.
