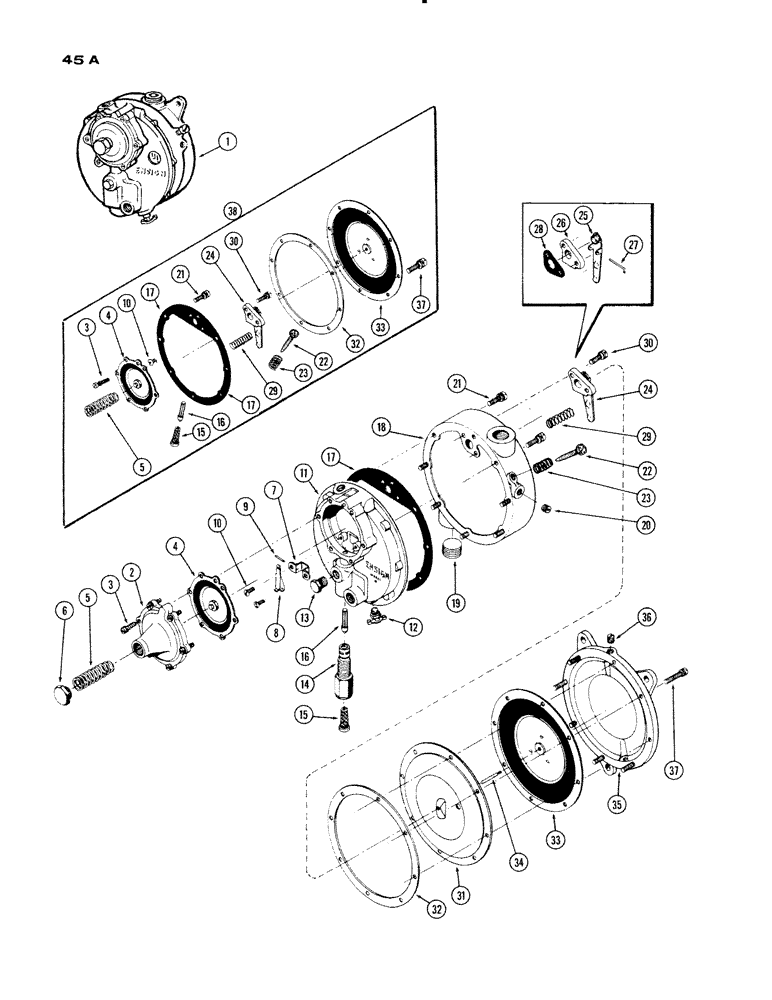

Запчасти Case IH 930-SERIES (045A) - A28535 REGULATOR, (377) SPARK IGNITION ENGINE, USED PRIOR TO SERIAL NUMBER 2138813 (03) - FUEL SYSTEM

1

A28535

REGULATOR ASSY, Includes: Ref. 2 - 37

1шт.

2

B50110

COVER - hi-pressure valve

1шт.

3

B50035

SCREW - cover retaining

6шт.

Part of repair kit P/N B50057

1шт.

4

B50108

DIAPHRAGM - hi-pressure valve

1шт.

Part of repair kit P/N B50057

1шт.

5

B50111

SPRING - diaphragm pressure

1шт.

Part of repair kit P/N B50057

1шт.

6

B50112

CAP - pressure spring ret.

1шт.

7

B50100

SUPPORT - hi-pressure valve

1шт.

8

B50103

LEVER - hi-pressure valve

1шт.

9

B50104

PIN - lever pivot

1шт.

10

B50031

SCREW - support

2шт.

Part of repair kit P/N B50057

1шт.

11

B50099

BODY - vaporizer

1шт.

12

217-102

PLUG, DRAIN

COCK - drain, vaporizer body

1шт.

13

B50113

PLUG - body

1шт.

14

B50167

BODY ASSY. - inlet valve, Includes: Ref. 15

1шт.

15

B50168

SCREEN - fuel inlet

1шт.

Part of repair kit P/N B50057

1шт.

16

B50152

VALVE - needle, fuel inlet

1шт.

Part of repair kit P/N B50057

1шт.

17

B50124

GASKET - vaporizer body

1шт.

Part of repair kit P/N B50057

1шт.

18

B50117

BODY - lo-pressure fuel regulator

1шт.

19

221-845

PLUG,Hex Soc, 3/4"-14

- body (3/4" P.T., ctsk. hd.)

1шт.

20

B50012

SCREW - bleed

1шт.

21

B50035

SCREW - lo-pressure body

7шт.

Part of repair kit P/N B50057

1шт.

22

B50024

VALVE - idle adjusting screw

1шт.

Part of repair kit P/N B50057

1шт.

23

B50022

SPRING - idle adj. valve

1шт.

Part of repair kit P/N B50057

1шт.

24

B50197

VALVE ASSM - lo-pressure, Includes: Ref. 25 - 28

1шт.

Part of repair kit P/N B50057

1шт.

25

B50196

LEVER - lo-pressure valve

1шт.

26

B50125

SEAT - lo-pressure valve

1шт.

27

B50159

PIN - lever pivot

1шт.

28

B50126

GASKET - lo-pressure valve

1шт.

29

B50121

SPRING - lo-pressure valve

1шт.

Part of repair kit P/N B50057

1шт.

30

B50037

SCREW - lo-pressure seat

2шт.

Part of repair kit P/N B50057

1шт.

31

B50190

PARTITION - plate

1шт.

32

B50114

GASKET - partition plate

1шт.

Part of repair kit P/N B50057

1шт.

33

B50199

DIAPHRAGM ASSY. - lo-pressure, Includes: Ref. 34

1шт.

Part of repair kit P/N B50057

1шт.

34

B50189

PIN - push diaphragm

1шт.

35

B50123

PLATE - back, regulator support

1шт.

36

B50088

PLUG - plate (1/8" P.T., sltd. hd.)

1шт.

37

B50036

SCREW - back plate

8шт.

Part of repair kit P/N B50057

1шт.

38

B50057

REPAIR KIT Includes: Ref. 3, 4, 5, 10, 15, 16, 17 21 - 24, 29, 30, 32, 33 and 37

1шт.
