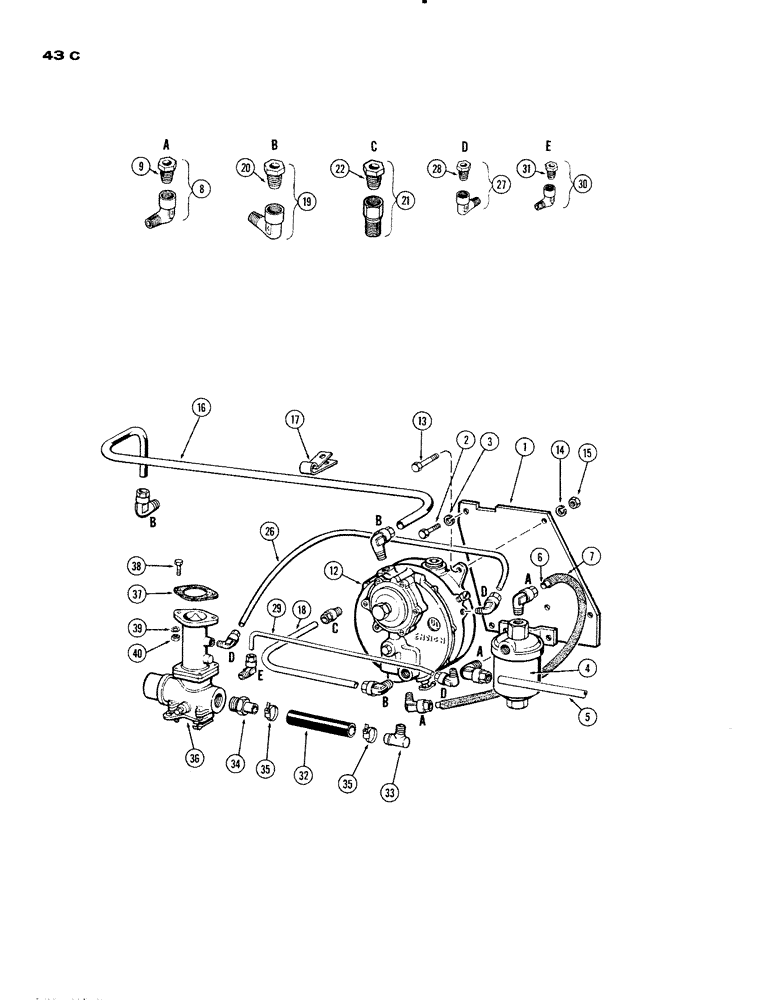

Запчасти Case IH 930-SERIES (043C) - L.P. FUEL LINES, (377) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2138813 (03) - FUEL SYSTEM

1

A23853

PLATE - regulator and filter mounting

1шт.

2

14-518

BOLT - plate (5/16 x 1-1/8" N.F. hex.) Hex, 5/16"-24 x 1 1/8", G5, Full Thd

5шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

A24535

FILTER

ASSY. - (See Figure 47)

1шт.

5

A24049

TUBE - tee to filter inlet

1шт.

6

A23858

TUBE -, Serial Range: filter-regulator

1шт.

7

A29940

LOOM - filter liquid tube (21-1/2" lg.)

1шт.

8

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY - filter and regulator (Ref. A) (), Includes: Ref. 9

3шт.

90

1шт.

9

222-504

TUBE NUT,9/16"-20

NUT - elbow (For 3/8" dia. tube)

1шт.

12

A28535

REGULATOR ASSY. (See Figure 45B)

1шт.

13

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

- regulator (3/8 x 2-1/4" N.C. hex.)

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

16

A23857

TUBE - regulator to water pump

1шт.

17

A26696

NO LONGER SERVICED

CLIP - water tube (w/13/32" bolt hole)

1шт.

18

A23856

TUBE -, Serial Range: block-regulator

1шт.

19

222-442

ELBOW ASSY. - (Ref. B) (), Includes: Ref. 20 90º x 3/8" NPT x 11/16"-16

3шт.

90

1шт.

20

222-506

TUBE NUT,11/16"-16

NUT (For 1/2" dia. tube)

1шт.

21

222-412

CONNECTOR ASSY (Ref. C), Includes: Ref. 22

1шт.

22

222-506

TUBE NUT,11/16"-16

NUT (For 1/2" dia. tube)

1шт.

26

A23855

TUBE - idle

1шт.

27

222-432

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

ASSY. - idle tube (Ref. D) (), Includes: Ref. 28

2шт.

90

1шт.

28

222-502

TUBE NUT,7/16"-24

NUT (For 1/4" dia. tube)

1шт.

29

A23854

TUBE - balance

1шт.

30

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - balance line (Ref. E) (), Includes: Ref. 31

2шт.

90

1шт.

31

222-503

TUBE NUT,1/2"-20

NUT (For 5/16" dia. tube)

1шт.

32

A23852

HOSE - vapor (3/4" I.D. x 6")

1шт.

33

A27487

ELBOW - vapor hose

1шт.

34

A11791

NIPPLE - vapor hose

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - vapor hose (1-3/16" to 1-3/4")

2шт.

36

A23851

X

CARBURETOR ASSY. (See Figure 47)

1шт.

37

A27776

GASKET

- carburetor

1шт.

38

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- carburetor (3/8 x 1-1/2" N.F. hex.)

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.
