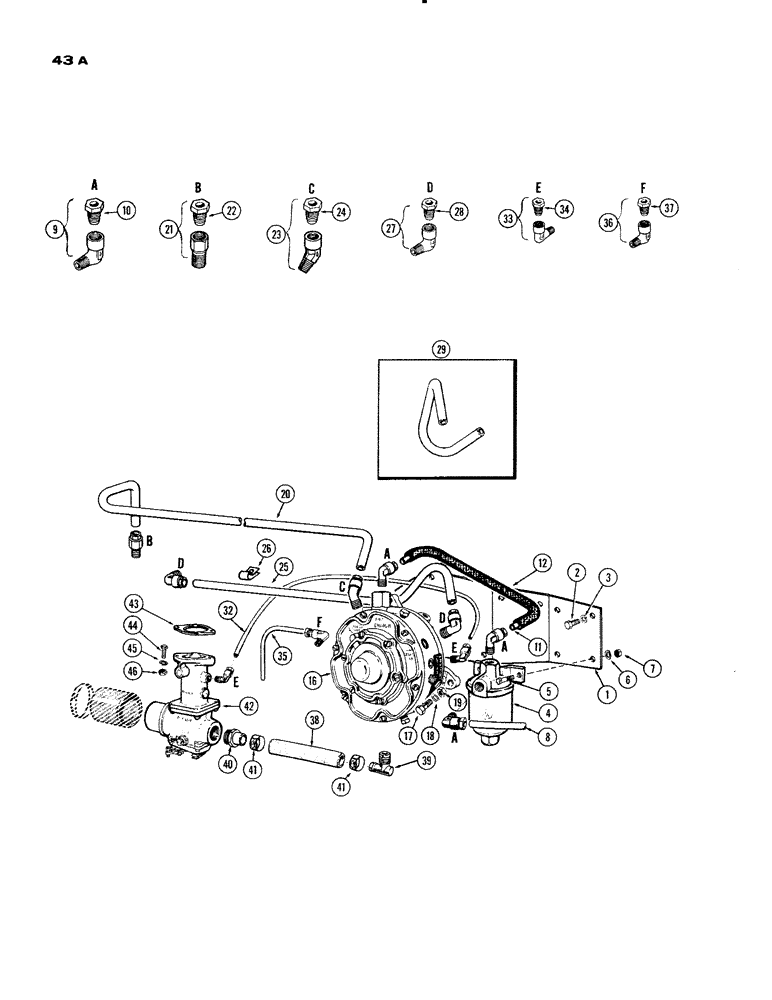

Запчасти Case IH 930-SERIES (043A) - L.P. FUEL LINES, (377) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NUMBER 2138813 (03) - FUEL SYSTEM

1

A32618

PLATE - filter and regulator mtg.

1шт.

2

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Plate Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

A24535

FILTER

ASSY. - fuel (See Figure 47)

1шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

8

A33188

TUBE - fuel, Serial Range: tank-filter

1шт.

9

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - filter tubes (Ref.A) (), Includes: Ref. 10

3шт.

90

1шт.

10

222-504

TUBE NUT,9/16"-20

NUT - (for 3/8" O.D. tube)

1шт.

11

A33214

TUBE -, Serial Range: filter-regulator

1шт.

12

A27237

LOOM

- filter tube (10" long)

1шт.

16

A32619

REGULATOR ASSY. (See Figure 45)

1шт.

17

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- regulator (5/16 x 1-1/2" N.C. hex.)

3шт.

18

92-5

LOCK WASHER,5/16"

3шт.

19

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

3шт.

20

A33216

TUBE - water, Serial Range: pump-regulator

1шт.

21

221-412

ELBOW,90 Degree, 1/4"-27, NPT

CONNECTOR ASSY. (At water pump) (Ref. B), Includes: Ref. 22

1шт.

22

222-506

TUBE NUT,11/16"-16

NUT - (for 1/2" O.D. tube)

1шт.

23

222-470

ELBOW ASSY. (At Reg.) (Ref. C) (), Includes: Ref. 24 45º x 3/8" NPT x 11/16"-16

1шт.

45

1шт.

24

222-506

TUBE NUT,11/16"-16

NUT (For 1/2" O.D. tube)

1шт.

25

A33215

TUBE - regulator to front hole in block (See Ref. 29 for tube used w/block heater)

1шт.

26

A22696

CLIP - water tube

1шт.

27

222-442

ELBOW ASSY (Ref. D) (), Includes: Ref. 28 90º x 3/8" NPT x 11/16"-16

2шт.

90

1шт.

28

222-506

TUBE NUT,11/16"-16

NUT (For 1/2" O.D. tube)

1шт.

29

A57387

TUBE - regulator to rear hole in block (This tube req. when block heater is used)

1шт.

32

A33217

TUBE - idle

1шт.

33

222-432

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

ASSY. - idle tube (Ref. E) (), Includes: Ref. 34

2шт.

90

1шт.

34

222-502

TUBE NUT,7/16"-24

NUT - (For 1/4" O.D. tube)

1шт.

35

A33218

TUBE - balance

1шт.

36

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - balance tube (Ref. F) (), Includes: Ref. 37

1шт.

90

1шт.

37

222-503

TUBE NUT,1/2"-20

NUT - (For 5/16" O.D. tube)

1шт.

38

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Vapor 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

39

A9155

90 ELBOW

- vapor hose (at regulator)

1шт.

40

A11791

CONNECTOR - vapor hose (at carburetor)

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

42

A23851

X

CARBURETOR ASSY. (See Figure 47)

1шт.

43

A27776

GASKET

- carburetor

1шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- carburetor (3/8 x 1-1/2" N.C. hex.)

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.
