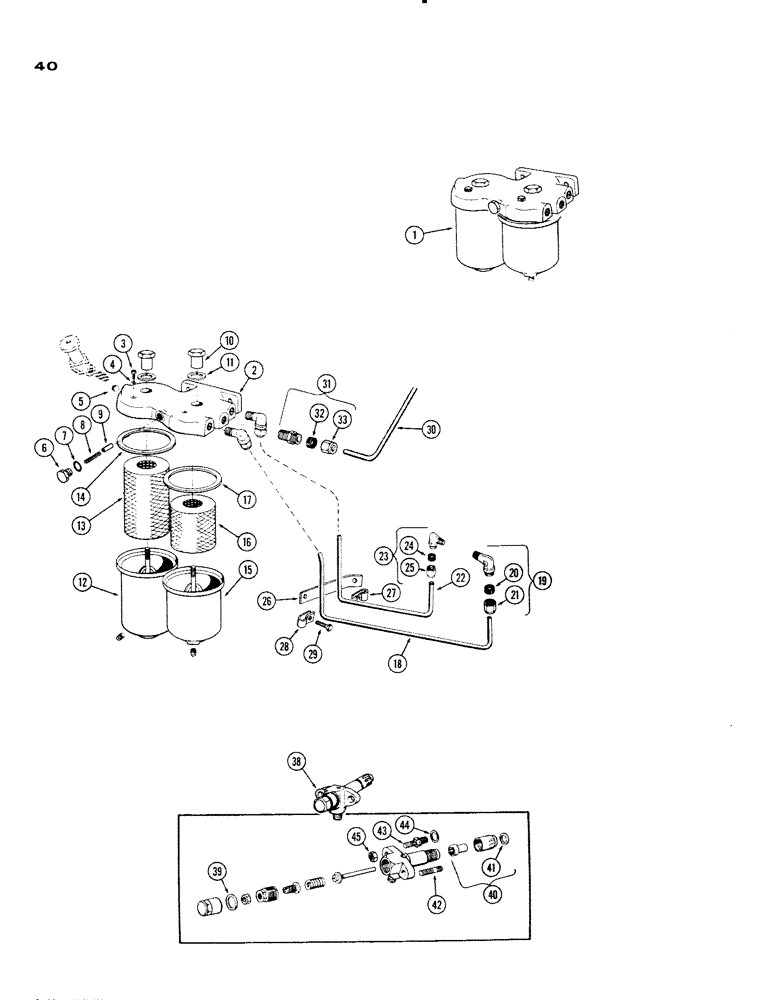

Запчасти Case IH 930-SERIES (040) - A40435 PRIMARY FILTER AND LINES, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A40435

FILTER

ASSY - primary (1st and 2nd stage), Includes: Ref. 2 - 17

1шт.

2

A24915

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- head (1/8" P.T., ctsk. sckt. hd.)

1шт.

6

A24916

PLUG

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug (1/2 x 11/16 x 3/32")

1шт.

8

A24918

SPRING

- relief valve

1шт.

9

A24917

PLUNGER

- relief valve

1шт.

10

A21131

NUT

- body retaining

2шт.

11

A28055

GASKET

- nut

2шт.

12

A21129

BODY

- filter, 1st stage

1шт.

13

A21141

FILTER, ELEMENT

ELEMENT ASSY - 1st stage filter (4-13/16" lg.), Includes: Ref. 14

1шт.

14

A28056

GASKET

-, Serial Range: body-head

1шт.

15

A21132

BODY

- filter, 2nd stage

1шт.

16

A7627

FILTER, ELEMENT

ELEMENT ASSY - 2nd stage filter (3-7/8" lg.), Includes: Ref. 17

1шт.

17

A28056

GASKET

-, Serial Range: body-head

1шт.

18

A20693

TUBE

-, Serial Range: filter-pump

1шт.

19

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY - fuel line, Includes: Ref. 20 and 21

2шт.

20

222-104

SLEEVE,3/8" Tube

(For 3/8" dia. tube)

1шт.

21

222-114

NUT,5/8"-24

NUT (For 3/8" dia. tube)

1шт.

22

A20531

TUBE

-, Serial Range: pump-filter

1шт.

23

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - fuel line, Includes: Ref. 24 - 25

2шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT (For 5/16" dia. tube)

1шт.

26

A20537

BRACKET - tube clips

1шт.

27

A27814

X

CLIP - tube ret. (For A20531 tube)

1шт.

28

A20688

CLIP

- tube ret. (For A20693 tube)

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clip & brkt Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

30

A22184

TUBE

- primary to secondary filter

1шт.

31

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY - fuel line, Includes: Ref. 32 and 33

1шт.

32

222-103

SLEEVE,5/16" Tube

1шт.

33

222-113

TUBE NUT,9/16"-24

NUT (For /16" dia. tube)

1шт.

38

A8013

NOZZLE INJECTION

INJECTOR ASSM - fuel, nozzles, Includes: Ref. 39 - 41

6шт.

39

A31062

GASKET

- injector cap, nozzles

1шт.

40

A31159

NOZZLE INJECTION

NOZZLE ASSY. (fuel atomizer), injector, Includes: Ref. 41

1шт.

41

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat, injector

1шт.

42

A27929

STUD

- nozzle holder, injector

6шт.

43

A10678

STUD

- nozzle holder, injector

6шт.

44

A10679

GASKET

- nozzle stud, injector

6шт.

45

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.), injector nozzles

12шт.
