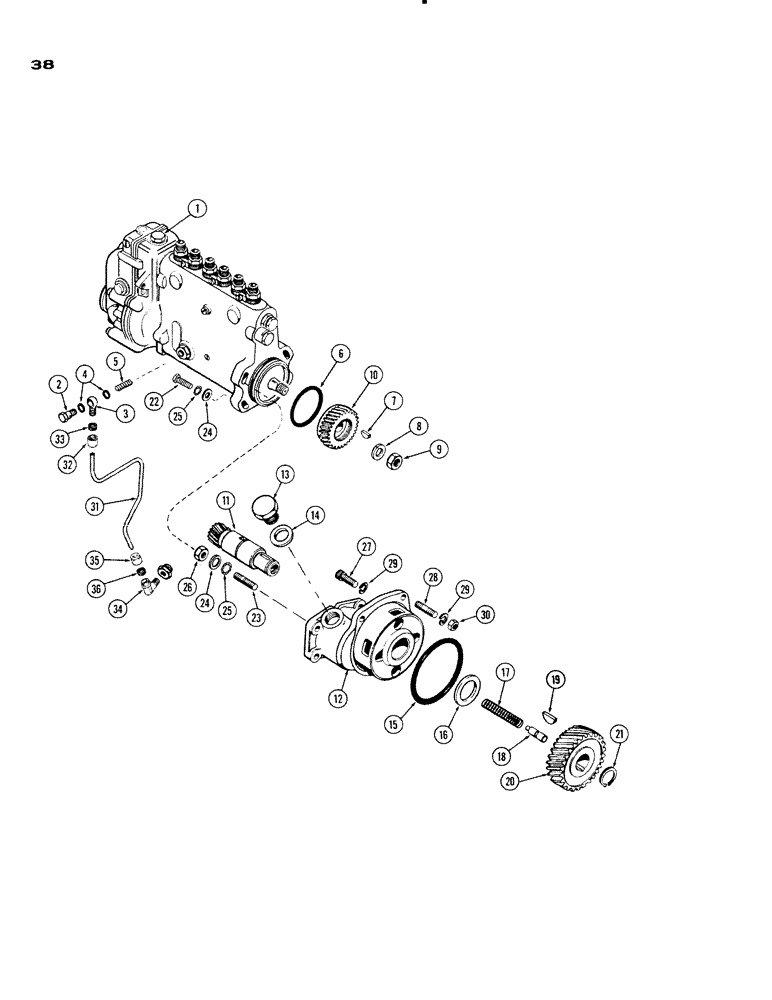

Запчасти Case IH 930-SERIES (038) - A22637 INJECTION PUMP AND DRIVE, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A22637

PUMP ASSY - fuel injection (1600 RPM), Includes: Ref. 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A25191

FITTING

- oil lube line (Banjo Type)

1шт.

4

A22381

WASHER

- banjo fitting

2шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

7

A20933

KEY

- drive gear

1шт.

8

A25188

WASHER

- gear lock

1шт.

9

A25189

NUT - gear retaining

1шт.

10

A21139

GEAR

- injection pump

1шт.

11

A20622

GEAR

PINION - pump gear drive

1шт.

12

A21136

HOUSING - drive pinion

1шт.

13

A21140

PLUG

- timing window

1шт.

14

A27947

X

GASKET - plug

1шт.

15

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - housing

1шт.

16

A27864

WASHER

- thrust, drive gear

1шт.

17

A27853

SPRING

- plunger tension

1шт.

18

A27852

PLUNGER

- pinion thrust

1шт.

19

126-66

WOODRUFF KEY

KEY - drive gear (#141 Woodruff)

1шт.

20

A20899

GEAR WHEEL

GEAR - injection pump drive

1шт.

21

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive gear #98, Ext

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump lower (3/8 x 1-1/2" N.C. hex.)

2шт.

23

A20664

STUD - pump, upper (3/8" N.F. x 1-7/8")

2шт.

24

195-25

WASHER,3/8"

(13/32 x 13/16 x 1/16")

4шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

26

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

2шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - housing (3/8" x 1-1/4" N.C. 12 pt. hd.)

1шт.

28

A26554

STUD - housing (3/8" N.C./N.F. x 1-9/16")

1шт.

29

92-6

LOCK WASHER,3/8"

3шт.

30

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

1шт.

31

A22640

TUBE

- lube oil, Serial Range: pump-block

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" dia. tube)

1шт.

33

222-102

SLEEVE,1/4" Tube

1шт.

34

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSM - lube line to block, Includes: Ref. 35 and 36

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" dia. tube)

1шт.

36

222-102

SLEEVE,1/4" Tube

1шт.
