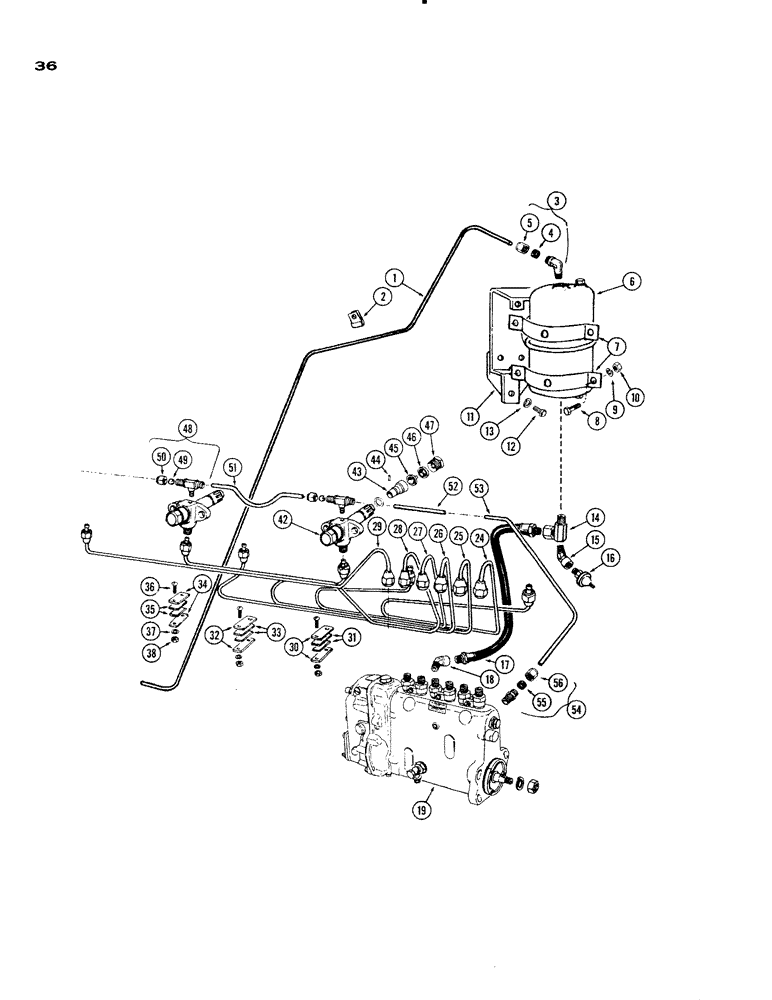

Запчасти Case IH 930-SERIES (036) - FUEL INJECTION SYSTEM, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A22184

TUBE

- primary to secondary filter

1шт.

2

A7922

CLIP

- fuel line

1шт.

3

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY, Includes: Ref. 4 and 5

1шт.

4

222-103

SLEEVE,5/16" Tube

1шт.

5

222-113

TUBE NUT,9/16"-24

NUT (For 5/16" dia. tube)

1шт.

6

A27983

FILTER

- secondary (Final Stage)

1шт.

7

A21144

CLAMP

- secondary filter

2шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

(5/16" N.C. hex.)

4шт.

11

A33617

BRACKET - filter mounting

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

12

175-412

SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- bracket (3/8 x 3/4" N.C. ph. hd.)

1шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

A20539

FITTING

UNION - hose and pressure switch

1шт.

15

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- pressure switch (45 deg. brass)

1шт.

16

A13794

TRANSMITTER

SWITCH - pressure

1шт.

17

A20538

FUEL HOSE,0.38" ID x 8.50"

Secondary filter to injection pump 0.38" ID x 8.50"

1шт.

18

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- hose to inj. pump(45 deg.)

1шт.

19

A22637

PUMP ASSY - injection (See Figure 39)

1шт.

24

A20501

TUBE

- injection, No. 1 cylinder

1шт.

25

A20502

TUBE

- injection, No. 2 cylinder

1шт.

26

A20503

TUBE

- injection, No. 3 cylinder

1шт.

27

A20504

TUBE

- injection, No. 4 cylinder

1шт.

28

A20505

TUBE

- injection, No. 5 cylinder

1шт.

29

A20506

TUBE

- injection, No. 6 cylinder

1шт.

30

A27978

CLAMP

- inj. tubes, frt. (2-5/64" lg.)

2шт.

31

A27980

CUSHION

- front clamps (1/8 x 3/4 x 1-1/4" cork)

1шт.

32

A27977

CLAMP

- inj. tubes, center (1-37/64" lg.)

2шт.

33

A27979

CUSHION

- center (1/8 x 3/4 x 3/4" cork)

2шт.

34

A20508

CLAMP

- inj. tubes, rear (1-21/64" lg.)

2шт.

35

A20509

CUSHION

- rear clamps (1/8 x 3/4 x 1/2" cork)

2шт.

36

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamps (#10-24 x 1" rd. hd.)

6шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

38

129-7

NUT,Hex, #10 - 24

( hex.) #10-24

6шт.

42

A8013

NOZZLE INJECTION

INJECTOR ASSY (See Figure 41)

6шт.

43

A22978

BODY

- powrcel

6шт.

44

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel body locating

6шт.

45

A22975

CAP

- powrcel

6шт.

46

A11812

CLAMP

- powrcel

6шт.

47

A11813

PLUG

SCREW - powrcel clamp

6шт.

48

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY - leak-off tubes junction, Includes: Ref. 49 and 50

6шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" dia. tube)

1шт.

51

A27981

TUBE

- leak-off (No. 1 to No. 2, No. 3 to No. 4 and No. 5 to No. 6 injectors)

3шт.

52

A20162

TUBE

- leak-off (No. 2 to No. 3, and No. 4 to No. 5 injectors)

2шт.

53

A22186

TUBE

- leak-off (No. 1 injector to check valve)

1шт.

54

A28098

VALVE

ASSY - check, leak-off tube, Includes: Ref. 55 and 56

1шт.

55

222-102

SLEEVE,1/4" Tube

1шт.

56

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" dia. tube)

1шт.
