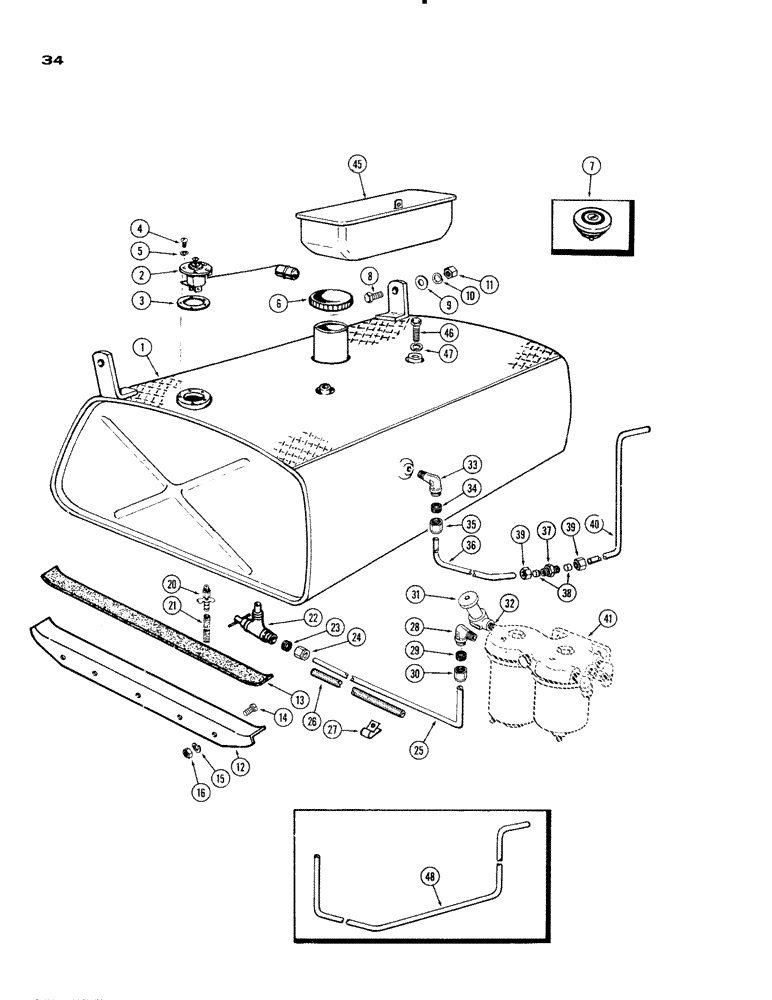

Запчасти Case IH 930-SERIES (034) - FUEL TANK AND LINES, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A33430

TANK ASSY - fuel, Includes: Ref. 2 - 5

1шт.

2

A24004

SENDER UNIT

UNIT - fuel gauge sender

1шт.

3

A11822

GASKET

- sending unit

1шт.

4

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- unit (#10-32 x 7/16" rd. hd.)

5шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

6

A32119

CAP

- fuel tank filler

1шт.

7

A32120

CAP

- fuel tank, w/keys (Opt. equip.) (extra keys to be made locally)

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- fuel tank (5/16 x 1-1/4" N.C. hex.)

2шт.

9

195-520

WASHER,1/4"

(5/16 x 7/8 x 1/16")

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

A34404

SUPPORT

- fuel tank, R.H. side

1шт.

12

A34405

SUPPORT

- fuel tank, L.H. side

1шт.

13

A23991

CUSHION

- fuel tank supports

2шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Support Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Support Hex, 3/8"-16 x 2 1/4", G5

2шт.

15

92-6

LOCK WASHER,3/8"

8шт.

16

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

8шт.

20

217-107

VALVE

- fuel tank drain

1шт.

21

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain valve 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

A27955

VALVE

ASSY. - fuel shut-off, Includes: Ref. 23 and 24

1шт.

23

222-104

SLEEVE,3/8" Tube

- (For 3/8" dia. tube)

1шт.

24

222-114

NUT,5/8"-24

NUT (For 3/8" dia. tube)

1шт.

25

A24007

TUBE - shut-off valve to prim. filter

1шт.

26

A29933

LOOM - fuel line

1шт.

27

A27039

CLIP - fuel line

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY - fuel line, Includes: Ref. 29 and 30

1шт.

29

222-104

SLEEVE,3/8" Tube

(For 3/8" dia. tube)

1шт.

30

222-114

NUT,5/8"-24

NUT (For 3/8" dia. tube)

1шт.

31

A23865

PUMP

- hand primer (at prim. filter)

1шт.

32

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - hand primer pump (1/4" x P.T. x 2")

1шт.

33

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY - leak-off line, Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" dia. tube)

1шт.

36

A24009

TUBE - leak-off, rear (2 piece) (see Ref. 48) to trac., Serial Range: -8291366

1шт.

37

22-3

UNION ASSY - leak-off lines (For 2 piece lines) to trac., Includes: Ref. 38 and 39, Serial Range: -8291366

1шт.

38

222-102

SLEEVE,1/4" Tube

2шт.

39

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" dia. tube)

2шт.

40

A24777

TUBE - leak-off, front (2 piece) (see Ref. 48) to trac., Serial Range: -8291366

1шт.

41

A40435

FILTER

ASSY - primary (See Figure 41)

1шт.

45

A11099

TOOL

BOX

1шт.

46

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - tool box (1/4 x 5/8" N.C. carr.)

2шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

A34691

TUBE - leak-off (1 piece) (55" long) (1st used trac. ser. no. 8291366)

1шт.
