(032) - ENGINE GASKET KITS, (377) SPARK IGNITION ENGINE, VALVE GRINDING

Запчасти Case IH 930-SERIES (032) - ENGINE GASKET KITS, (377) SPARK IGNITION ENGINE, VALVE GRINDING (02) - ENGINE

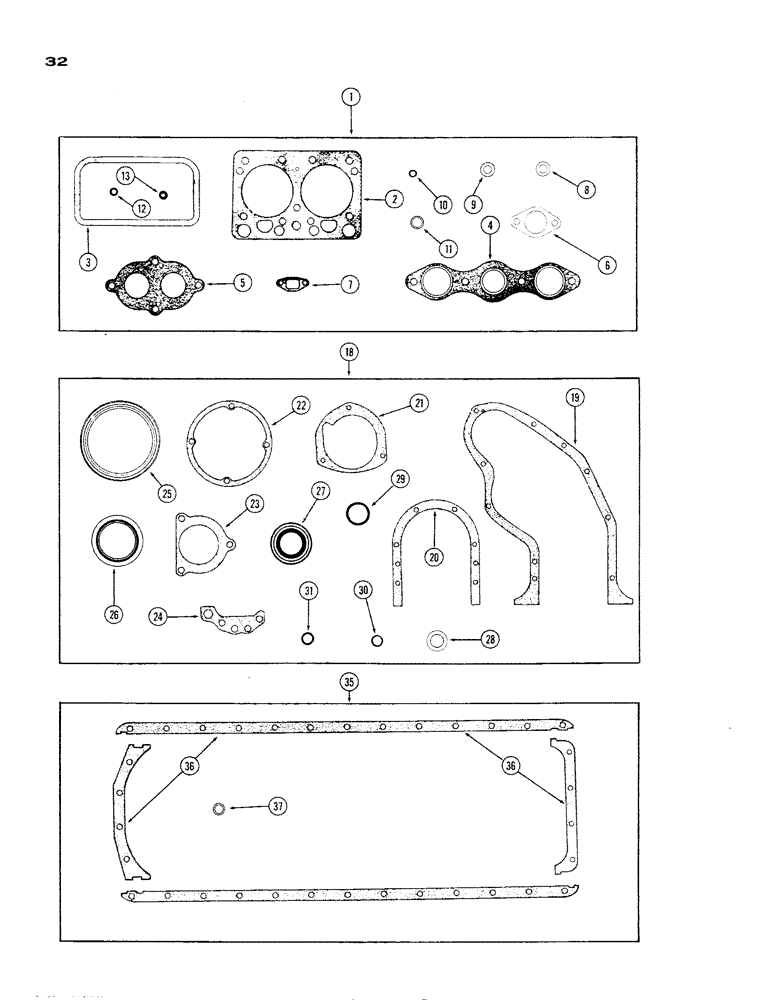

Схема запчастей Case IH 930-SERIES - (032) - ENGINE GASKET KITS, (377) SPARK IGNITION ENGINE, VALVE GRINDING (02) - ENGINE
36
4
26
12
3
7
20
2
6
36
25
37
31
10
30
18
19
28
1
24
9
29
11
27
21
23
13
5
35
8
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A40441

GASKET

KIT, for complete engine overhaul order 1-A40440, 1-A40443 and 1-A31142, Includes: Ref. 2 - 14

1шт.

2

A23118

GASKET

- cylinder head

3шт.

3

A27972

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A24549

GASKET

- manifold

3шт.

5

A32612

GASKET

- thermostat housing

1шт.

6

A27776

GASKET

- carburetor

1шт.

7

A27905

GASKET

- water manifold

6шт.

8

A23685

GASKET

- breather tube

3шт.

9

A23684

GASKET

GASKET - cyl. head cover stud

6шт.

10

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rockershaft oil tube

3шт.

11

A7669

RING

"O" RING - cyl. head water passage

6шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. hd. oil passage

3шт.

13

A10726

SEAL

SHIELD - intake valve stem

6шт.

14

A34133

GASKET

- breather tube bolt

3шт.

18

A40442

KIT

GASKET KIT - , for complete engine overhaul order 1-A40440, 1-A40443 and 1-A31142 , cylinder block, Includes: Ref. 19 - 31

1шт.

19

A33018

GASKET

- timing gear cover, cylinder block

1шт.

20

A32830

GASKET

- rear seal retainer, cylinder block

1шт.

21

M1127885

STEM

- water pump, cylinder block

1шт.

22

A27867

GASKET

- timing gear cover cap, cylinder block

1шт.

23

A27933

GASKET

- starter, cylinder block

1шт.

24

A21084

GASKET

- oil filter base, cylinder block

1шт.

25

A23085

OIL SEAL

- oil, crankshaft, rear, cylinder block

1шт.

26

A23433

OIL SEAL

- oil crankshaft, front, cylinder block

1шт.

27

A20939

OIL SEAL

SEAL - oil, clutch shaft, cylinder block

1шт.

28

A7292

SEAL

- oil, governor shaft, cylinder block

1шт.

29

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - magneto cover, cylinder block

1шт.

30

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor, cylinder block

1шт.

31

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump, cylinder block

2шт.

35

A31142

GASKET

KIT - , for complete engine overhaul order 1-A40440, 1-A40443 and 1-A31142 , oil pan, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order 4790AA)

1шт.

37

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.
