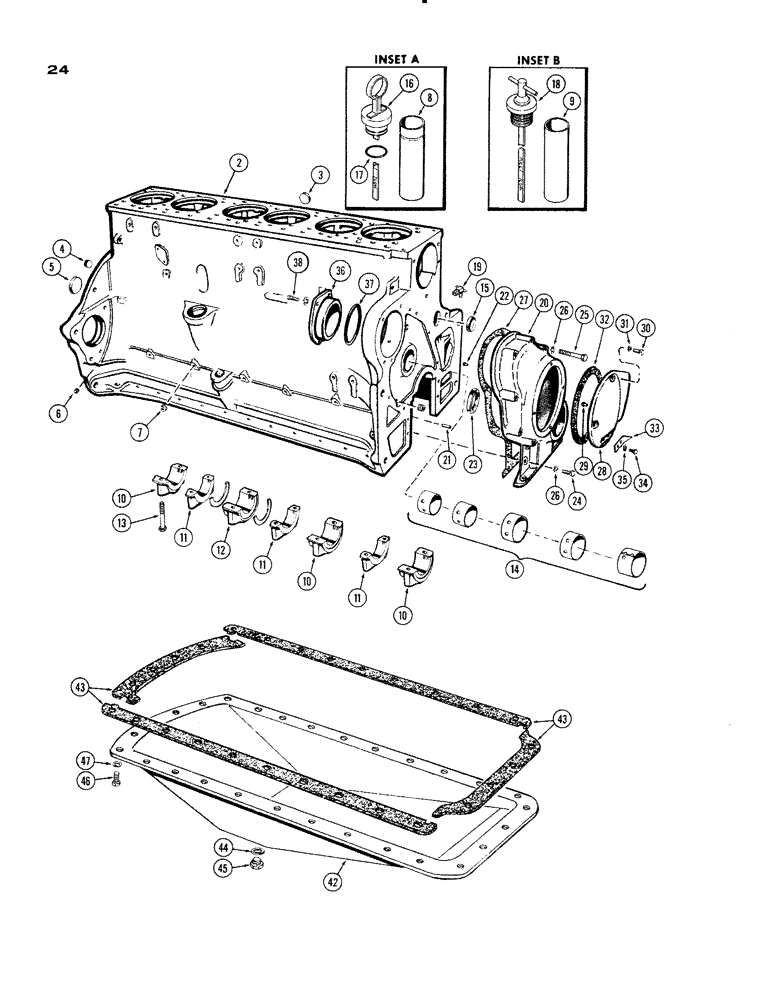

Запчасти Case IH 930-SERIES (024) - CYLINDER BLOCK, (377) SPARK IGNITION ENGINE (02) - ENGINE

A40528

BLOCK ASSY - short (Incl. stripped block, piston assy, connecting rods & brgs. crankshaft & brgs., camshaft, timing gears oil pump, push rods & valve lifters, rear oil seal & retainer), Includes: Ref. 2 - 15

1шт.

2

A23491

BLOCK

ASSM - stripped, Includes: Ref. 3 - 15

1шт.

3

41-1622

PLUG,Cup, 1 3/8", Stainless

- left side of block (1-3/8" cup type)

1шт.

4

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" socket hd.

1шт.

5

A24361

PLUG

- rear, camshaft hole (2-3/8" cup type)

1шт.

6

221-41

PLUG

- pipe, 1/8" slotted hd.

3шт.

7

221-1843

PLUG

- (3/8" P.T., sckt. hd.)

6шт.

8

A34540

TUBE

SOCKET - oil level gauge (See inset A) (1st used eng. ser. no. 2141473)

1шт.

9

A20714

X

SOCKET - oil level gauge (See inset B) to eng., Serial Range: -2141473

1шт.

10

A24941

CAP

- crankshaft bearing, wide

3шт.

11

A24942

CYLINDER END CAP

CAP - crankshaft bearing, narrow

3шт.

12

A24943

CAP

- crankshaft bearing, thrust

1шт.

13

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg. cap to blk. (5/8 x 3-1/4" N.C. spec.)

14шт.

14

A23544

BUSHING

SET - camshaft

1шт.

15

41-1628

PLUG,Cup, 1 3/4", Stainless

- front (1-3/4" cup type) (Replaces A23654)

1шт.

16

A34541

DIPSTICK

GAUGE ASSY. - oil level (See inset A) (1st used trac. ser. no. 2141473), Includes: Ref. 17

1шт.

17

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

18

A20739

GAUGE

- oil level (See inset B) to eng., Serial Range: -2141473

1шт.

19

A23656

COCK, DRAIN

VALVE - water drain

1шт.

20

A20703

COVER ASSY. - timing gear, Includes: Ref. 21 - 23

1шт.

21

A27840

PIN

- dowel, cover to block (5/16 x 3/4")

2шт.

22

A27869

BUTTON - thrust

2шт.

23

A23433

OIL SEAL

- oil frt., crankshaft (2-5/8 x 3-5/8 x 1/2")

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2 N.C. hex. hd.

8шт.

26

92-6

LOCK WASHER,3/8"

10шт.

27

A33018

GASKET

-, Serial Range: cover-block

1шт.

28

A20833

CAP - timing cover, Includes: Ref. 29

1шт.

29

A27869

BUTTON - thrust

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

A27867

GASKET

-, Serial Range: cap-cover

1шт.

33

A28218

POINTER - timing

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

35

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

36

A7625

COVER - opening

1шт.

37

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cover

1шт.

38

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

42

A23637

PAN - oil

1шт.

43

A31142

GASKET

KIT - oil pan, Includes: Ref. 44

1шт.

44

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

45

A14280

PLUG

- drain, oil pan

1шт.

46

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

32шт.

46

A9936

BOLT - (3/8 x 1" N.C. hex.), oil pan

2шт.

47

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.
