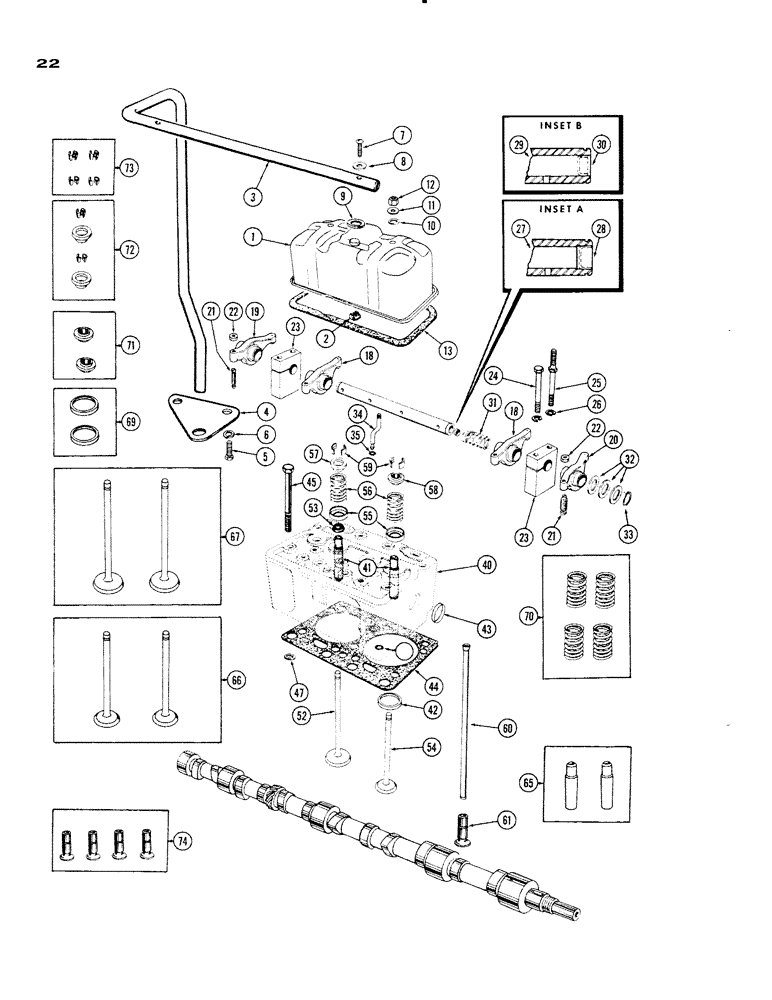

Запчасти Case IH 930-SERIES (022) - CYLINDER HEAD ASSEMBLY, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A23681

COVER ASSY

- cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4" N.C. cage type)

1шт.

3

A24184

TUBE

- breather

1шт.

4

A23686

BRACKET

- breather tube

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- brkt. (3/8 x 1-1/2" N.C. hex.)

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube (1/4 x 2-1/4" N.C. rd. hd.)

3шт.

8

A34133

GASKET

- screw (9/32 x 1/2 x 3/64" fiber)

3шт.

9

A23685

GASKET

- tue (11/16 x 1-1/16 x 1/16" rubber)

3шт.

10

A23684

GASKET

GASKET - cover studs (15/32 x 7/8 x 1/8" rubber)

6шт.

11

A23683

WASHER

- cover studs (15/32 x 1-25/64 x 1/16" dished)

6шт.

12

25-117

NUT,7/16"-20, G5

- cover stud (7/16" N.F. hex.)

6шт.

13

A27972

CYLINDER HEAD GASKET

- cyl. head cover

3шт.

18

A22322

ROCKER

ARM ASSY - rocker, intake valve (Includes: Ref. 21 and 22)

6шт.

19

A22326

ROCKER

ARM ASSY - rocker, exhaust valve (Nos. 2,4 and 6 cyl.) (Includes: Ref. 21 and 22)

3шт.

20

A22324

ROCKER

ARM ASSY - rocker, exhaust valve (Nos. 1, 3 and 5 cyl.) (Includes: Ref. 21 and 22)

3шт.

21

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

22

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw (3/8" N.F. half hex.)

1шт.

23

A27881

BRACKET

- rocker shaft

6шт.

24

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

6шт.

25

A28124

STUD - brkt. and cyl. head cover

6шт.

26

92-7

LOCK WASHER,7/16"

12шт.

27

A21100

SHAFT

ASSY - rocker arm (reamed) (See inset A) (used trac. ser. No. A2107858 and up), Includes: Ref. 28

3шт.

28

A26667

PLUG - cup, rockershaft (9/16 x 3/16")

2шт.

29

A23671

X

SHAFT ASSY - rocker arm (Not Reamed) (See Inset B) (Order A21100) to eng., Includes: Ref. 30, Serial Range: -A2107858

3шт.

30

A22318

PLUG - cup, rockershaft (17/32 x 1/4")

2шт.

31

A27877

SPRING

- rocker shaft

3шт.

32

A27878

WASHER

- rocker shaft ends (29/32 x 1-5/16 x .028")

18шт.

33

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

34

A27879

TUBE

- oil, rocker shaft

3шт.

35

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

40

A21511

HEAD

ASSY. - cylinder, Includes: Ref. 41 - 43

3шт.

41

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order A21673)

12шт.

42

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order A33453)

6шт.

43

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl. head (1-41/64" cup type) (Replaces A23653)

2шт.

44

A23118

GASKET

- cylinder head

3шт.

45

A23355

BOLT

- cyl. hd. (9/16 x 6" N.C. hex.)

27шт.

46

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

47

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber)

6шт.

52

NSS

NOT SOLD SEPARAT

VALVE - intake (Order A33455)

6шт.

53

A10726

SEAL

SHIELD - oil, intake valve

6шт.

54

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order A33456)

6шт.

55

A27866

SEAT

- valve spring

12шт.

56

NSS

NOT SOLD SEPARAT

SPRING - valve (Order A21694)

12шт.

57

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order A21657)

6шт.

58

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order A24993)

6шт.

59

NSS

NOT SOLD SEPARAT

KEEPER - valve spring (Order A40352)

24шт.

60

A21060

ROD

- push

12шт.

61

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order A21653)

12шт.

66

A33456

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 2)

3шт.

67

A33455

VALVE

KIT - intake (Set of 2)

3шт.

68

A21673

GUIDE

KIT - valve (Set of 2)

6шт.

69

A33453

KIT

INSERT KIT - exhaust valve (Set of 2)

3шт.

70

A21694

SPRING

KIT - valve (Set of 4)

3шт.

71

A24993

CAP

ROTO CAP KIT - exhaust valve (Set of 2)

3шт.

72

A21657

LOCK

RETAINER KIT - intake valve (Set of 2 retainers and 4 keepers)

3шт.

73

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

3шт.

74

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.
