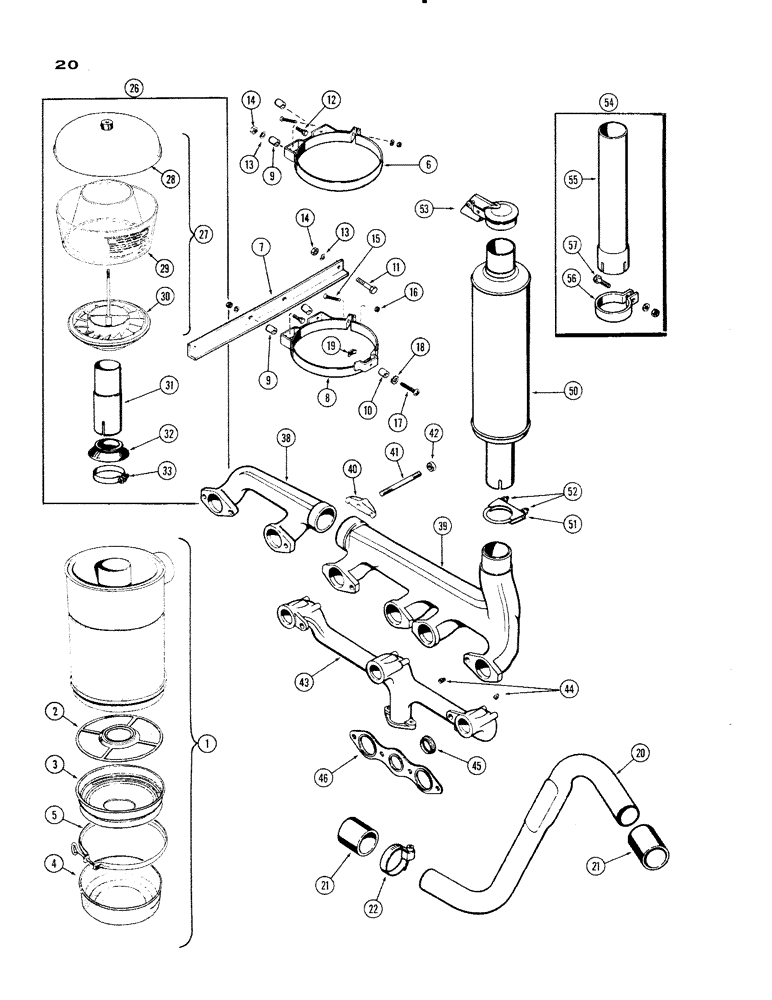

Запчасти Case IH 930-SERIES (020) - AIR CLEANER AND PRE-CLEANER, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A23804

CLEANER

ASSY - air (8"), Includes: Ref. 2 - 5

1шт.

2

A24178

SCREEN

1шт.

3

A24179

BAFFLE - oil, inner cup

1шт.

4

A24177

X

CUP - oil, outer

1шт.

5

A30865

CLAMP

- oil cup retaining

1шт.

6

A23807

BAND - air cleaner, upper

1шт.

7

A23805

SUPPORT - lower band

1шт.

8

A23806

BAND - air cleaner, lower

1шт.

9

O1176L

X

SPACER - band

4шт.

10

A26547

SPACER,1/4" Pipe x 1/2"

- lower band

1шт.

11

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Support Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

12

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- band (3/8 x 1-1/2" N.F. hex.)

4шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

25-116

NUT,Hex, 3/8"-24, G5

(3/8" N.F. hex.)

6шт.

15

75-424

SCREW

- band (1/4" x 1-1/2" N.C. rd. hd.)

2шт.

16

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C. sq.)

2шт.

17

175-443

SCREW - lower band (1/4 x 1-1/4' N.C. truss hd.)

1шт.

18

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

1шт.

19

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, lower band

1шт.

20

A23808

TUBE - air, Serial Range: cleaner-manifold

1шт.

21

A20197

HOSE ASSY.

HOSE - air cleaner tube

2шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

4шт.

26

A24435M

PRE-CLEANER ATTACHMENT, Includes: Ref. 27 - 33

1шт.

27

A64589

PRECLEANER

PRE-CLEANER ASSY, Includes: Ref. 28 - 30

1шт.

28

73187

COVER

- pre-cleaner

1шт.

29

NLS

NO LONGER SERVICED

BOWL - pre-cleaner (plastic)

1шт.

30

NSS

NOT SOLD SEPARAT

BASE - air baffle (Order A24391)

1шт.

31

A24392

EXTENSION

- pre-cleaner

1шт.

32

A24393

SHIELD

- extension pipe

1шт.

33

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - extension pipe

1шт.

38

A24714

MANIFOLD

- exhaust, front, and muffler

1шт.

REFER TO ILLUSTRATION, REF. 38 IS SHOWN TWO TIMES. SHOULD READ FRONT, PART A24714 AND REAR IS REF. 39 A24715.

1шт.

39

A24715

MANIFOLD

- exhaust, rear, and muffler

1шт.

40

A24368

CLAMP

- manifold, and muffler

6шт.

41

A27911

STUD

- manifold clamp (7/16" N.C./N.F. x 6"), and muffler

6шт.

42

25-117

NUT,7/16"-20, G5

(7/16" N.F. hex.), manifold and muffler

6шт.

43

A9510

MANIFOLD - intake, and muffler

1шт.

44

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - manifold (1/8" P.T., sq. hd.), and muffler

3шт.

45

A26433

CAP

FERRULE - intake manifold, and muffler

3шт.

46

A24549

GASKET

- manifold, and muffler

3шт.

50

A24103

MUFFLER

and manifold

1шт.

51

A27115

CLAMP

ASSY. - muffler, and manifold, Includes: Ref. 52

1шт.

52

9635082

NUT,5/16" - 18, Gr 5

- clamp (5/16" N.C. hex.), manifold and muffler

2шт.

53

A33743

CAP

- weather, manifold and muffler

1шт.

54

A24111M

MUFFLER EXTENSION ATTACHMENT, and manifold, Includes: Ref. 55 - 57

1шт.

55

A24112

EXTENSION

PIPE - extension, manifold and muffler

1шт.

56

A24113

CLAMP

- extension pipe, manifold and muffler

1шт.

57

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Clamp, manifold and muffler Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.
