(018) - ENGINE GASKET KITS, (401) DIESEL ENGINE, VALVE GRINDING

Запчасти Case IH 930-SERIES (018) - ENGINE GASKET KITS, (401) DIESEL ENGINE, VALVE GRINDING (02) - ENGINE

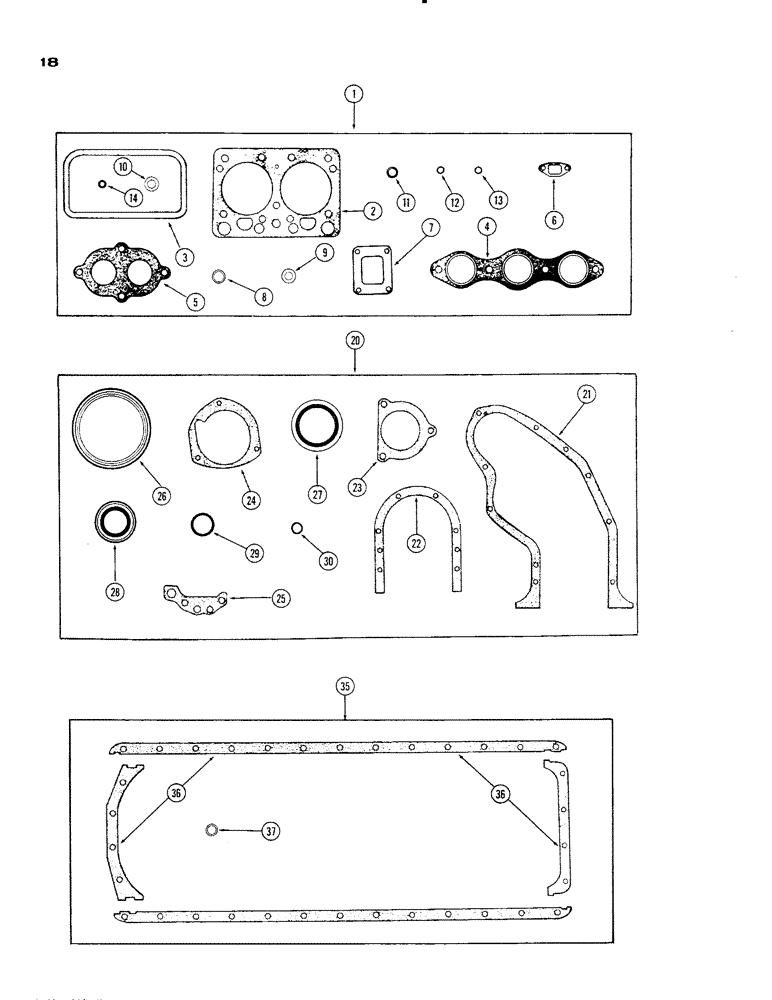

Схема запчастей Case IH 930-SERIES - (018) - ENGINE GASKET KITS, (401) DIESEL ENGINE, VALVE GRINDING (02) - ENGINE
28
20
23
13
8
11
7
3
36
26
35
4
10
21
37
27
14
30
2
36
9
25
29
1
6
5
12
22
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A40440

KIT

GASKET KIT, for complete engine overhaul order 1-A40440, 1-A40443 and 1-A31142 , Includes: Ref. 2 - 15

1шт.

2

A23118

GASKET

- cylinder head

1шт.

3

A27972

CYLINDER HEAD GASKET

- cylinder head cover

1шт.

4

A34875

GASKET,2.2mm Thk

- manifold

3шт.

5

A32612

GASKET

- thermostat housing

1шт.

6

A27905

GASKET

- water manifold

1шт.

7

A20678

GASKET

- air intake elbow

1шт.

8

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle (Replaces A10679)

6шт.

9

A23685

GASKET

- breather tube

3шт.

10

A23684

GASKET

GASKET - cyl. head cover stud

6шт.

11

A7669

RING

"O" RING - cyl. head water passage

6шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

3шт.

13

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

3шт.

14

A10726

SEAL

SHIELD - intake valve stem

6шт.

15

A34133

GASKET

- breather tube bolt

3шт.

20

A40443

KIT

GASKET KIT - , for complete engine overhaul order 1-A40440, 1-A40443 and 1-A31142 , cylinder block, Includes: Ref. 21 - 30

1шт.

21

A33018

GASKET

- timing gear cover, cylinder block

1шт.

22

A32830

GASKET

- rear oil seal retainer, cylinder block

1шт.

23

A27933

GASKET

- starter, cylinder block

1шт.

24

M1127885

STEM

- water pump, cylinder block

1шт.

25

A21084

GASKET

- oil filter base, cylinder block

1шт.

26

A23085

OIL SEAL

- oil, crankshaft, rear, cylinder block

1шт.

27

A23433

OIL SEAL

- oil, crankshaft, front, cylinder block

1шт.

28

A20939

OIL SEAL

SEAL - oil, clutch shaft, cylinder block

1шт.

29

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump housing, cylinder block

1шт.

30

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump, cylinder block

2шт.

35

A3142

GASKET KIT, for complete engine overhaul order 1-A40440, 1-A40443 and 1-A31142 , oil pan, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (order 4790AA)

1шт.

37

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.
