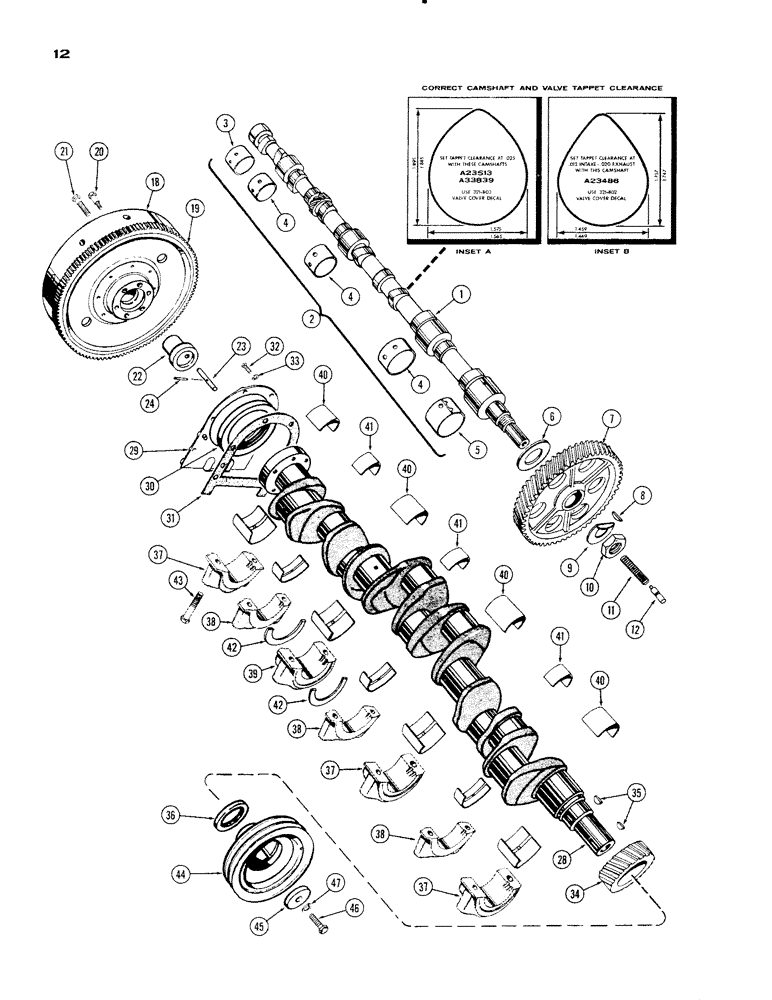

Запчасти Case IH 930-SERIES (012) - CAMSHAFT, (401) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A33839
CAMSHAFT
- w/steel gear insert (See Inset A) (See Engine Data Decal 321-803)
1шт.
1
A23513
CAMSHAFT
- w/cast gear insert (See Inset A) (See Eng. Decal 321-803) (Order 1-A33839 & 1-A33840)
1шт.
1
A23486
X
CAMSHAFT - w/cast gear insert (See Inset B) (See Eng. Data Decal 321-802) (Order 1-A33839, 1-A33840 & 1-321-803)
1шт.
2
A23544
BUSHING
SET - camshaft, Includes: Ref. 3 - 5
1шт.
3
NSS
NOT SOLD SEPARAT
BUSHING - rear (15/32" wide)
1шт.
4
NSS
NOT SOLD SEPARAT
BUSHING - intermediate (1-27/64" wide)
3шт.
5
NSS
NOT SOLD SEPARAT
BUSHING - front (1-41/64" wide)
1шт.
6
A21017
WASHER
- thrust, camshaft (2-1/4 x 3-1/4 x 1/8")
1шт.
7
A22604
GEAR
- camshaft timing
1шт.
8
126-28
WOODRUFF KEY,#18, 1/4" x 1 1/8"
Timing gear #18, 1/4" x 1 1/8"
1шт.
9
A26444
LOCK WASHER
- tab
1шт.
10
A26445
NUT
- timing gear retaining
1шт.
11
A27853
SPRING
- thrust plunger
1шт.
12
A27852
PLUNGER
- thrust, camshaft
1шт.
18
A24334
FLYWHEEL ASSY. (Foot clutch), and crankshaft, Includes: Ref. 19
1шт.
18
A22897
FLYWHEEL ASSY (Hand clutch), and crankshaft, Includes: Ref. 19
1шт.
19
A27920
GEAR
- starter ring, crankshaft and flywheel
1шт.
20
A24353
BOLT - dowel, flywheel (9/16 x 2-7/8" N.F. spec.), and crankshaft
2шт.
21
A24352
X
BOLT - flywheel (Foot Clutch) (5/8 x 2-7/8" N.F. spec.), and crankshaft
4шт.
21
14-1048
BOLT,Hex, 5/8" - 18 x 3", Gr 5
- flywheel (hand clutch) (5/8 x 3" N.F. hex.), and crankshaft
4шт.
22
A27921
PLUG
- oil control, crankshaft and flywheel
1шт.
23
A27922
PIN - wiggle, oil control plug, crankshaft and flywheel
1шт.
24
138-71
LOCK PIN,5/32" x 5/8", Slotted
PIN, , Wiggle pin, crankshaft and flywheel 5/32" x 5/8", Slotted
1шт.
28
A27830
CRANKSHAFT, and flywheel
1шт.
29
A32182
RETAINER
- rear oil seal, crankshaft and flywheel
1шт.
30
A23085
OIL SEAL
- oil, rear (4-3/4 x 5-3/4 x 1/2"), crankshaft and flywheel
1шт.
31
A32830
GASKET
- retainer, crankshaft and flywheel
1шт.
32
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Retainer, crankshaft and flywheel Hex, 3/8"-16 x 1 1/4", G5, Full Thd
6шт.
33
92-6
LOCK WASHER,3/8"
crankshaft and flywheel 3/8"
6шт.
34
A27837
GEAR
- crankshaft timing, and flywheel
1шт.
35
126-129
WOODRUFF KEY,#C, 5/16" x 1 1/8", HT
Timing gear & pulley, crankshaft and flywheel #C, 5/16" x 1 1/8", HT
2шт.
36
A23433
OIL SEAL
- oil, frt. (2-5/8 x 3-5/8 x 1/2"), crankshaft and flywheel
1шт.
37
A24941
CAP
- crankshaft bearing, wide, and flywheel
3шт.
38
A24942
CYLINDER END CAP
CAP - crankshaft bearing, narrow, and flywheel
3шт.
39
A24943
CAP
- crankshaft bearing, thrust, and flywheel
1шт.
40
A28687
LINING
INSERT ASSY - brg., wide (Std.), crankshaft and flywheel
4шт.
40
A7182
KIT
INSERT ASSY - brg., wide (-.002"), crankshaft and flywheel
4шт.
40
A7188
BEARING LINER
INSERT ASSY - brg., wide (-.010"), crankshaft and flywheel
4шт.
40
A7194
KIT
INSERT ASSY - brg., wide (.020"), crankshaft and flywheel
4шт.
40
A7200
KIT
INSERT ASSY - brg., wide (-.020"), crankshaft and flywheel
4шт.
41
A20394
LINING
INSERT ASSY - brg., narrow (Std.), crankshaft and flywheel
3шт.
41
A20579
LINING
INSERT ASSY - brg., narrow (-.002"), crankshaft and flywheel
3шт.
41
A20582
LINING
INSERT ASSY - brg., narrow (-.010"), crankshaft and flywheel
3шт.
41
A20585
KIT
INSERT ASSY - brg., narrow (-.020"), crankshaft and flywheel
3шт.
41
A20588
KIT
INSERT ASSY - brg., narrow (-.030"), crankshaft and flywheel
3шт.
42
A27835
WASHER
- thrust (Std.), crankshaft and flywheel
2шт.
42
A7204
WASHER
- thrust (-.006"), crankshaft and flywheel
2шт.
43
A27836
SPECIAL BOLT,5/8" - 11 x 3 1/4"
- bearing cap (5/8 x 3-1/4" N.C. spec.), crankshaft and flywheel
14шт.
44
A23644
PULLEY
- crankshaft, and flywheel
1шт.
45
A27903
WASHER
- pulley (21/32 x 2-1/8 x 1/4"), crankshaft and flywheel
1шт.
46
88112
BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5
- pulley ret. (5/8 x 1-1/2" N.F. spec.), Crankshaft and flywheel
1шт.
Выбрано товаров: 52
