Запчасти Case IH 930-SERIES (010) - CYLINDER BLOCK, (401) DIESEL ENGINE (02) - ENGINE

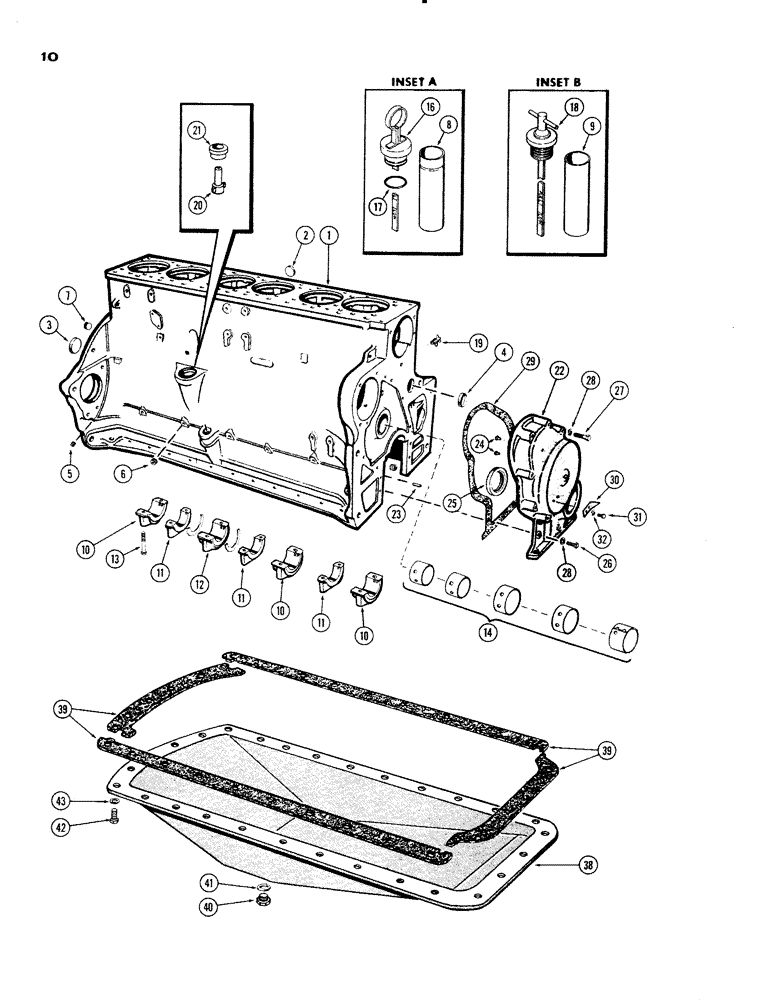

Схема запчастей Case IH 930-SERIES - (010) - CYLINDER BLOCK, (401) DIESEL ENGINE (02) - ENGINE
28
32
25
3
7
10
19
43
31
11
17
2
6
18
39
30
13
28
38
26
5
8
10
12
10
9
42
39
11
40
22
20
4
23
27
1
41
11
21
29
14
16

Артикул

Название

Примечание

Количество

A40527

BLOCK ASSY - short (incl. stripped block, piston assy, connecting rods & brgs. crankshaft & brg., camshaft, timing gears, oil pump, push rods & valve lifters, rear oil seal & ret. & tach. drive), Includes: Ref. 1 - 14

1шт.

1

A23489

BLOCK ASSY - stripped, Includes: Ref. 2 - 14

1шт.

2

41-1622

PLUG,Cup, 1 3/8", Stainless

- left hand side (1-3/8" cup type)

1шт.

3

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

4

41-1628

PLUG,Cup, 1 3/4", Stainless

- front (1-3/4" cup type)

1шт.

5

221-41

PLUG

- (1/8" P.T. sltd. hd.)

3шт.

6

221-1843

PLUG

- (3/8" P.T. sckt. hd.)

6шт.

7

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - (1" P.T., sckt. hd.)

1шт.

8

A34540

TUBE

SOCKET - oil level gauge (See inset A) (1st. used eng. ser. no. 2141473)

1шт.

9

A20714

X

SOCKET - oil level gauge (See inset B) to eng., Serial Range: -2141473

1шт.

10

A24941

CAP

- crankshaft brg., wide

3шт.

11

A24942

CYLINDER END CAP

CAP - crankshaft brg., narrow

3шт.

12

A24943

CAP

- crankshaft brg., thrust

1шт.

13

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg. caps (5/8 x 3-1/4" N.C. spec.)

14шт.

14

A23544

BUSHING

SET - camshaft

1шт.

16

A34541

DIPSTICK

GAUGE ASSY. - oil level (See inset A) (1st used eng. ser. no. 2141473), Includes: Ref. 17

1шт.

17

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

18

A20739

GAUGE

- oil level (See inset B) to eng., Serial Range: -2141473

1шт.

19

A23656

COCK, DRAIN

VALVE - water drain

1шт.

20

A24528

ADAPTER

- tachometer drive

1шт.

21

A11195

PLUG

- tach. drive adapter

1шт.

22

A20718

COVER ASSY - timing gears, Includes: Ref. 23 - 25

1шт.

23

A27840

PIN

- cover locating (5/16 x 3/4")

2шт.

24

A27869

BUTTON - thrust bumper

2шт.

25

A23433

OIL SEAL

- oil, crankshaft, frt. (2-5/8 x 3-5/8 x 1/2")

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

8шт.

28

92-6

LOCK WASHER,3/8"

10шт.

29

A33018

GASKET

- timing gear cover

1шт.

30

A21362

CLIP

POINTER - timing indicator

1шт.

31

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

32

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

38

A23637

PAN - oil

1шт.

39

A31142

GASKET

KIT - oil pan

1шт.

40

A14280

PLUG

- drain, oil pan, Includes: Ref. 41

1шт.

41

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

42

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

32шт.

42

A9936

BOLT - (3/8" x 1" N.C. hex.), oil pan

2шт.

43

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.

Выбрано товаров: 39
