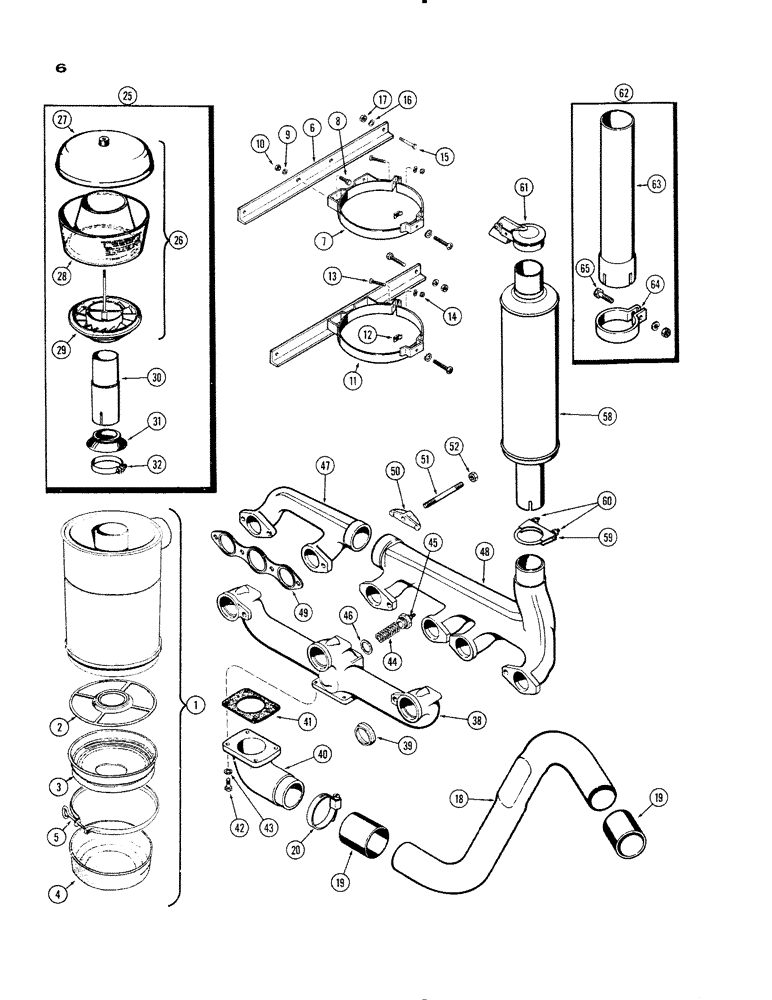

Запчасти Case IH 930-SERIES (006) - AIR CLEANER AND PRE-CLEANER, (401) DIESEL ENGINE (02) - ENGINE

1

A23801

CLEANER ASSY - air (9"), Includes: Ref. 2 - 5

1шт.

2

A24174

SCREEN

1шт.

3

A24176

BAFFLE - oil, inner cup

1шт.

4

A24173

CUP - oil, outer

1шт.

5

A24175

CLAMP - oil cup retaining

1шт.

6

A23786

BRACE - upper

1шт.

7

A10867

BAND - air cleaner, upper

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Band to brace Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

2шт.

11

A23798

BAND - air cleaner, lower, w/support

1шт.

12

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage

2шт.

13

75-424

SCREW

- band tension (1/2 x 1/2" N.C., rd.hd.)

2шт.

14

25-224

SQUARE NUT,Sq, 1/4"-20

(1/4" N.C. sq.)

2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

4шт.

18

A23803

TUBE

- air, Serial Range: cleaner-manifold

1шт.

19

A23802

HOSE

- tube

2шт.

20

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

4шт.

25

A24434M

PRE-SCREENER ATTACHMENT, Includes: Ref. 26 - 32

1шт.

26

A24391

AIR CLEANER

PRE-CLEANER ASSY., Includes: Ref. 27 - 29

1шт.

27

73187

COVER

- pre-cleaner

1шт.

28

365413R1

BOWL

- pre-cleaner (plastic)

1шт.

29

NSS

NOT SOLD SEPARAT

BASE - air baffle (order A24391)

1шт.

30

A24389

EXTENSION - pre-cleaner

1шт.

31

A24390

SHIELD

- extension pipe

1шт.

32

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - extension pipe

1шт.

38

A20700

MANIFOLD - intake, and muffler

1шт.

39

A21383

CAP

FERRULE - intake manifold, and muffler

3шт.

40

A23863

ELBOW - air intake, manifold and muffler

1шт.

41

A20678

GASKET

- air intake elbow, manifold and muffler

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Elbow, manifold and muffler Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

43

92-6

LOCK WASHER,3/8"

manifold and muffler 3/8"

4шт.

44

A37775

HEATER

ASSY. - manifold (Replaces A24396), and muffler, Includes: Ref. 45

1шт.

45

129-503

NUT,1/4"-20, Brass

Manifold and muffler 1/4"-20, Brass

1шт.

46

A20916

MANIFOLD GASKET

GASKET - heater to manifold, and muffler

1шт.

47

A24714

MANIFOLD

- exhaust, front, and muffler

1шт.

48

A24715

MANIFOLD

- exhaust, rear, and muffler

1шт.

49

A34875

GASKET,2.2mm Thk

- exhaust manifold (Replaces A24717), and muffler

3шт.

50

A24368

CLAMP

- manifold, and muffler

6шт.

51

A27911

STUD

- clamp (7/16" N.C./N.F. x 6"), manifold and muffler

6шт.

52

25-117

NUT,7/16"-20, G5

(7/16" N.F. HEX.), manifold and muffler

6шт.

58

A24103

MUFFLER

and manifold

1шт.

59

A27115

CLAMP

ASSY. - muffler, and manifold, Includes: Ref. 60

1шт.

60

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.), manifold and muffler

2шт.

61

A33743

CAP

- weather, manifold and muffler

1шт.

62

A24111M

MUFFLER EXTENSION ATTACHMENT, and manifold, Includes: Ref. 63 - 65

1шт.

63

A24112

EXTENSION

PIPE - extension, manifold and muffler

1шт.

64

A24113

CLAMP

- pipe, manifold and muffler

1шт.

65

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Clamp, manifold and muffler Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.
