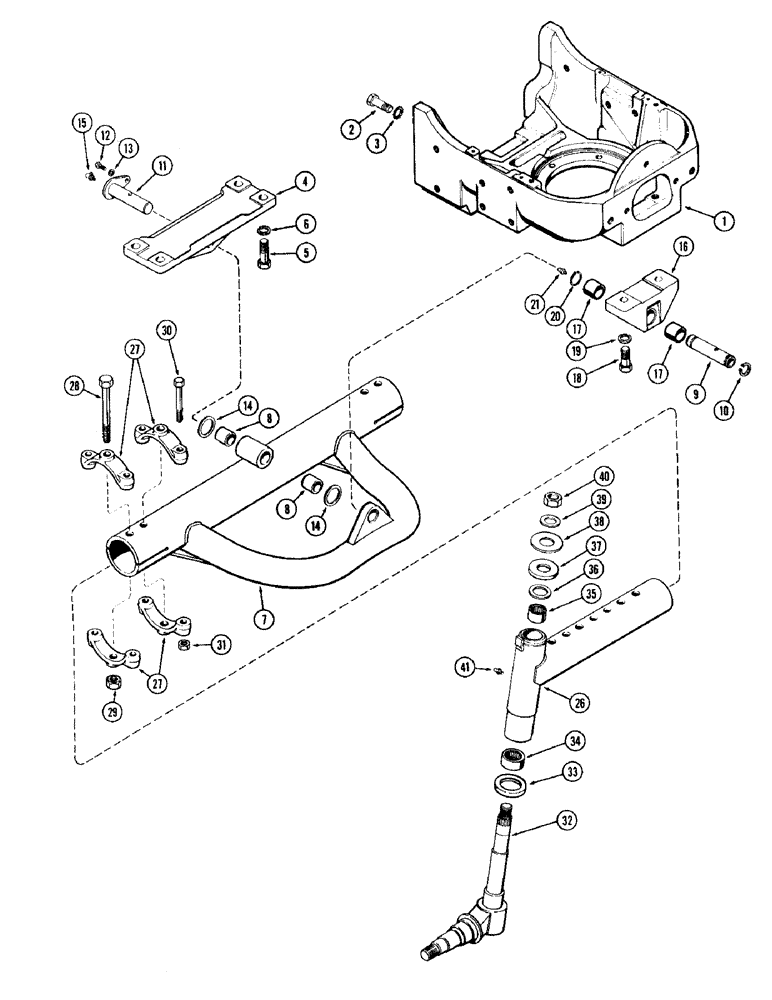

Запчасти Case IH 930-SERIES (089A) - ADJUSTABLE FRONT AXLE, WESTERN MODELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8339078 (06) - POWER TRAIN

1

A34790

SUPPORT - front axle

1шт.

2

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Support Hex, 3/4"-10 x 2 1/4", G5

4шт.

3

A34651

LOCK WASHER

- (3/4" ext. skpf.)

4шт.

4

A34648

PEDESTAL - front axle (Order A57326)

1шт.

5

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Pedestal Hex, 3/4"-10 x 2 1/2", G5

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

A34679

AXLE ASSY. - front (38-1/2" wide), Includes Ref: 8 - 10

1шт.

8

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- pivot pin (1-1/4 x 1-1/2 x 1-1/2")

2шт.

9

A34627

PIN

- pivot, axle, front (5-5/8" long)

1шт.

10

F62020

SNAP RING,#125, Ext

Ring, Snap, , front pivot pin #125, Ext

1шт.

11

A34649

PIN

- pivot, axle, rear

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust (1-17/64 x 2-3/16 x 1/8")

2шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

16

A34646

SUPPORT ASSY. - front axle, Includes Ref: 17

1шт.

17

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- pivot pin (1-1/4 x 1-1/2 x 1/2")

2шт.

18

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Support Hex, 3/4"-10 x 2 1/2", G5

2шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

20

F62020

SNAP RING,#125, Ext

Ring, Snap, , front pivot pin #125, Ext

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

26

A34736

EXTENSION - axle (19-1/32" with 7 holes)

2шт.

27

A34693

CLAMP - axle

8шт.

28

15-12112

BOLT (SPREADER),Hex, 3/4" - 10 x 7", Gr 5

BOLT - clamp (3/4 x 7" N.C. hex.)

4шт.

29

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" N.C. hex.)

4шт.

30

113-636

X

BOLT - clamp (5/8 x 4-1/2" N.C. hex.)

8шт.

31

25-1610

NUT,5/8"-11, G5, Hvy

- (5/8" N.C. hex.)

8шт.

32

A57443

SPINDLE

- front wheel (king pin) (Replaces A34630)

2шт.

33

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust (2 x 3 x 5/8")

2шт.

34

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower (2 x 2-3/8 x 1")

2шт.

35

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, upper (1-1/2 x 1-7/8 x 1")

2шт.

36

A27654

SEAL - oil (1-1/2 x 1-7/8 x 3/16")

2шт.

37

A7849

GUARD

SHIELD - dust

2шт.

38

A24645

SHIM,.0149" Thk

Spindle (#28 gauge) .0149" Thk

1шт.

38

A24643

SHIM,.0359" Thk

Spindle (#20 gauge) .0359" Thk

1шт.

38

A24642

SHIM,.0598" Thk

Spindle (#16 gauge) .0598" Thk

1шт.

38

A24639

SHIM,.1345" Thk

Spindle (#10 gauge) .1345" Thk

1шт.

39

A35047

WASHER

- spindle nut (1-3/16 x 2-1/2 x 5/32")

2шт.

40

129-131

NUT,1 1/8"-12, G5

- spindle (1-1/8" N.F. hex.)

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
