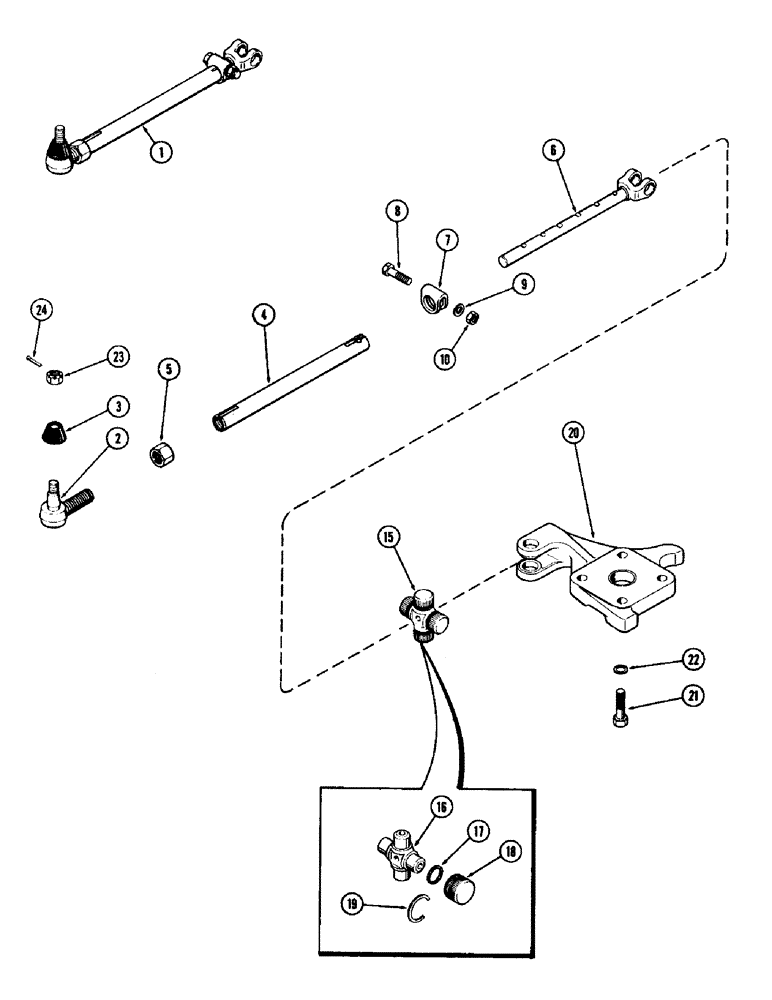

Запчасти Case IH 930-SERIES (087A) - DRAG LINKS, GENERAL PURPOSE MODELS, 53" TO 73" AND 60" TO 88" TREAD, FIRST USED TRACTOR S/N 8339078 (06) - POWER TRAIN

1

NS

NOT SERVICED

DRAG LINK ASSY. - (53" to 73" tread) (Order components)

1шт.

1

NS

NOT SERVICED

DRAG LINK ASSY. - (60" to 88" tread) (Order components), Includes Ref: 2 - 10

1шт.

2

A41512

ROD

END ASSY. - drag link to str. arm

1шт.

3

A41515

SEAL

- end

1шт.

4

A41510

TUBE

- (53" to 73" tread) (15-27/32" long)

1шт.

4

A41516

TUBE

- (60" to 88" tread) (19-7/64" long)

1шт.

5

A41511

NUT

- lock, end

1шт.

6

A41513

LINK

- (53" to 73" tread) (14-17/64" long)

1шт.

6

A41529

LINK

- (60" to 88" tread) (19-37/64" long)

1шт.

7

A41561

CLAMP

-, Serial Range: tube-link

1шт.

8

114-411

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- clamp (1/2 x 2-1/4" N.F. hex.)

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

129-545

NUT,1/2"-20, G8

1шт.

15

A30435

KIT

JOINT ASSY. - universal, Includes Ref: 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

CROSS - universla joint (Order A30435)

1шт.

17

A30766

WASHER - (cork)

4шт.

18

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

19

A31149

RING, SNAP

RING - snap, bearing ret.

4шт.

20

A24659

ARM

- steering, cross

1шт.

21

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Arm Hex, 5/8"-18 x 1 3/4", G5

4шт.

22

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

23

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - drag link end (5/8" N.F. hex., sltd.)

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
