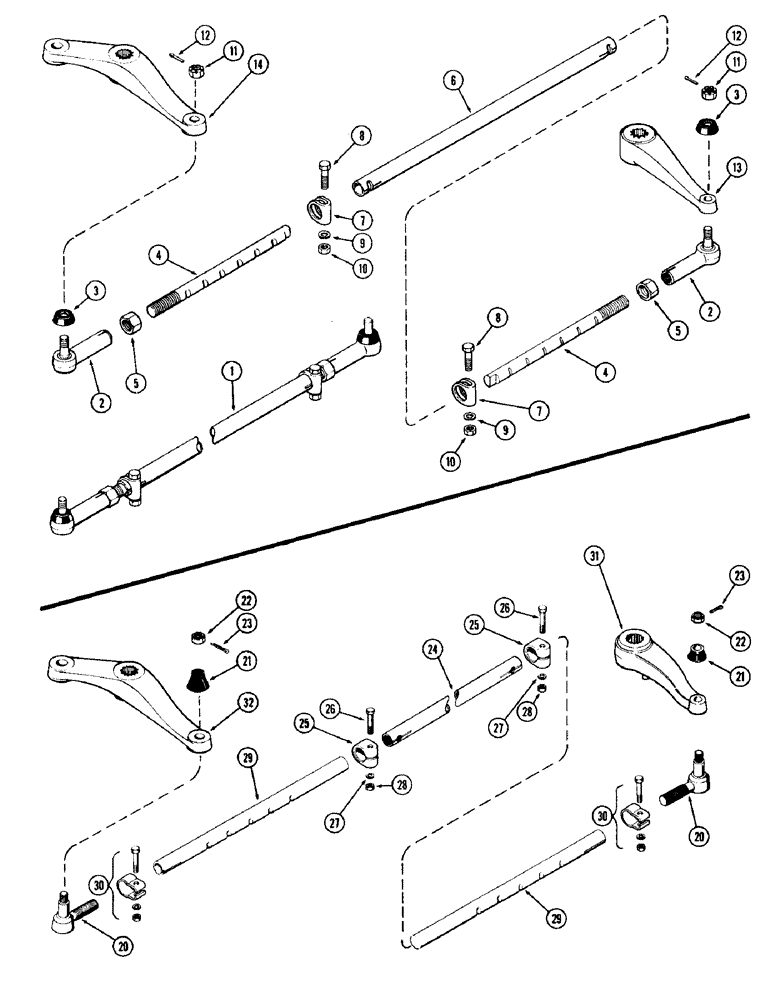

Запчасти Case IH 930-SERIES (086) - TIE RODS, GENERAL PURPOSE MODELS, 53" TO 73" AND 60" TO 88" TREAD, FIRST USED TRACTOR S/N 8339078 (06) - POWER TRAIN

1

NS

NOT SERVICED

TIE ROD ASSY. - (53" to 73" tread) (Order components)

1шт.

1

NS

NOT SERVICED

TIE ROD ASSY. - (60" to 88" tread) (Order components), Includes Ref: 2 - 14

1шт.

2

A41520

END

- tie rod

2шт.

3

A41509

SEAL

- tie rod end brg. (rubber)

2шт.

4

A41524

ROD

- adjusting (53" to 73" tread) (15-3/4" long w/6 notches)

2шт.

4

A41522

ROD

- adjusting (60" to 88" tread) (19-3/4" long w/8 notches)

2шт.

5

A41511

NUT

- lock, tie rod end

2шт.

6

A41523

TUBE

- tie rod (28-13/16" long) (53" to 73" thread)

1шт.

6

A41521

TUBE

- tie rod (35-13/16" long) 960" to 88" tread)

1шт.

7

A41561

CLAMP

- tie rod

2шт.

8

114-411

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- clamp (1/2 x 2-1/4" N.F. hex.)

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-545

NUT,1/2"-20, G8

2шт.

11

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod end to arm (9/16" N.F. hex., sltd.)

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

A57279

ARM

- steering, left hand

1шт.

14

A57278

ARM

- steering, right hand

1шт.

20

A28419

END ASSY.

- cross rod, 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078, Includes Ref: 21 nad 22

2шт.

21

G46043

COVER

SEAL - dust (rubber), 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078

1шт.

22

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16" N.F. hex. sltd.), 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078

1шт.

23

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , 48" to 73' & 53" to 82" tread, used prior to trac. S/N 8339078 1/8" x 1"

3шт.

24

A24657

TUBE

- cross rod (48" to 73" tread) (29-1/2" long), used prior to trac. ser. no. 8339078

1шт.

24

A24669

TUBE

- cross rod (53" to 82" tread) (34-1/2" long), used prior to trac. ser. no. 8339078

1шт.

25

A20421

CLAMP

- tube, 48" to 73" & 53' to 82" tread, used prior to trac. ser. no. 8339078

2шт.

26

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

Clamp, 48" to 73" & 53" to 82" tread, used prior to tractor S/N 8339078 Hex, 7/16"-14 x 2 1/4", G5

2шт.

27

92-7

LOCK WASHER,7/16"

48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078 7/16"

2шт.

28

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex.), 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078

2шт.

29

A24656

ROD

- cross (48" to 73") (17-3/4" long, solid), tread, used prior to trac. ser. no 8339078

2шт.

29

A24668

TIE-ROD

ROD - cross (53" to 82") (20-1/4" long, solid), tread, used prior to trac. ser. no. 8339078

2шт.

30

A27080

CLAMP

ASSY. - cross rod, 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078

2шт.

31

A24653

ARM - steering, left hand, 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078

1шт.

32

A34798

ARM

- steering, right hand (Replaces A24652), 48" to 73" & 53" to 82" tread, used prior to trac. ser. no. 8339078

1шт.
