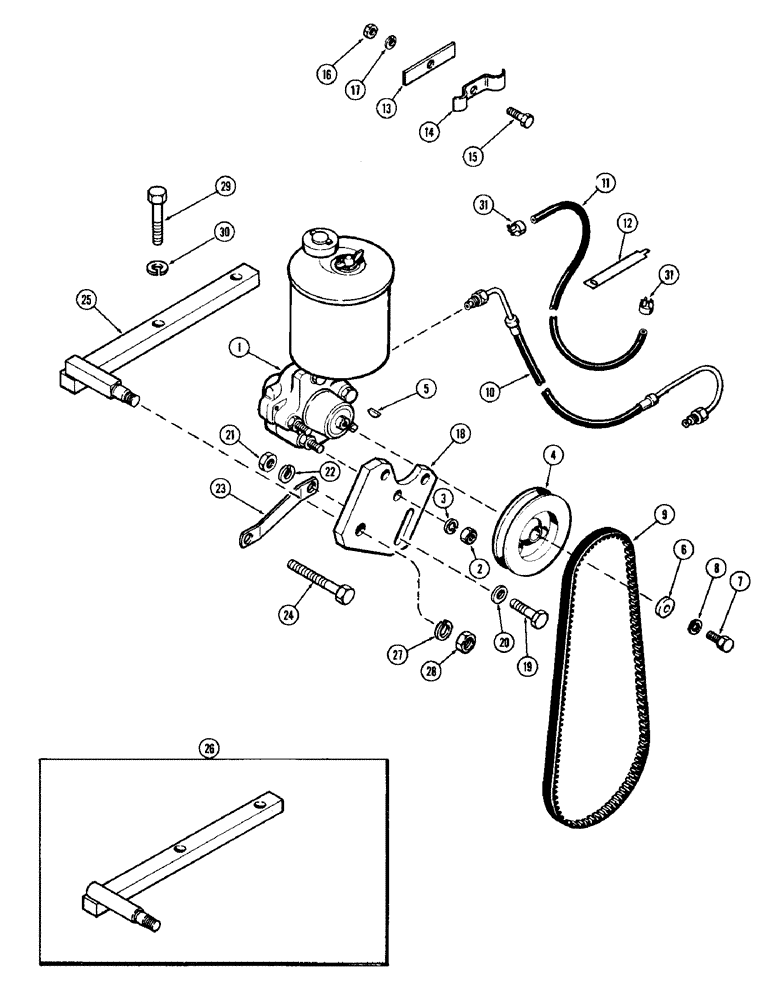

Запчасти Case IH 930-SERIES (082) - POWER STEERING PUMP MOUNTING (05) - STEERING

1

A57914

PUMP ASSY. - power steering (See Fig. 83A)

1шт.

Used Western models starting with tractor Ser. No. 8343120

1шт.

1

A57439

PUMP ASSY. - power steering (See Fig. 83A)

1шт.

Used Western models with tractor Ser. No. 8325442 to 8343120. Used all G.P. models starting with tractor Ser. No. 8325442

1шт.

1

A33059

PUMP ASSY. - power steering (See Fig. 83A) (Use A57439 or A57914)

1шт.

Used all G.P. & Western models prior to Tractor Ser. No. 8325442

1шт.

2

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.C. hex.) (pump stud)

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

A8186

PULLEY

- pump drive

1шт.

5

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley to pump #3, 1/8" x 1/2"

1шт.

6

A34092

WASHER

- ret., pulley (11/32 x 1 x 3/16")

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

A22766

BELT,30.00" L

Pump Drive 30.00" L

1шт.

10

A23347

HOSE

- pressure, Serial Range: pump-valve

1шт.

11

A23348

HOSE

- return, Serial Range: valve-pump

1шт.

12

A22926

CLAMP

- hose

1шт.

13

A23349

BRACKET - hose clamp

1шт.

14

A23350

CLAMP -, Serial Range: hose-bracket

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

16

25-104

NUT,1/4"-20, G5

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

A21736

PLATE - pump mounting

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

20

A23264

WASHER - adjusting strap bolt

1шт.

21

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

A21740

STRAP - pump adjusting

1шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.)

1шт.

25

A57792

STRAP

SUPPORT - pump mounting, w/square pin

1шт.

26

A23344

STRAP

SUPPORT - pump mounting, w/round pin

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- pivot stud, (3/8" N.F. hex.)

1шт.

29

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

30

92-7

LOCK WASHER,7/16"

2шт.

31

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - return hose to pump

1шт.
