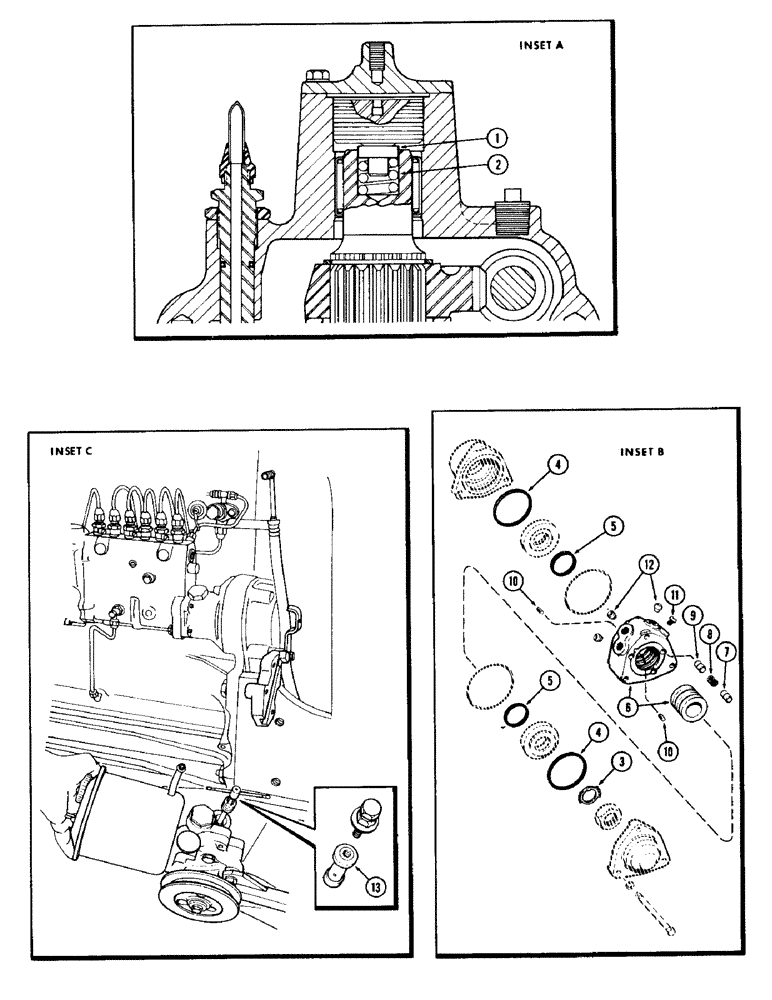

Запчасти Case IH 930-SERIES (081C) - STEERING GEAR STABILITY KIT, WESTERN MODELS, USED WITH A34623 STEERING GEAR ONLY (05) - STEERING

A41809

KIT

STABILITY KIT - power steering gear, Includes Ref: 1 - 13

1шт.

1

A57912

SEAT - spring, spindle, upper (See inset A)

1шт.

2

A34113

SPRING

- tenison, spindle, upper (See inset A)

1шт.

3

A8317

LOCK ASSY

LOCK - wormshaft nut (See inset B)

1шт.

4

A57057

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

"O" RING - thrust brg. (2-3/16 x 2-3/8 x 3/32") (See inset B)

2шт.

5

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

"O" RING - thrust brg. (1-1/4 x 1-7/16 x 3/32") (See inset B)

2шт.

6

A57597

VALVE ASSY. - (See inset B), Includes Ref: 7 - 12

1шт.

7

A33064

PLUNGER - valve centering (drilled)

3шт.

8

A33065

SPRING

- valve centering

3шт.

9

A9475

PLUNGER

- valve centering (solid)

3шт.

10

A33066

ORIFICE - dampening

2шт.

11

A9474

VALVE

CHECK

1шт.

12

A15233

SEAT

- power str. lines

3шт.

13

A41810

ORIFICE

- tube seat (in pump) (See inset C)

1шт.
